The TE Connectivity LTE global world band combination antenna is a 5G FR1 which provides omnidirectional coverage. It has high efficiency, low profile on board SMD PCB antenna. It covers wideband range for CBRS and 5G Midband without matching circuit. Its bandwidth and performance is based on ground plane size or design.
Suggested minimum ground plane length from antenna feed is 150mm
Available in tape and reel packaging for automatic mounting
RoHS compliant
Road vehicle compliant and REACH compliant
Available in tape and reel packaging for automatic mounting
RoHS compliant
Road vehicle compliant and REACH compliant

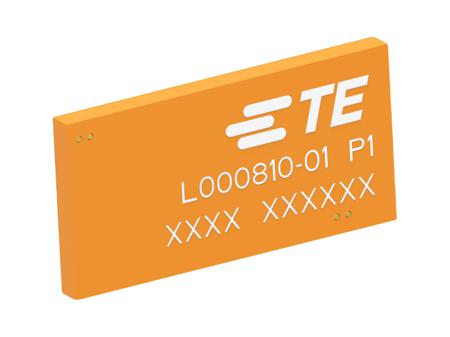

L000810-01 Internal Chip SMT Antenna
Manufacturer:
TE ConnectivityManufacturer Part No:
L000810-01
Enrgtech Part No:
ET28371901
Warranty:
Manufacturer
£ 1.80
Checking for live stock
Internal/External:
Internal
Frequency Range:
2496-5000 MHz
Maximum Operating Temperature:
+85°C
Physical Form:
Chip
Gain:
4.2dB
Minimum Operating Temperature:
-40°C
Antenna Internal Construction:
Low Profile
Series:
L000810
Dimensions:
20 x 1.61 x 10mm
Height:
1.61mm
Length:
20mm
Width:
10mm
