The TE Connectivity Chip antenna has a supporting GPS, Galileo, Beidou, NavIC and QZSS systems in the L1/E1/B1 and L5/E5/B2A bands. It has compact passive patch antenna with linear polarization. The on board SMD PCB antenna assembly and no matching circuits required.
Available in tape and reel packaging for automatic mounting
RoHS compliant
Road vehicle compliant and REACH compliant
RoHS compliant
Road vehicle compliant and REACH compliant

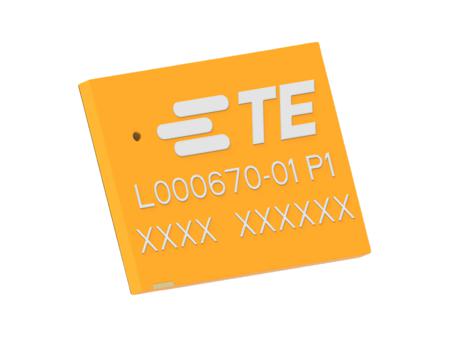

L000670-01 Internal Chip SMT Antenna, GNSS
Manufacturer:
TE ConnectivityManufacturer Part No:
L000670-01
Enrgtech Part No:
ET28371911
Warranty:
Manufacturer
£ 1.80
Checking for live stock
RF Protocols:
GNSS
Internal/External:
Internal
Frequency Range:
1560 → 1607 MHz
Maximum Operating Temperature:
+105°C
Physical Form:
Chip
Minimum Operating Temperature:
-40°C
Gain:
2.7dB
Series:
L000670
Dimensions:
14 x 1 x 10.75mm
Height:
1mm
Length:
14mm
Width:
10.75mm
