The TE Connectivity LTE global world band combination antenna is a 5G FR1 which provides omnidirectional coverage. It has high efficiency, low profile on board SMD PCB antenna. It covers wideband range for 3G, 4G and 5G FR1. Its bandwidth and performance is based on ground plane size or design.
Suggested minimum ground plane length from antenna feed is 150mm
Available in bag and box packaging for automatic mounting
RoHS compliant
Road vehicle compliant and REACH compliant
Evaluation board available for testing
Available in bag and box packaging for automatic mounting
RoHS compliant
Road vehicle compliant and REACH compliant
Evaluation board available for testing

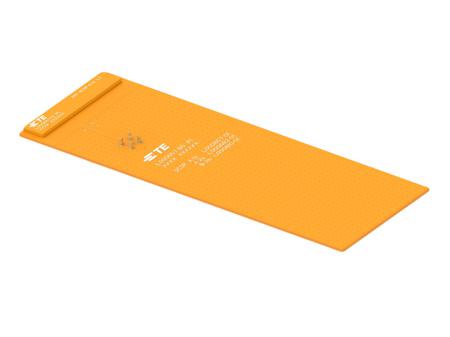

L000657-80 Internal Chip SMT Antenna, 5G (LTE)
Manufacturer:
TE ConnectivityManufacturer Part No:
L000657-80
Enrgtech Part No:
ET28371930
Warranty:
Manufacturer
£ 20.37
Checking for live stock
RF Protocols:
5G (LTE)
Internal/External:
Internal
Frequency Range:
617 – 5000 MHz
Maximum Operating Temperature:
+85°C
Physical Form:
Chip
Minimum Operating Temperature:
-40°C
Gain:
5.9dB
Antenna Internal Construction:
Low Profile
Series:
L000657
Dimensions:
50 x 1.61 x 10mm
Height:
1.61mm
Length:
50mm
