The TE Connectivity Chip antenna has a supporting GPS, Galileo, Beidou, NavIC and QZSS systems in the L1/E1/B1 and L5/E5/B2A bands. It has compact passive patch antenna with linear polarization. The on board SMD PCB antenna assembly and no matching circuits required.
Available in bag and box packaging for automatic mounting
RoHS compliant
Road vehicle compliant and REACH compliant
RoHS compliant
Road vehicle compliant and REACH compliant

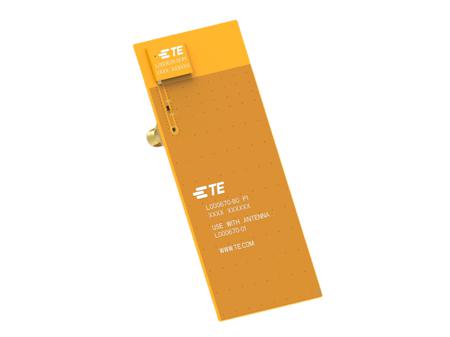

L000670-80 Internal Chip SMT Antenna, GNSS
Manufacturer:
TE ConnectivityManufacturer Part No:
L000670-80
Enrgtech Part No:
ET28371942
Warranty:
Manufacturer
£ 20.37
Checking for live stock
Internal/External:
Internal
RF Protocols:
GNSS
Frequency Range:
1560 → 1607 MHz
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-40°C
Gain:
2.7dB
Physical Form:
Chip
Series:
L000670
Dimensions:
41 x 2 x 90mm
Height:
2mm
Length:
41mm
Width:
90mm
