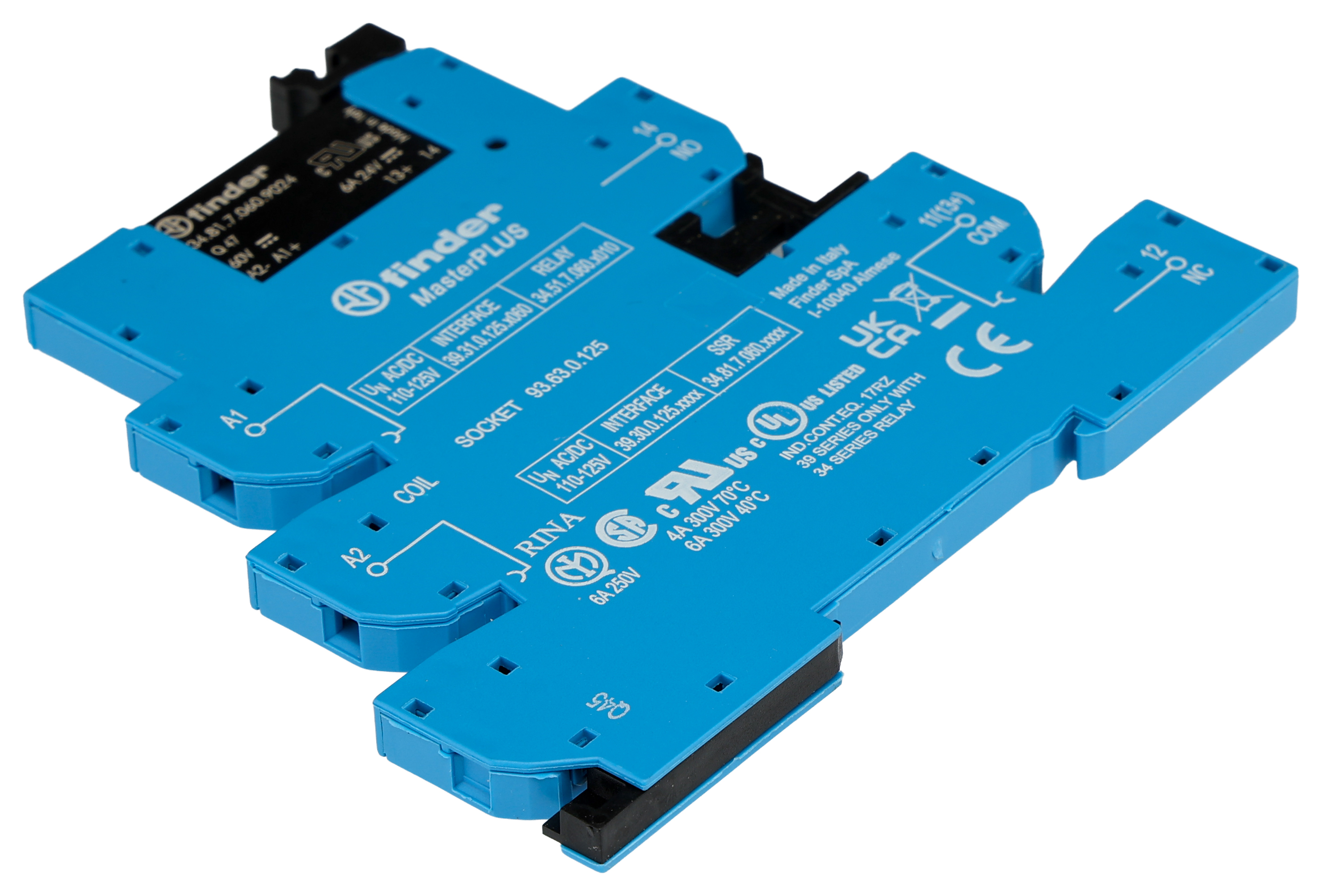

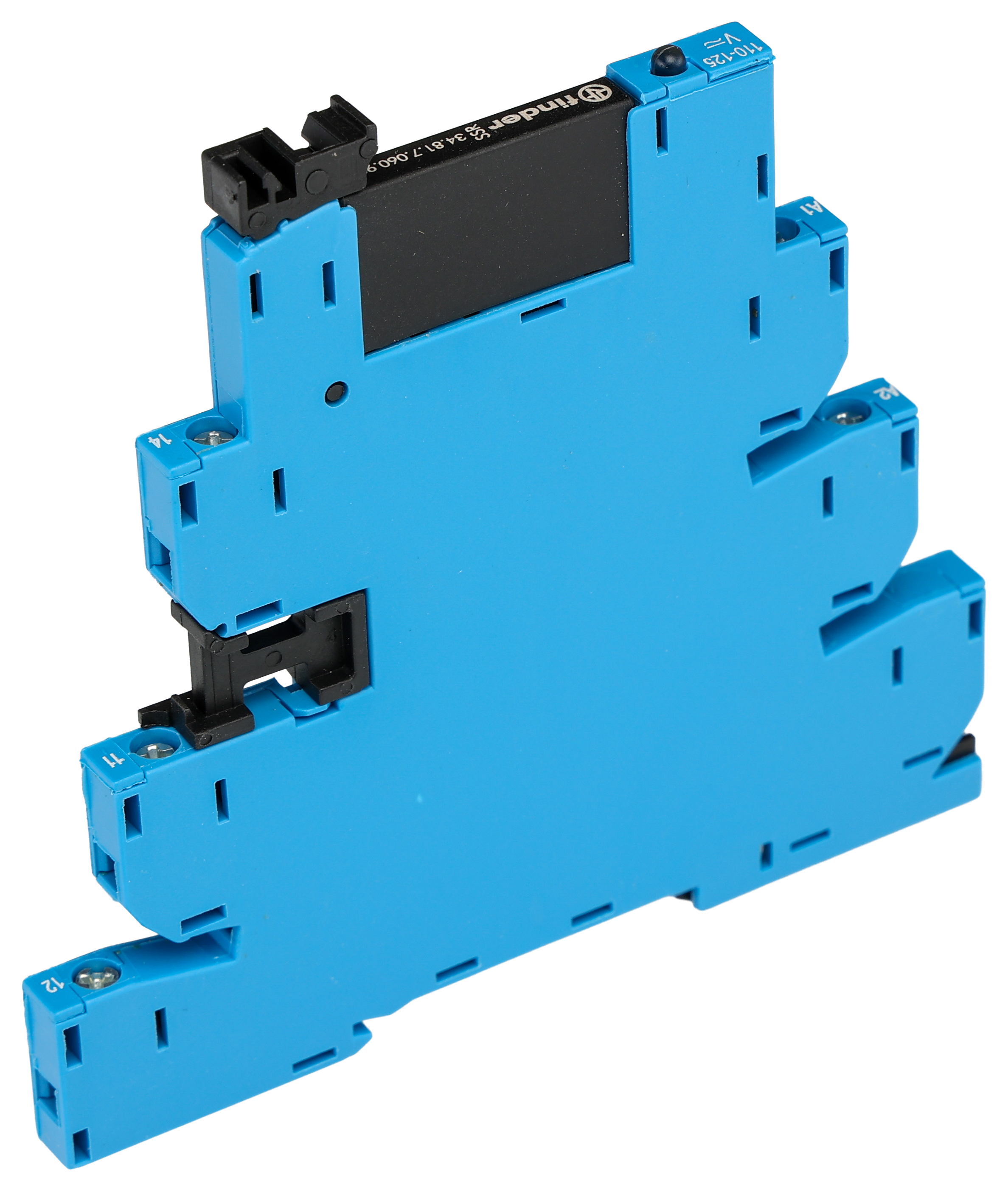

Series 39 Series Solid State Interface Relay, 133 V ac/dc Control, 6 A Load, DIN Rail Mount

Maximum Control Voltage:

133 V ac/dc

Maximum Load Current:

6 A

Mounting Type:

DIN Rail

Maximum Load Voltage:

24 V dc

Minimum Control Voltage:

88 V ac/dc

Control Voltage Range:

125 V ac/dc

Switching Type:

AC/DC

Contact Configuration:

SPST

Load Voltage Range:

1.5 → 24V dc

Minimum Load Voltage:

1.5 V dc

Terminal Type:

Screw

Minimum Load Current:

1 mA

Depth:

90.7mm

Length:

6.2mm

Series:

Series 39

Height:

94.3mm

Maximum Turn On Time:

0.6 ms

Off State Leakage Current:

0.001 mA

Maximum Operating Temperature:

+55°C

Dimensions:

85 x 6.2 x 87mm

Package Style:

Module

Minimum Operating Temperature:

-20°C

Operating Temperature Range:

-20 → +55°C

Manufacturer Part No.:

39.30.0.125.9024
