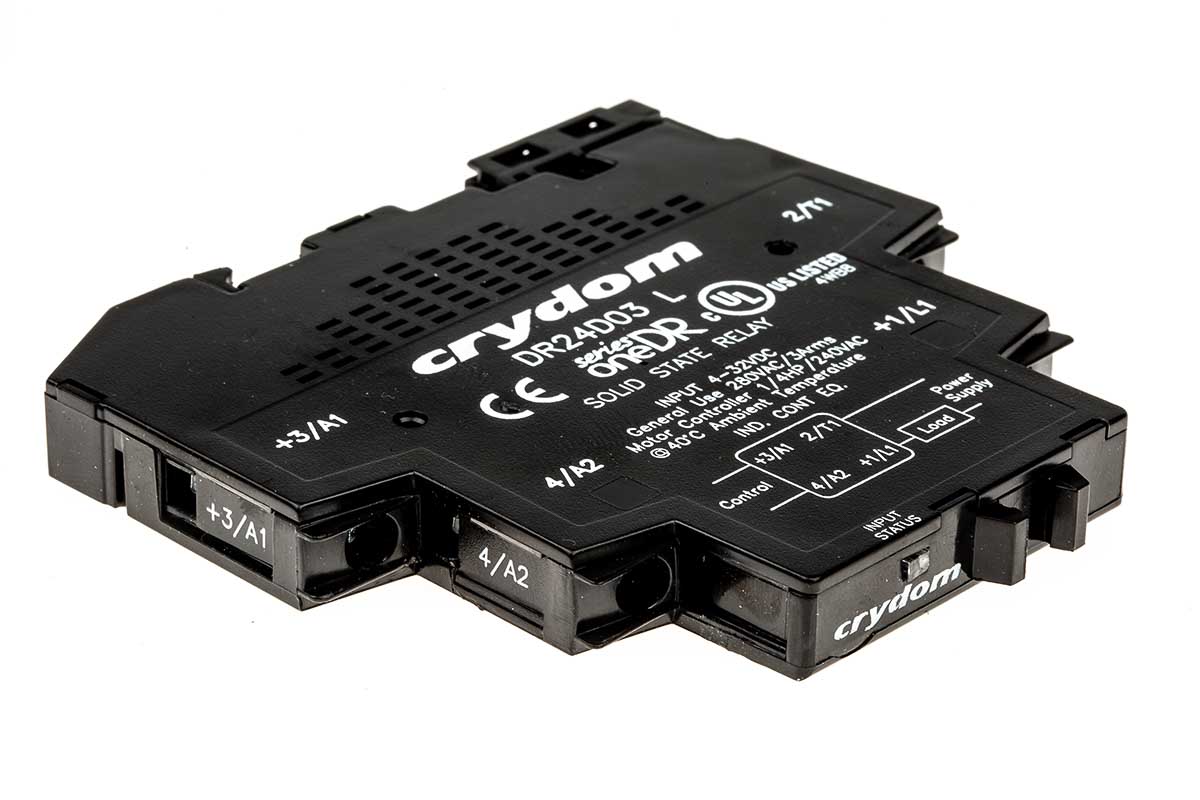

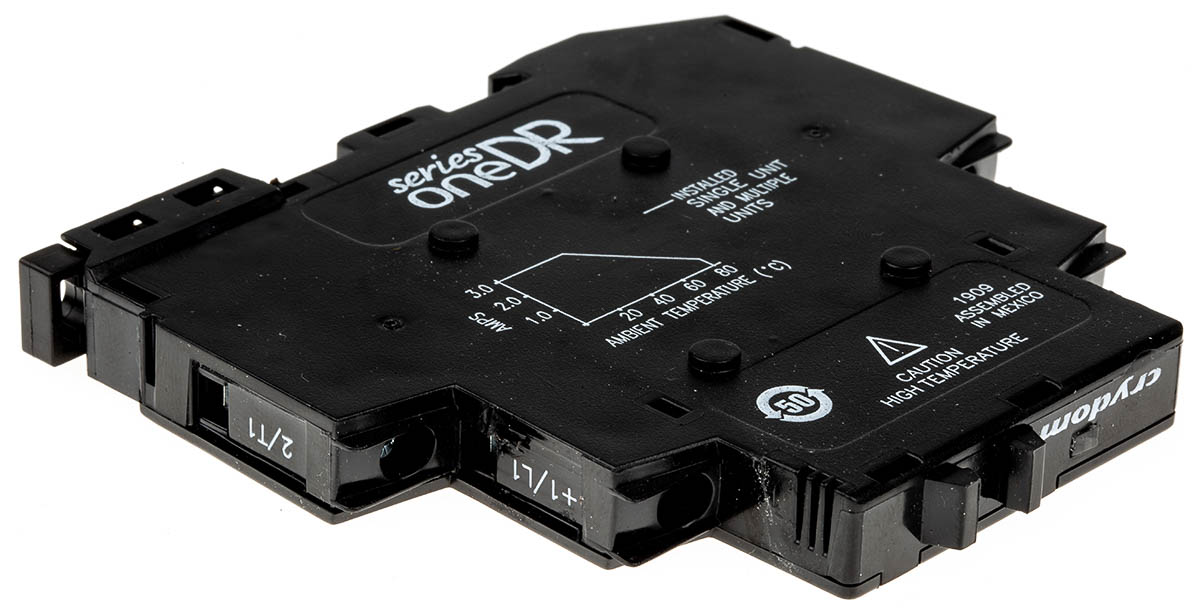

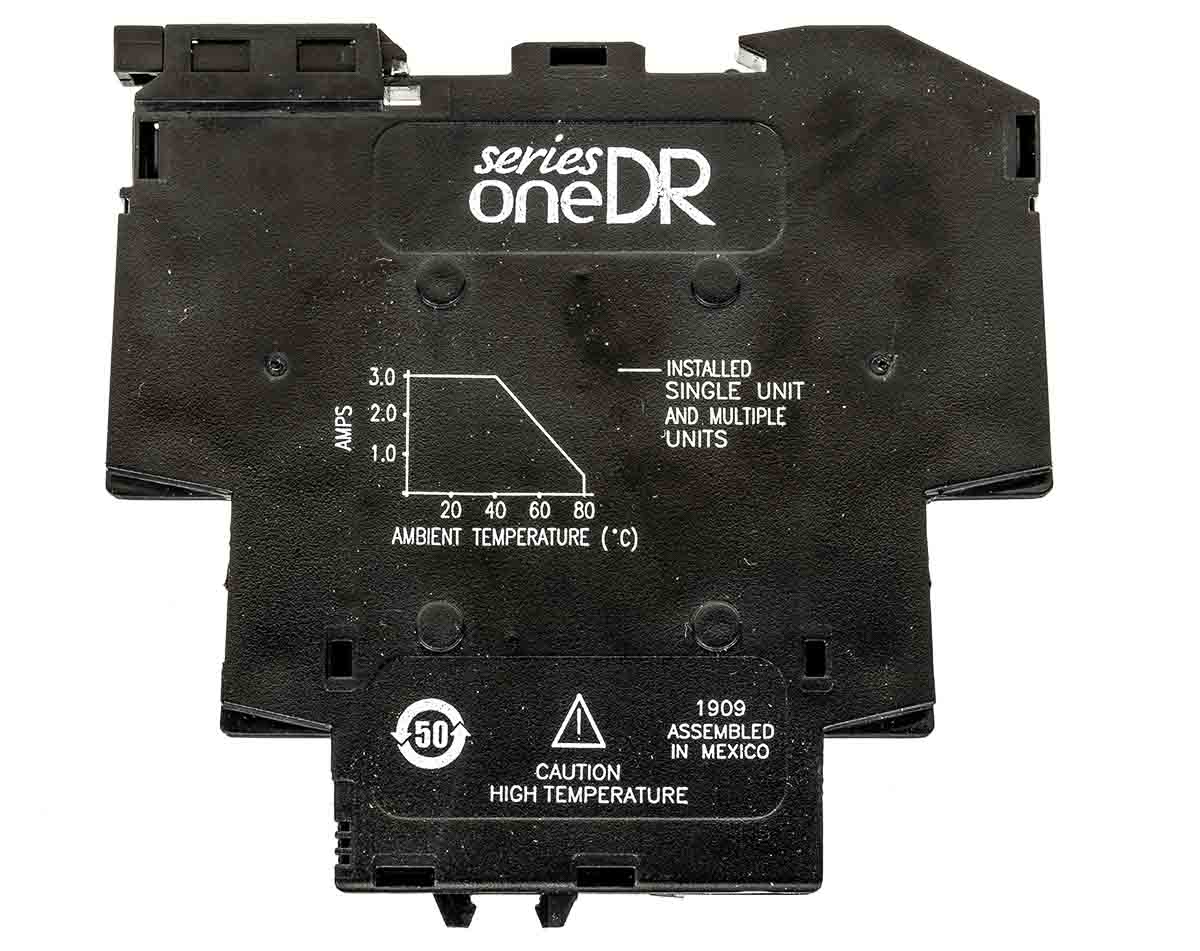

Sensata | Crydom Solid-State Interface Relay, 0.15 to 3A Rated Load Current, 24 to 280V AC Operating Voltage Range - SeriesOne DR Series - DR24D03 Use this solid-state interface relay from Sensata | Crydom to open and close an electrical circuit. By automatically interrupting the power supply in the event of a fault, it protects devices from damage caused by overcurrent and short circuits. The wide operating voltage range between 24 and 280V AC means it's compatible with a broad range of setups. You'll find a relay like this one used in applications such as lighting control systems, production lines and power distribution units. Features & Benefits • Compact dimensions of 87.6 (L) x 11 (W) x 83.7 mm (H) to add minimal bulk to your system
• Screw terminals for fast and straightforward setup
• Snaps onto a DIN rail for tool-free installation What's the operating temperature range of this device? This device has a wide operating temperature range between -30°C and +80°C, so you can safely use it in demanding environments. What's the benefit of a solid-state relay versus an electromechanical one? Unlike electromechanical relays, solid-state relays have no moving parts, so there's less chance of failure and a reduced need for maintenance.
