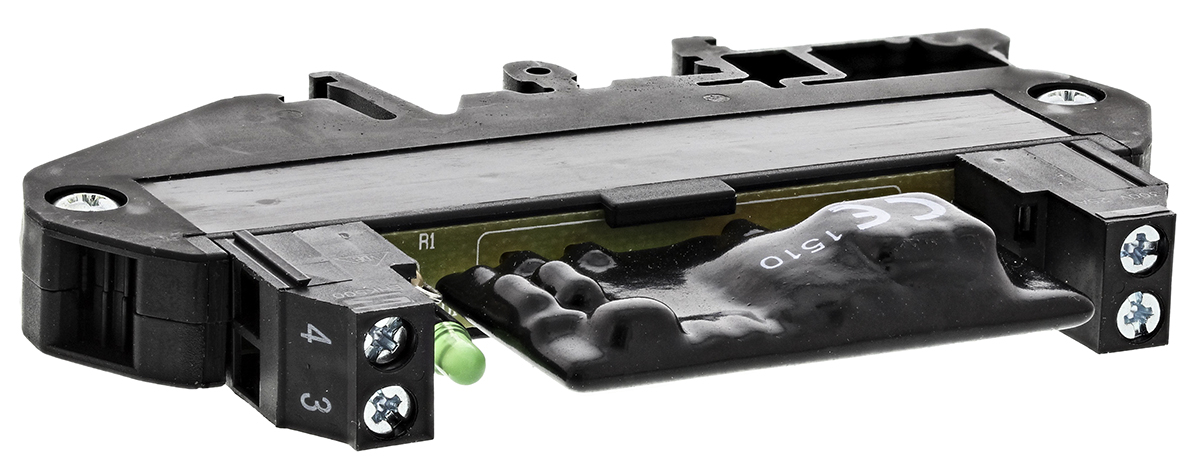

Sensata / Crydom DRA1-CMXE60D5 Sensata Crydom DRA1 CMX Series Solid State Interface Relay, 28 V dc Control, 5 A Load, DIN Rail Mount

Maximum Control Voltage:

28 V dc

Maximum Load Current:

5 A

Mounting Type:

DIN Rail

Maximum Load Voltage:

60 V dc

Minimum Control Voltage:

20 V dc

Control Voltage Range:

20 → 28 V dc

Switching Type:

DC

Load Voltage Range:

1 → 60V dc

Minimum Load Voltage:

1 V dc

Terminal Type:

Screw

Minimum Load Current:

0 A

Output Device:

AC; DC

Height:

61mm

Length:

89.6mm

Depth:

10mm

Series:

DRA1 CMX

Capacitance:

15pF

Minimum Operating Temperature:

-30°C

Maximum Operating Temperature:

+80°C

Maximum Turn On Time:

1ms

Special Features:

Cage Style Screw Terminals For Easy And Reliable Wire Connection,Fits Standard 35mm DIN-RAIL

Dimensions:

89.6 x 10 x 61mm

Off State Leakage Current:

100 μA

Operating Temperature Range:

-30 → +80°C

Manufacturer Part No.:

DRA1-CMXE60D5
