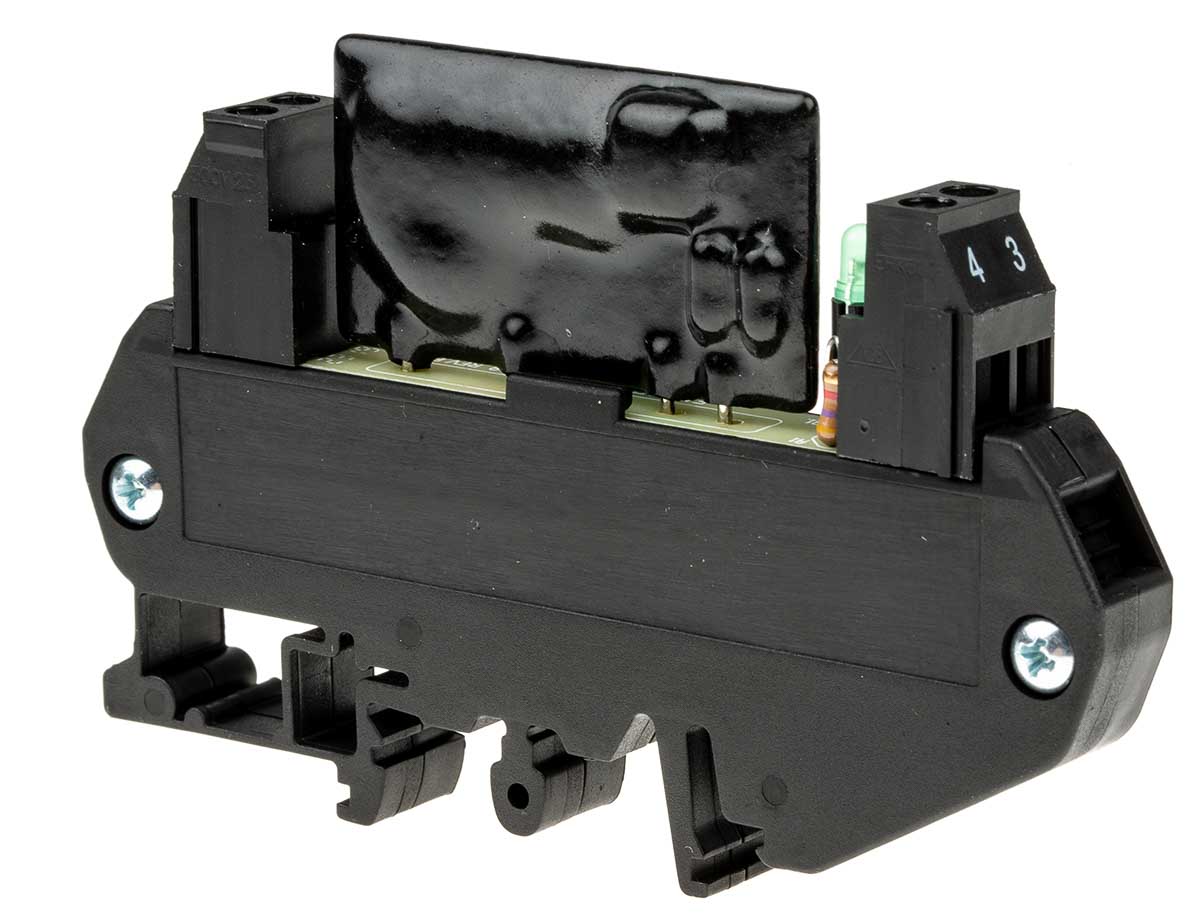

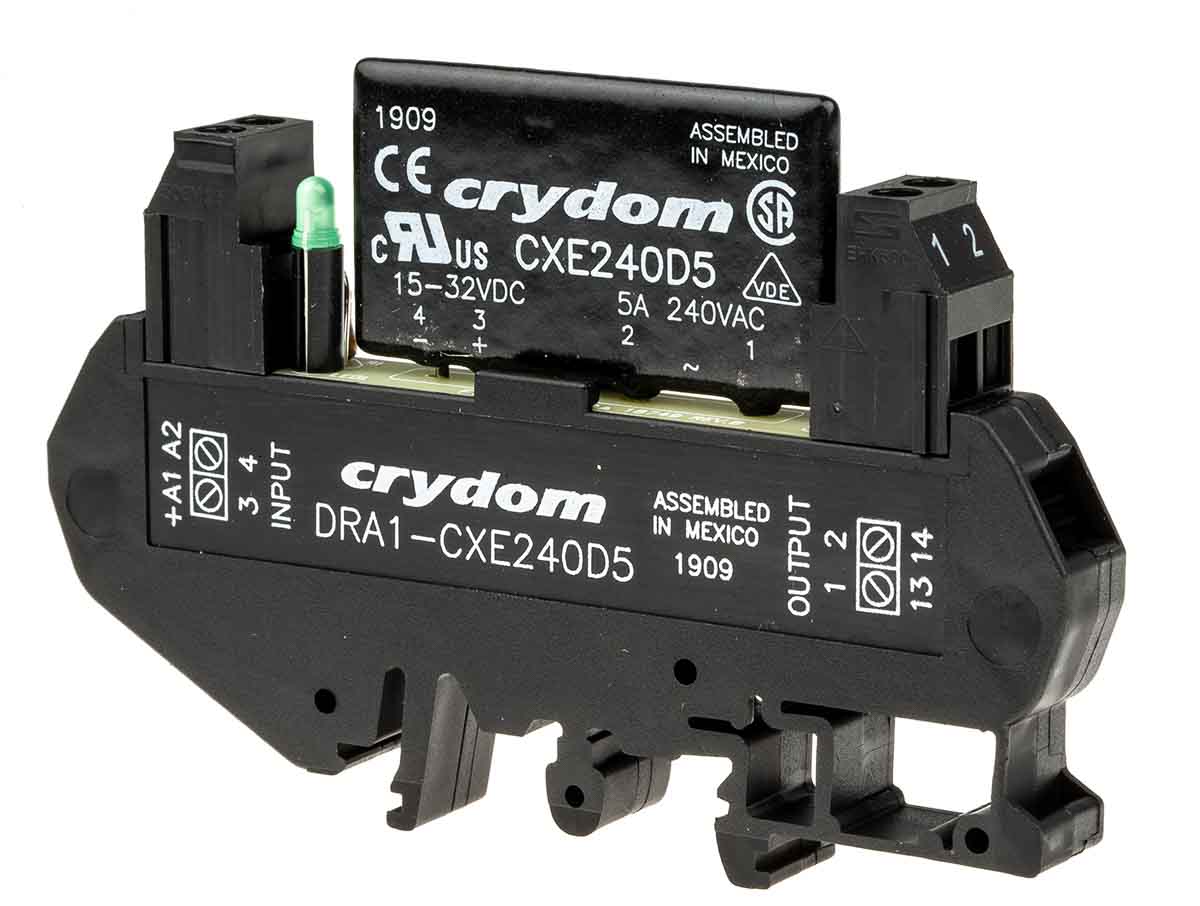

Sensata | Crydom Solid-State Interface Relay, 4000V Dielectric Strength, 15 to 32V DC Control Voltage Range - DRA1-CX Series - DRA1-CXE240D5 Turn electrical loads on or off using this solid-state interface relay from Sensata | Crydom. The device has compact dimensions of 89.6 (L) x 10 (W) x 61mm (H), so it's a good option for setups where space is limited. It has a broad operating voltage range between 12 and 280V AC, so it's suitable for use in low-power applications. A zero-cross switching design means it will generate minimal noise during start-up. As it has a dielectric strength of 4000V, this component is properly insulated to protect personnel against electric shocks. Use this device in lighting and heating systems. Features & Benefits • Cage-style screw terminals for easy wiring
• LED indicator for simple status monitoring
• Broad operating temperature range between -30°C and +80°C for use in harsh conditions
• Light weight of 28.6g to place minimal strain on your equipment
• Designed for DIN rail mounting for ease of installation What type of housing does this component have? The housing of this component is made of thermally conductive epoxy, making it resistant to heat and providing a high level of insulation.
