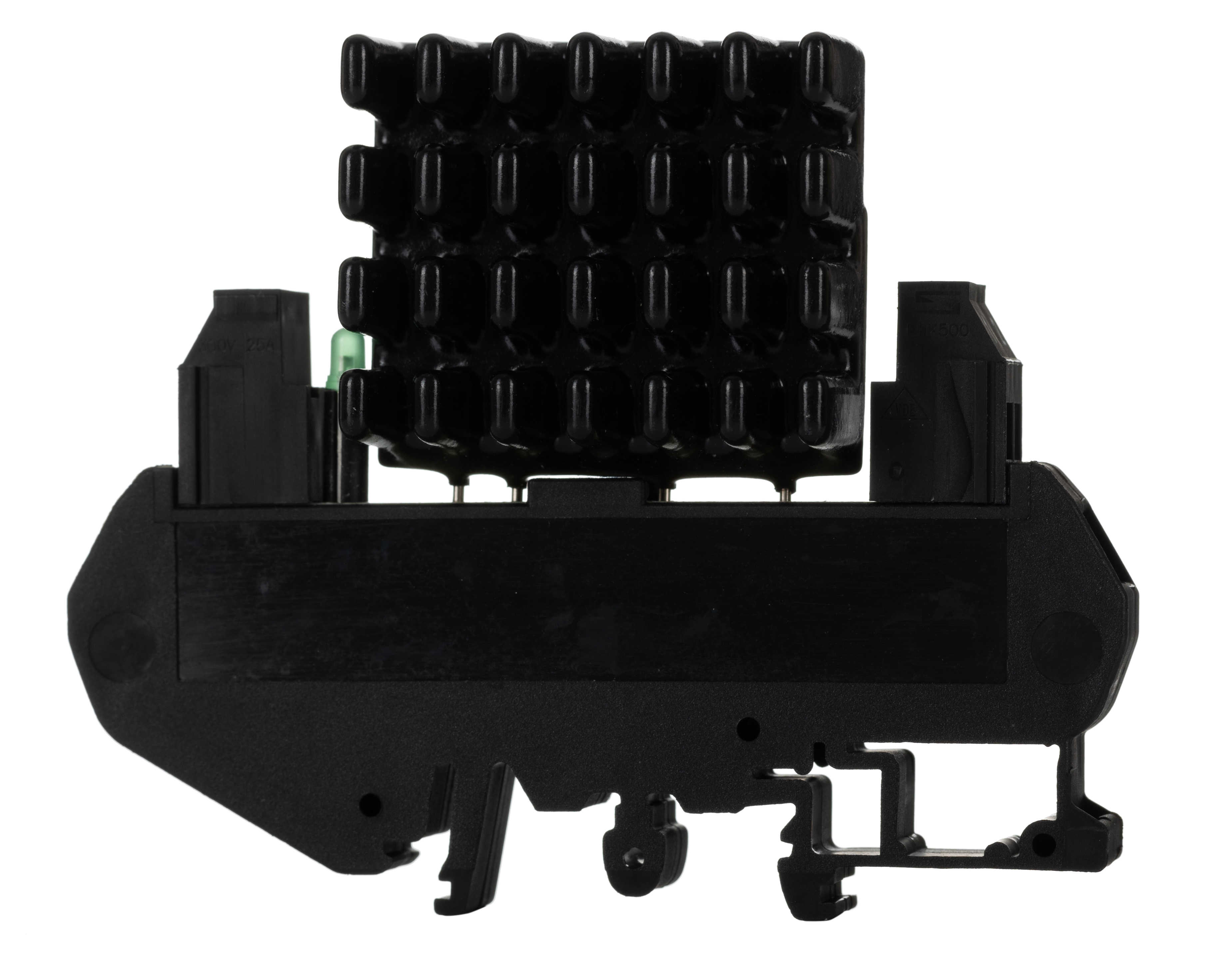

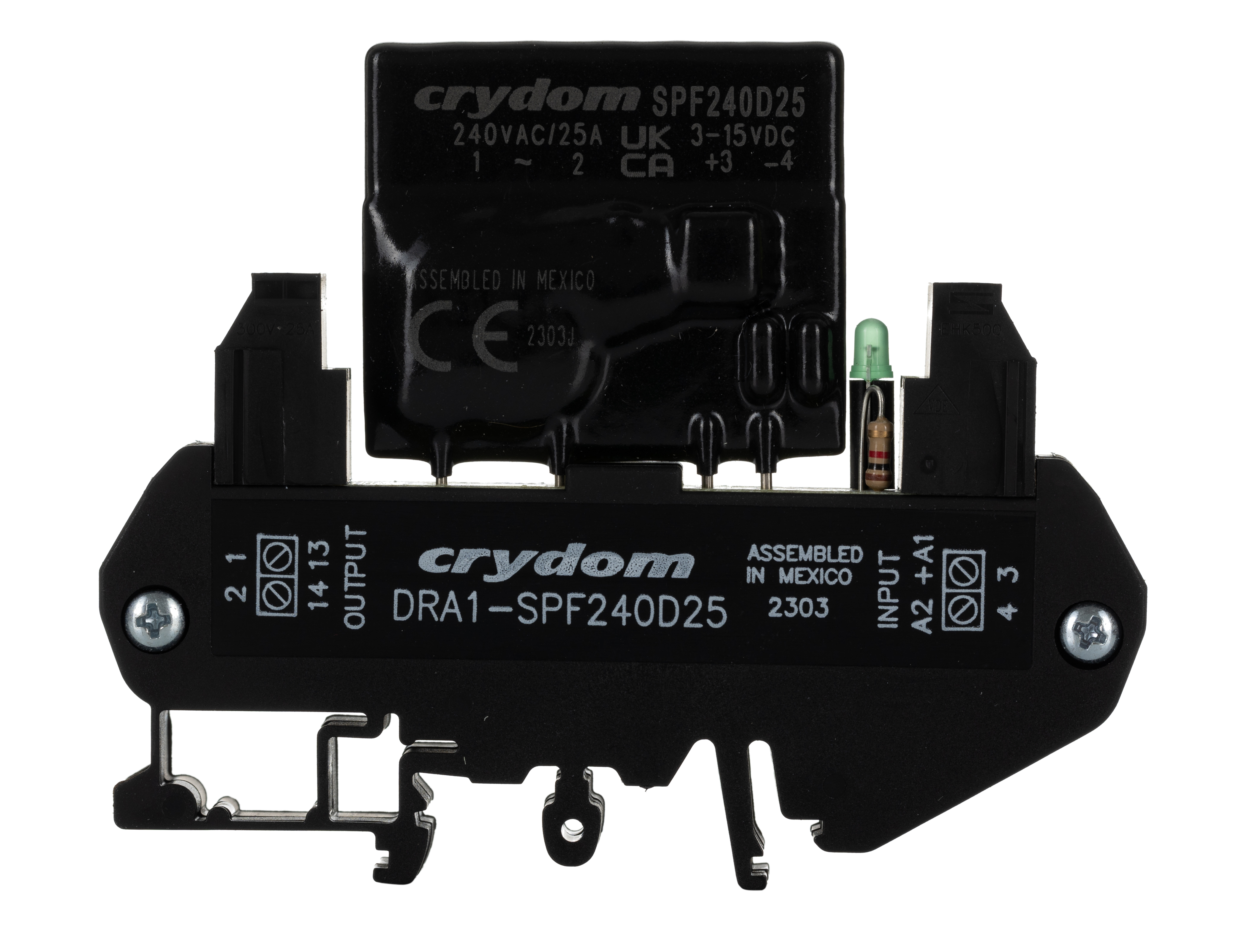

Sensata | Crydom Solid-State Interface Relay, SPST Contact Configuration, Screw Terminals - DRA1-SPF Series - DRA1-SPF240D25 If you're looking for a long-lasting switching solution that'll slot right into your setup, pick this solid-state interface relay from Sensata | Crydom. Its compact dimensions of 89.6 (L) x 22.9 (W) x 69.9mm (H) mean it won't take up much space. As it switches without any moving parts, this unit is resistant to wear and lasts longer than an electromechanical relay. You can mount it on a DIN rail for installation in a snap. You'll find a relay like this one used in HVAC systems, lighting control and domestic wiring. Features & Benefits • Wide operating voltage range of 12 to 280V AC for versatility
• Cage-style screw terminals for a secure electrical connection
• Safe for use in harsh environments, thanks to its broad operating temperature range between -30°C and +80°C
• Maximum turn-on and turn-off time of half a cycle for lightning-fast switching What's the off-state leakage current of this solid-state interface relay? The relay has a low off-state leakage current of just 0.1mArms, keeping power usage and heat build-up to a minimum.
