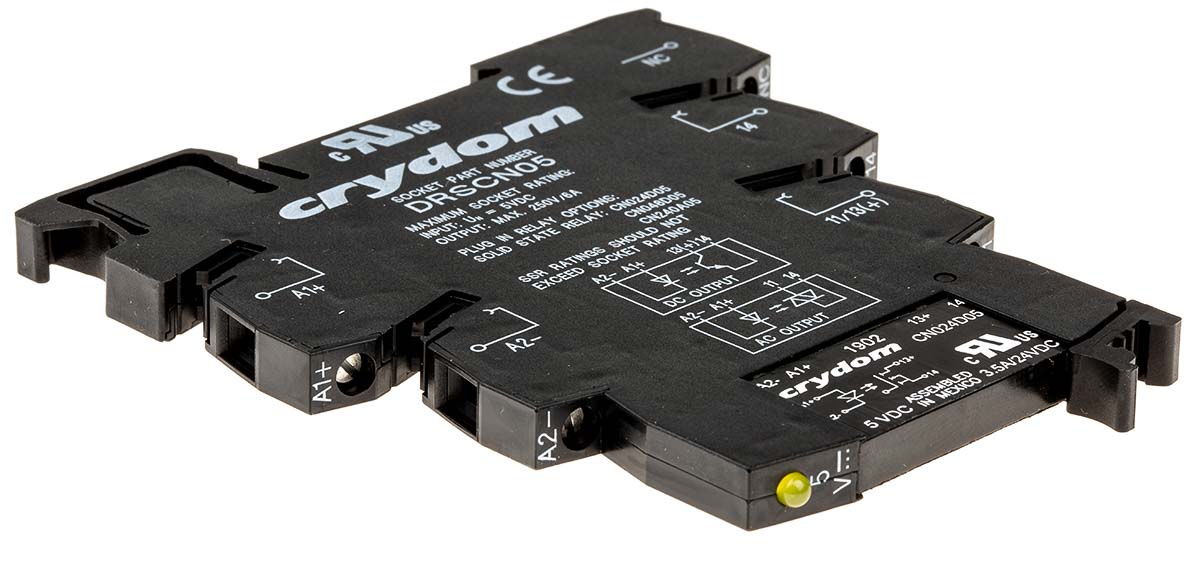

Sensata | Crydom Solid-State Interface Relay, Zero-Cross Switching Type, 0.001mA Off-State Leakage Current - DRACN Series - DRA-CN024D05 Zero in on high-speed switching with this solid-state interface relay from Sensata | Crydom. As it keeps the input and output circuits galvanically isolated from each other, it's a reliable choice for control and protection systems. Thanks to its compact dimensions of just 80 (L) x 6.1 (W) x 92.6mm (H), this miniature marvel will squeeze into even the smallest spaces. A wide operating temperature range of -25°C to +60°C means it can stand up to harsh operating conditions. You'll find relays like this one used in low to medium-power heating, lighting or motion control applications. Features & Benefits • Mechanical durability of 100,000 cycles for a long service life
• Lightning-fast turn-on time of 120μs for reliable switching
• Light weight of 31g to place minimal strain on your system
• Self-extinguishing housing for safety in the event of a fire What's zero-cross switching? Zero-cross switching means the relay turns on at a load voltage of approximately 0V. This helps to keep noise to a minimum for more reliable switching.
