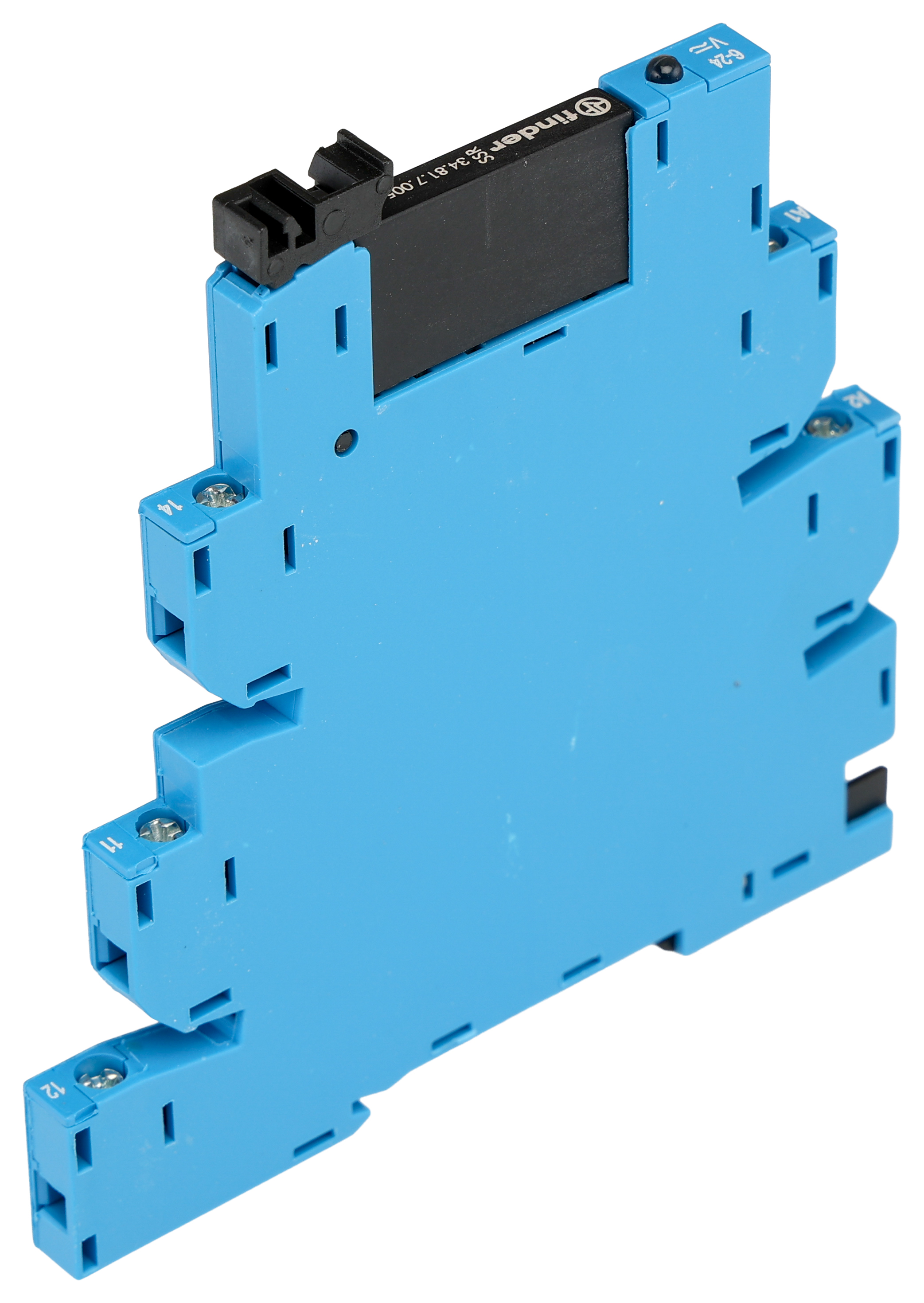

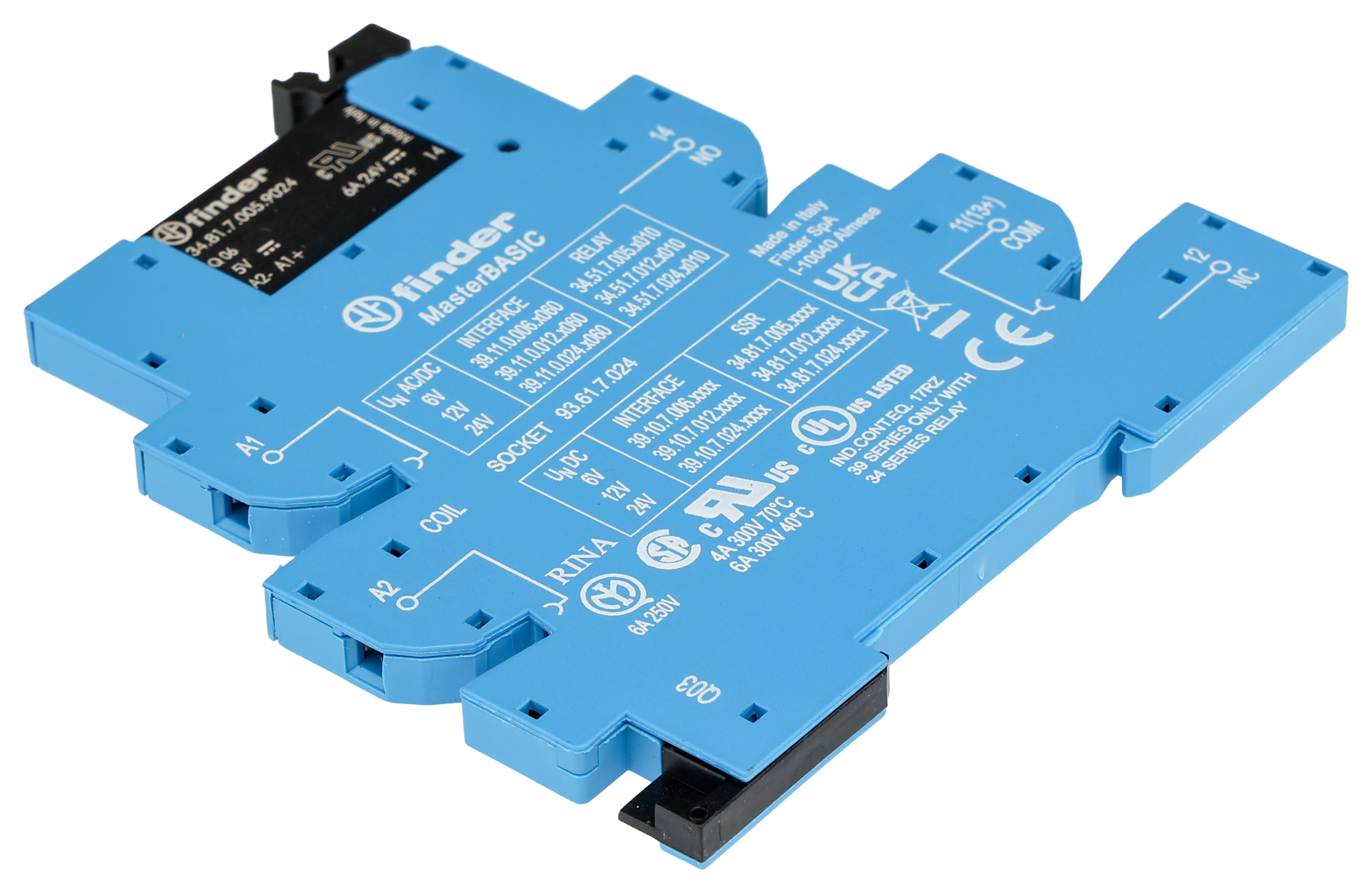

Series 39 Series Solid State Interface Relay, 6.6 V Control, 6 A Load, DIN Rail Mount

Maximum Control Voltage:

6.6 V

Maximum Load Current:

6 A

Mounting Type:

DIN Rail

Maximum Load Voltage:

24 V dc

Minimum Control Voltage:

4.8 V dc

Control Voltage Range:

6 V dc

Switching Type:

DC

Contact Configuration:

SPST

Load Voltage Range:

1.5 → 24V dc

Minimum Load Voltage:

1.5 V dc

Terminal Type:

Screw

Length:

6.2mm

Depth:

90.7mm

Series:

Series 39

Minimum Load Current:

1 mA

Height:

87mm

Dimensions:

85 x 6.2 x 87mm

Minimum Operating Temperature:

-40°C

Package Style:

Module

Maximum Operating Temperature:

+70°C

Off State Leakage Current:

0.001 mA

Maximum Turn On Time:

0.6 ms

Operating Temperature Range:

-20 → +55°C

Manufacturer Part No.:

39.10.7.006.9024
