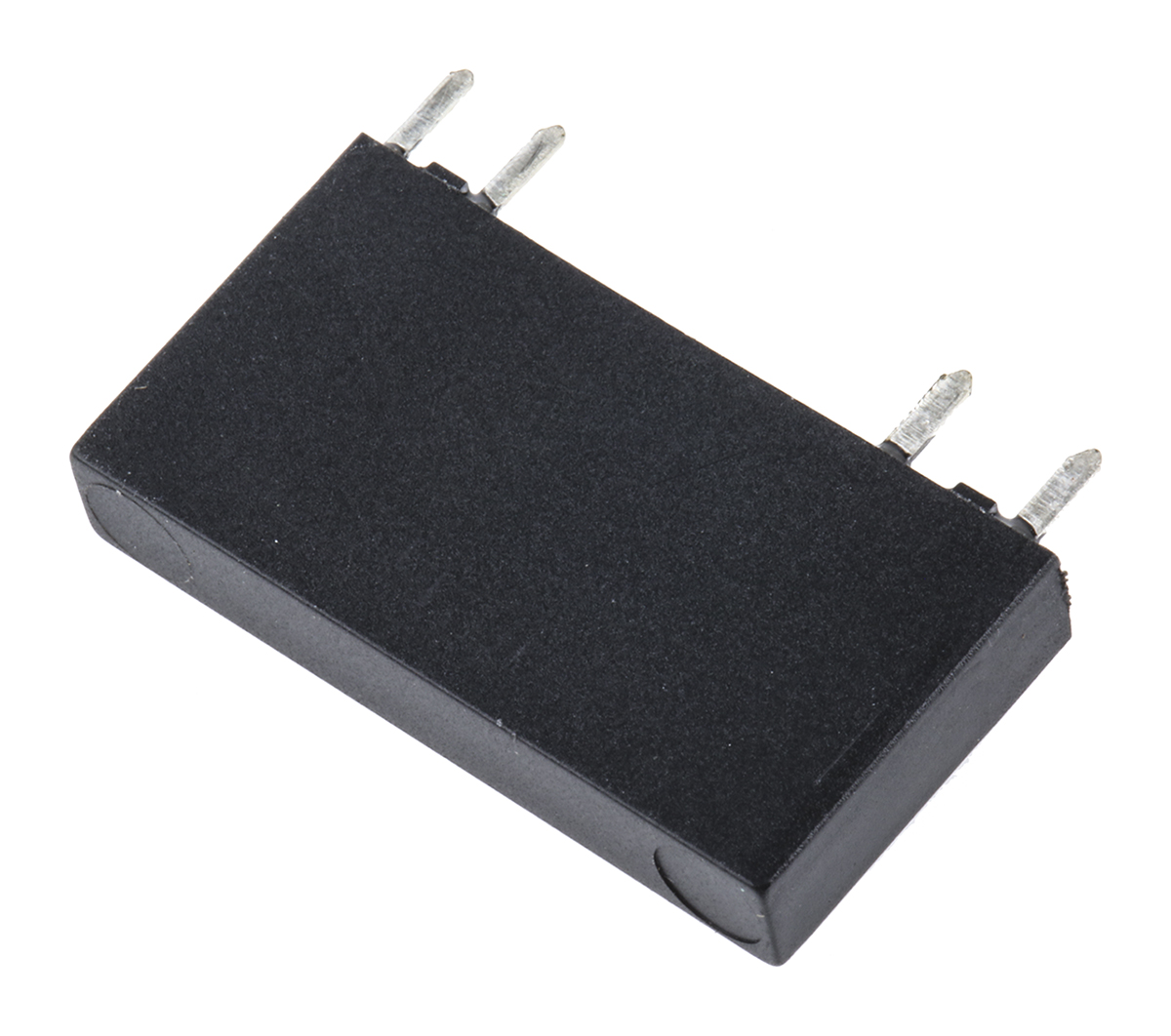

34 Series Solid State Relay, 2 A Load, PCB Mount, 240 V ac Load, 17 V Control

Maximum Load Current:

2 A

Mounting Type:

PCB Mount

Maximum Load Voltage:

240 V ac

Minimum Load Voltage:

12 V ac

Maximum Control Voltage:

17 V

Minimum Control Voltage:

8 V

Switching Type:

Zero Cross

Control Voltage Range:

8 → 17 V

Minimum Load Current:

22 mA

Contact Configuration:

SPST

Terminal Type:

Through Hole

Package Style:

SIP4

Load Voltage Range:

12 → 240V ac

Series:

34

Maximum Turn On Time:

12ms

Dimensions:

28 x 15 x 5mm

Maximum Operating Temperature:

+60°C

Depth:

15mm

Minimum Operating Temperature:

-20°C

Special Features:

Ultra Slim

Length:

28mm

Off State Leakage Current:

1.5 mA

Height:

5mm

Operating Temperature Range:

-20 → +60°C

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=7083282&DisplayLogo=False
