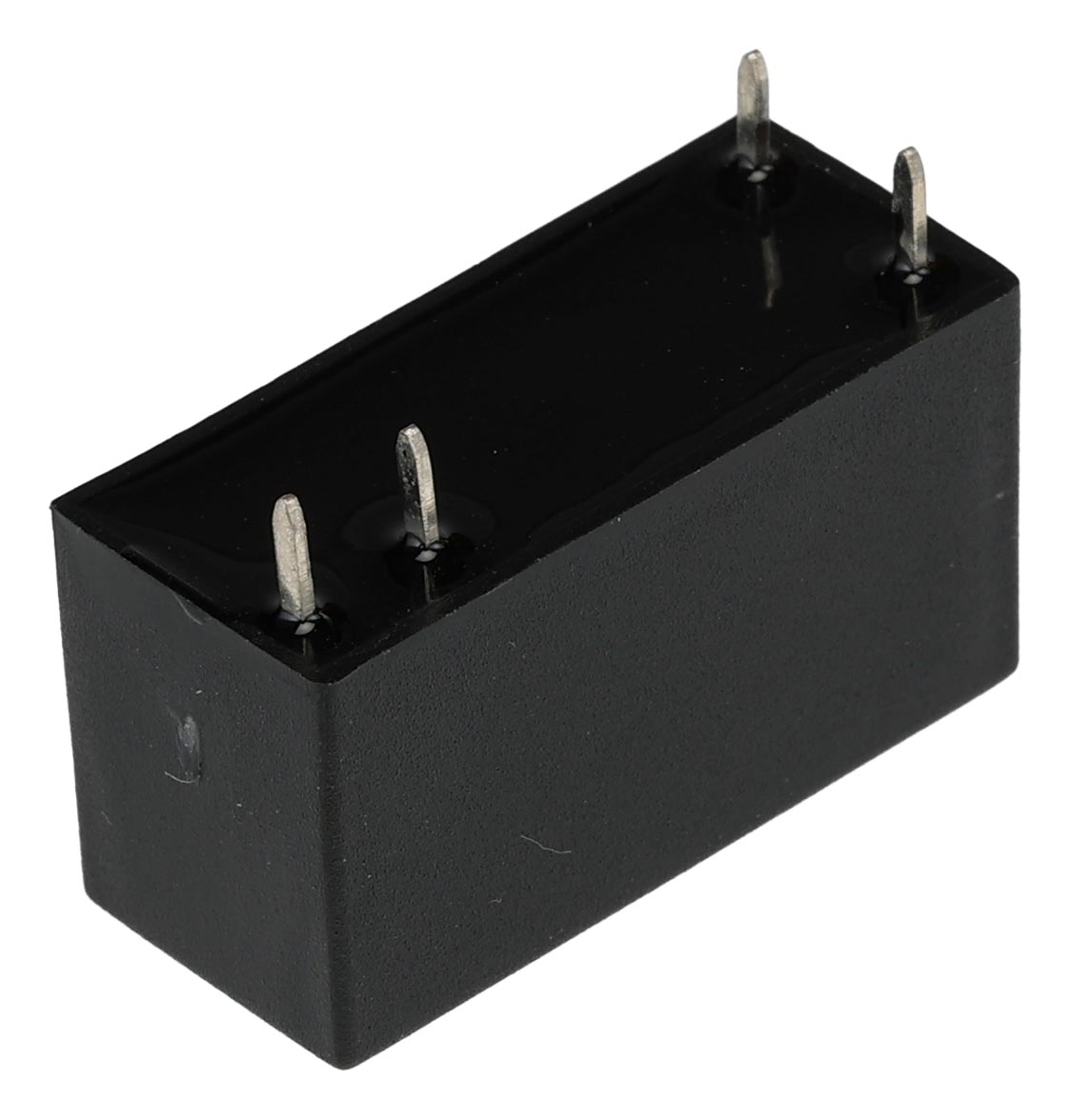

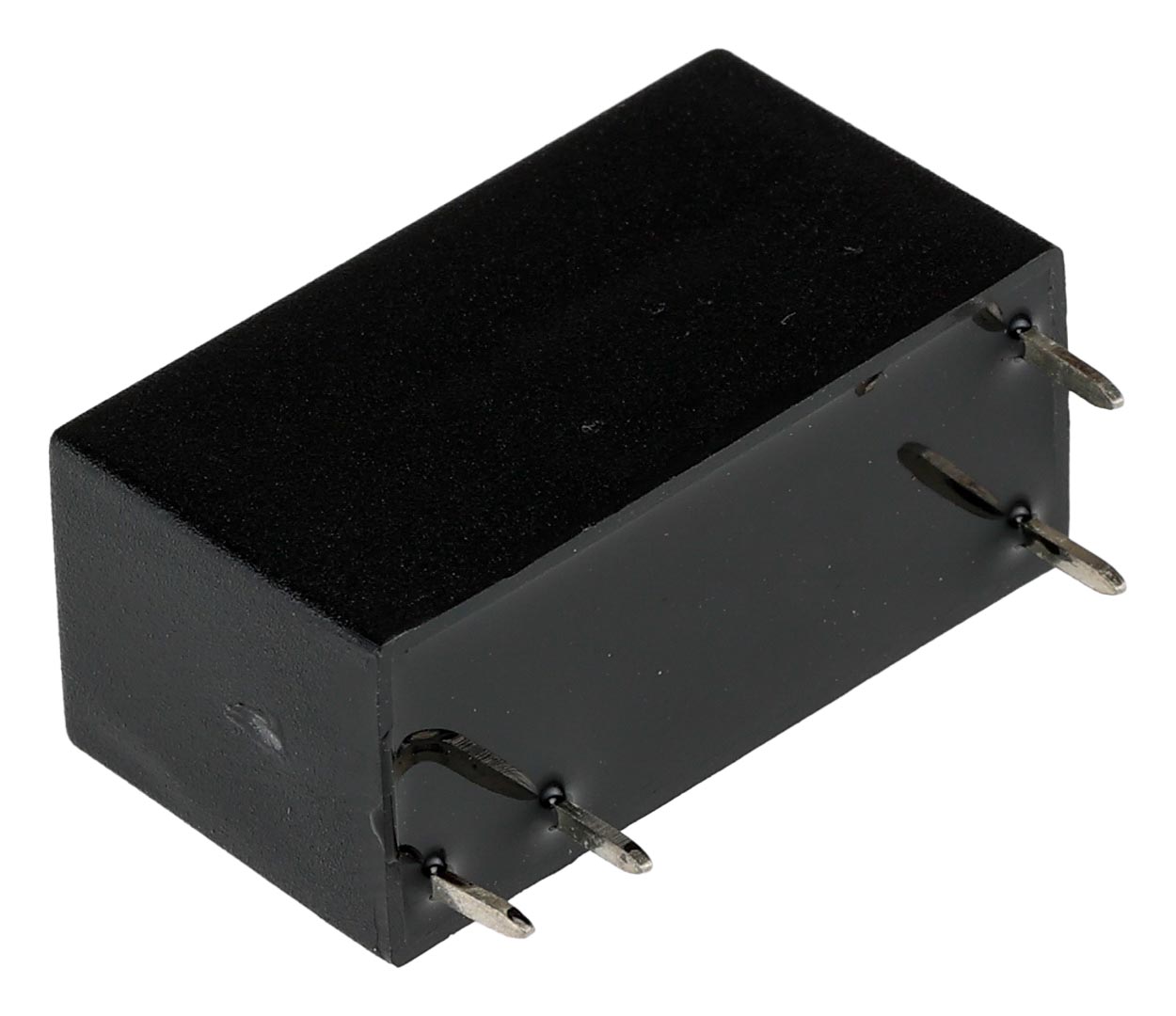

41 Series Solid State Relay, 3 A Load, PCB Mount, 240 V ac Load, 17 V dc Control

Maximum Load Current:

3 A

Mounting Type:

PCB Mount

Maximum Load Voltage:

240 V ac

Minimum Load Voltage:

12 V ac

Maximum Control Voltage:

17 V dc

Minimum Control Voltage:

8 V dc

Switching Type:

Zero Cross

Control Voltage Range:

8 → 17 V dc

Minimum Load Current:

50 mA

Contact Configuration:

SPST

Terminal Type:

Through Hole

Series:

41

Maximum Turn On Time:

10ms

Load Voltage Range:

12 → 240V ac

Dimensions:

29 x 12.7 x 15.7mm

Length:

29mm

Off State Leakage Current:

1 mA

Depth:

12.7mm

Maximum Operating Temperature:

+60°C

Height:

15.7mm

Minimum Operating Temperature:

-20°C

Operating Temperature Range:

-20 → +60°C
