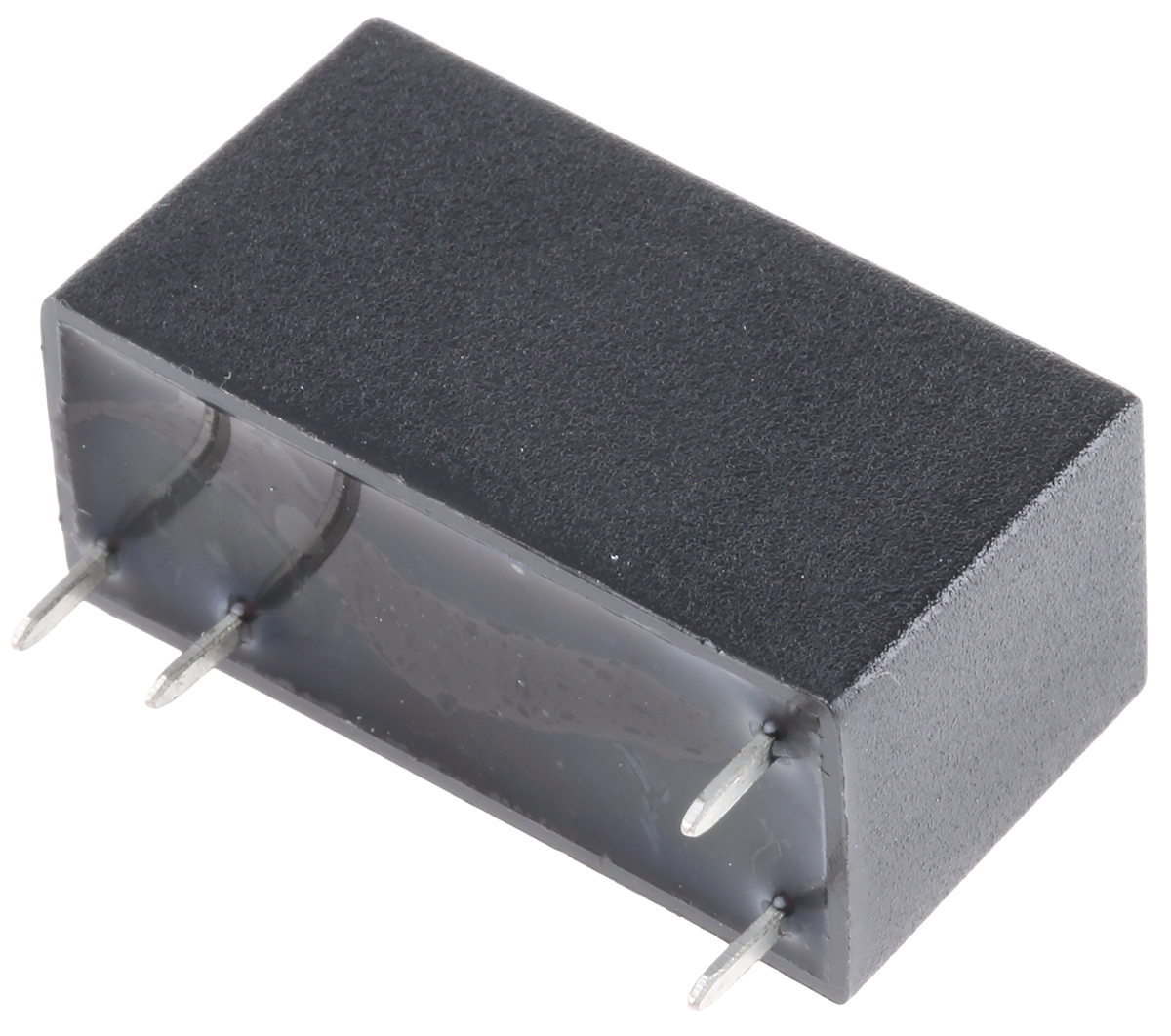

41 Series Solid State Relay, 5 A Load, PCB Mount, 24 V dc Load, 17 V dc Control

Maximum Load Current:

5 A

Mounting Type:

PCB Mount

Maximum Load Voltage:

24 V dc

Minimum Load Voltage:

1.5 V dc

Minimum Control Voltage:

8 V dc

Maximum Control Voltage:

17 V dc

Switching Type:

DC

Control Voltage Range:

8 → 17 V dc

Minimum Load Current:

1 mA

Terminal Type:

Through Hole

Contact Configuration:

SPST

Load Voltage Range:

1.5 → 24V dc

Series:

41

Maximum Turn On Time:

0.05ms

Dimensions:

29 x 12.7 x 15.7mm

Height:

15.7mm

Operating Temperature Range:

-20 → +60°C

Depth:

12.7mm

Minimum Operating Temperature:

-20°C

Maximum Operating Temperature:

+60°C

Off State Leakage Current:

0.01 mA

Length:

29mm
