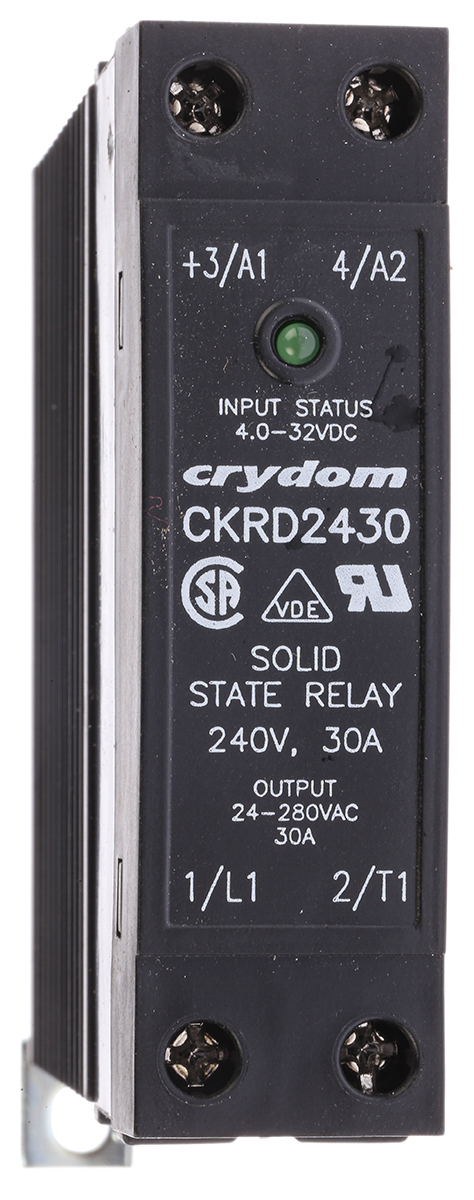

Sensata | Crydom Solid-State Relay, 280g Weight, 30A Rated Load Current - CKR24 Series - CKRD2430 Use this solid-state relay from Sensata | Crydom to safely switch between loads in your electric circuits. It has a thermally conductive epoxy casing that provides resistance to impact and heat, making it a reliable choice for use in harsh environments. This device has no moving contacts, so there's minimal risk of wear, giving you long-lasting performance. A green LED indicator displays the operational status of your machinery for easy troubleshooting. You'll find this unit used in medical equipment. Features & Benefits • Wide operating voltage range between 24 and 280V AC for use in light to medium-duty applications
• Aluminium baseplate is resistant to impact and corrosion
• Zero-cross switching function to generate minimal electrical noise What's the operating temperature range of this device? This device has a broad operating temperature range between -40°C and +80°C, so it's suitable for use in demanding environments. What's the rated load current of this relay? This component has a maximum load current of 30A, making it a good choice for use in high-powered systems.

Sensata / Crydom CKRD2430 Sensata Crydom Solid State Relay, 30 A rms Load, DIN Rail Mount, 280 V rms Load, 32 V Control

Manufacturer:
Manufacturer Part No:
CKRD2430
Enrgtech Part No:
ET16684172
Warranty:
Manufacturer
Checking for live stock
Maximum Load Current:
30 A rms
Mounting Type:
DIN Rail
Maximum Load Voltage:
280 V rms
Maximum Control Voltage:
32 V
Switching Type:
Zero Cross
Control Voltage Range:
4 → 32 V dc
Minimum Load Current:
0.15 A
Output Device:
SCR
Load Voltage Range:
24 → 280V ac
Dimensions:
81.9 x 22.5 x 99mm
Length:
81.9mm
Operating Temperature Range:
-40 → +80°C
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+80°C
Height:
99mm
Depth:
22.5mm
pdf icon
Datasheet-73140a1e(datasheets)
pdf icon
Declaration of Conformity 2014/35/EU-bac32bda(datasheets)
pdf icon
CE Declaration of Conformity (2014/35/EU, 2015/863/EU)-5e3720bc(datasheets)
pdf icon
Installation Sheet - CKRD2430-117d8c8b(datasheets)
pdf icon
Line Drawing - CKRD2430-641be5a3(datasheets)
