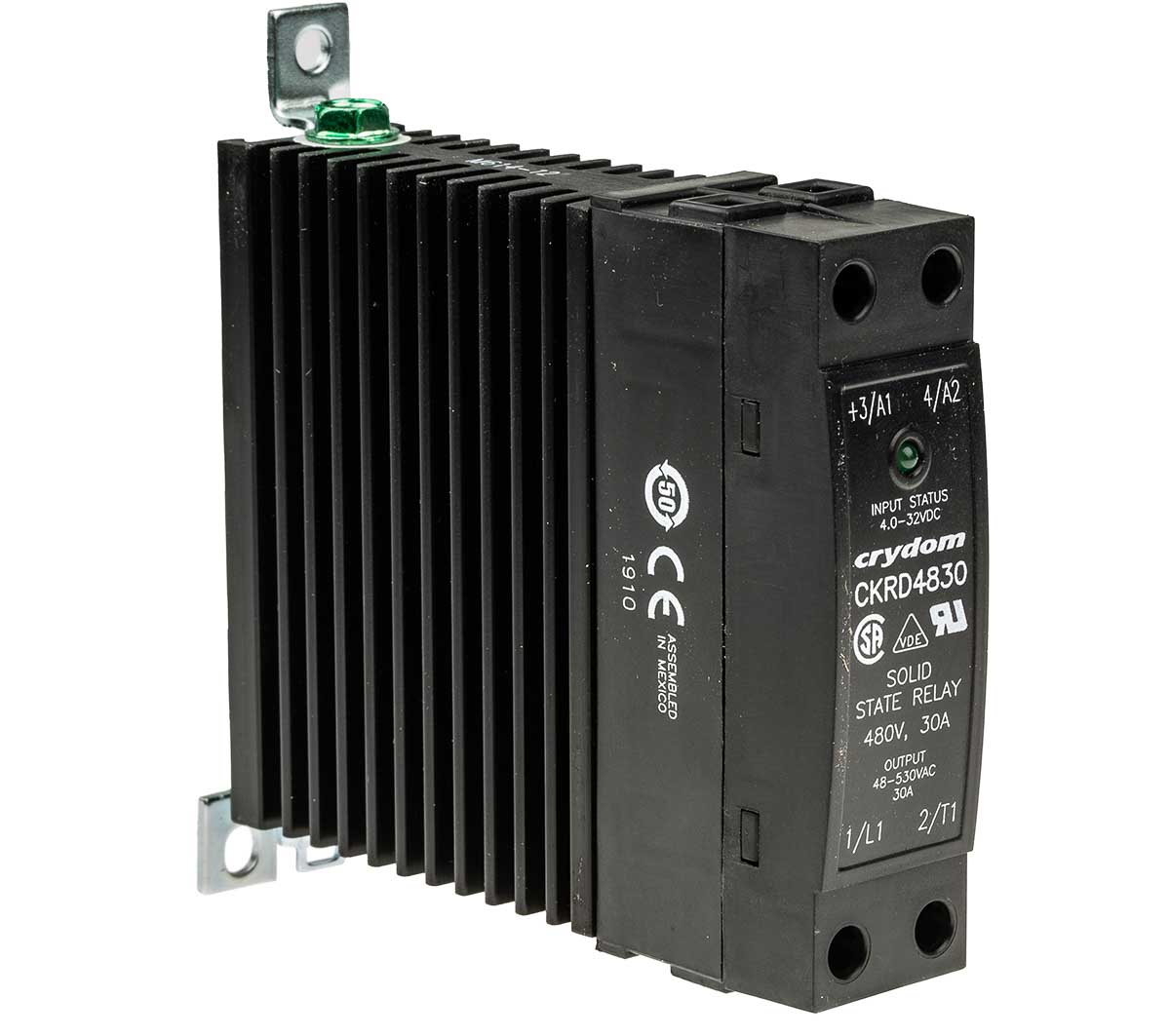

ckrd4830 Sensata Crydom CKR48 Series Solid State Relay, 30 A rms Load, DIN Rail Mount, 530 V ac Load, 32 V Control
ckrd4830 Sensata Crydom CKR48 Series Solid State Relay, 30 A rms Load, DIN Rail Mount, 530 V ac Load, 32 V Control
ckrd4830 Sensata Crydom CKR48 Series Solid State Relay, 30 A rms Load, DIN Rail Mount, 530 V ac Load, 32 V Control
ckrd4830 Sensata Crydom CKR48 Series Solid State Relay, 30 A rms Load, DIN Rail Mount, 530 V ac Load, 32 V Control

Sensata | Crydom Solid-State Relay, Zero-Cross Switching Type, 0.15 to 30A Load Current - CKR48 Series - CKRD4830 Keen to stay in control of your high-power industrial loads? Make the switch to this solid-state relay from Sensata | Crydom. Thanks to its zero-cross switching function, it comes on when the load voltage is close to zero, which reduces electrical noise generated during signal transmission. The component has a thermally conductive epoxy housing that holds fast against heat and impact, so you can count on it in rugged industrial environments. Thanks to an operating voltage range between 48 and 530V AC, it's a top-notch choice for low-voltage applications. Relays like this one are an essential component in robotics and automation systems. Features & Benefits • DIN rail mounting is simple and doesn't need complex tools, saving you time and effort
• Compact dimensions of 81.3 (L) x 22.5 (W) x 99mm (H) for installation in setups with limited space
• High dielectric strength of up to 4000Vrms to minimise the risk of electrical damage
• Green LED indicator for easy monitoring and diagnosis How do I maintain this SSR? This unit has no moving parts, so it's immune to mechanical wear and doesn't need any preventative maintenance.

Sensata / Crydom CKRD4830 Sensata Crydom CKR48 Series Solid State Relay, 30 A rms Load, DIN Rail Mount, 530 V ac Load, 32 V Control

Manufacturer:
Sensata / Crydom
Manufacturer Part No:
CKRD4830
Enrgtech Part No:
ET16684197
Warranty:
Manufacturer
Checking for live stock
Maximum Load Current:
30 A rms
Mounting Type:
DIN Rail
Maximum Load Voltage:
530 V ac
Minimum Load Voltage:
48 V ac
Minimum Control Voltage:
4 V ac/dc
Maximum Control Voltage:
32 V
Switching Type:
Zero Cross
Control Voltage Range:
4 → 32 V dc
Minimum Load Current:
0.15 A
Number of Poles:
1
Terminal Type:
Screw
Output Device:
SCR
Load Voltage Range:
48 → 530V ac
Series:
CKR48
Maximum Turn On Time:
1/2 cycle
Dimensions:
81.9 x 22.5 x 99mm
Operating Temperature Range:
-40 → +80°C
Length:
81.9mm
Off State Leakage Current:
10 mArms
Depth:
22.5mm
Capacitance:
8pF
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+80°C
Standards Met:
CE, cURus
Special Features:
AC or DC control, Zero-crossing (resistive loads) or Instantaneous-fire (inductive loads) output
Height:
99mm
pdf icon
Datasheet-99ea8a40(datasheets)
pdf icon
Declaration of Conformity 2014/35/EU-bac32bda(datasheets)
pdf icon
CE Declaration of Conformity (2014/35/EU, 2015/863/EU)-5e3720bc(datasheets)
