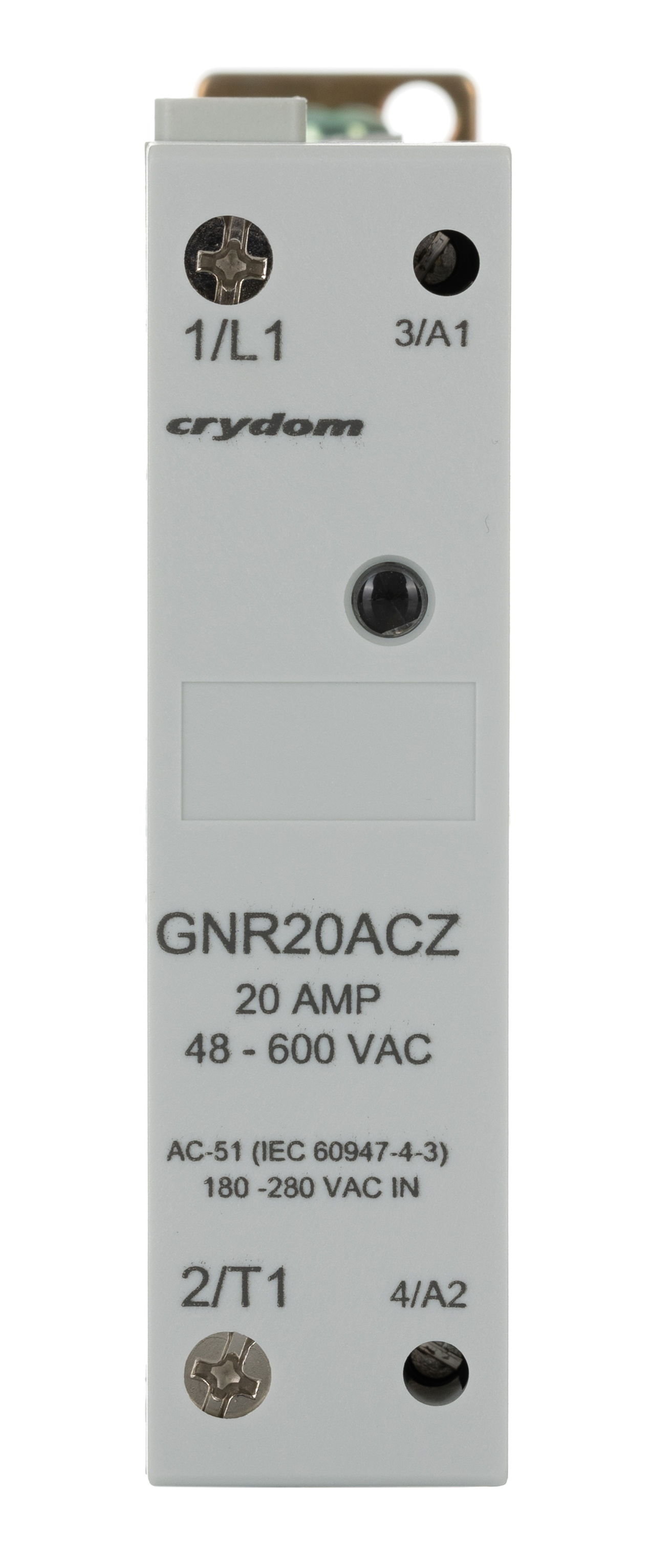

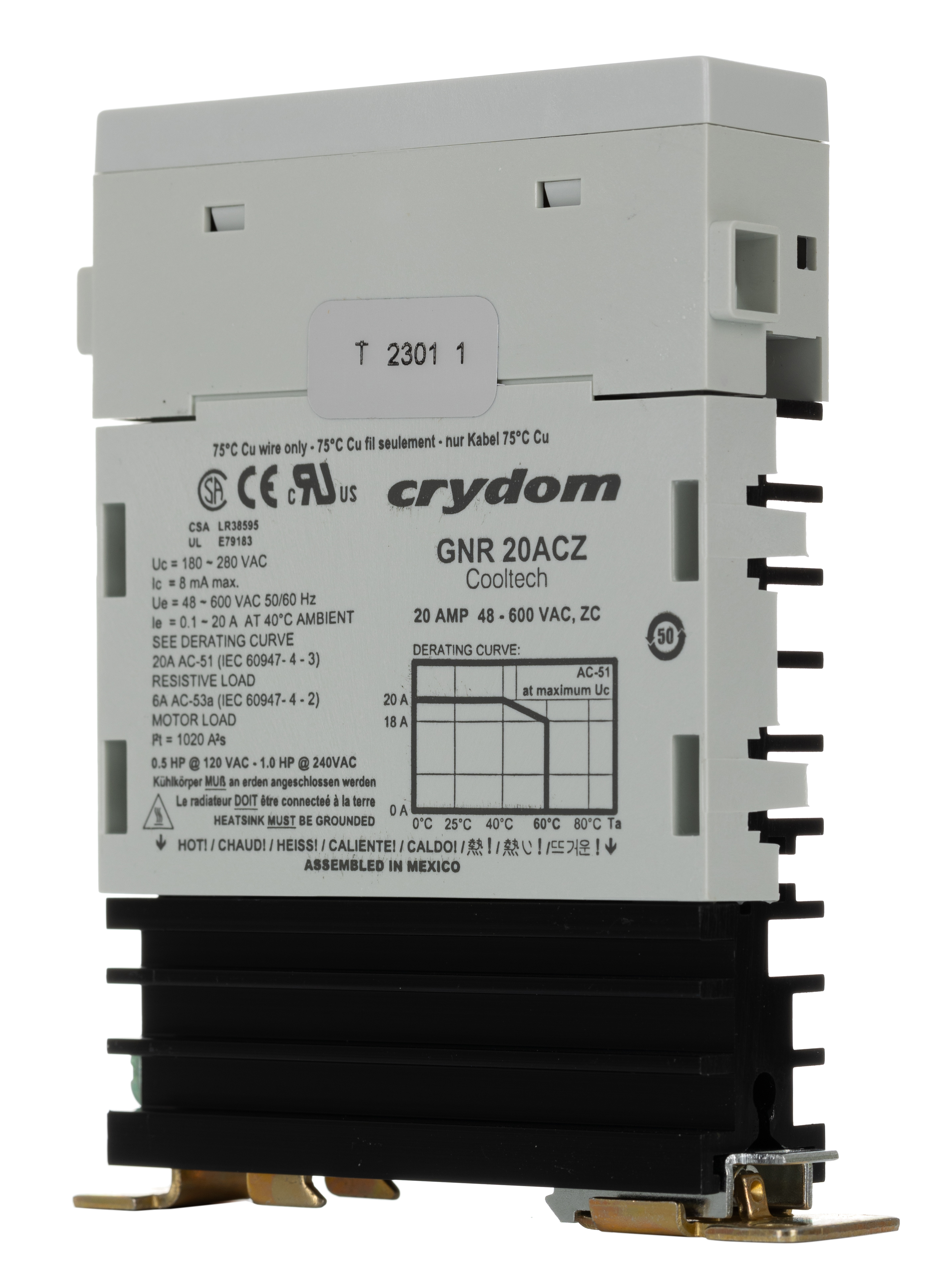

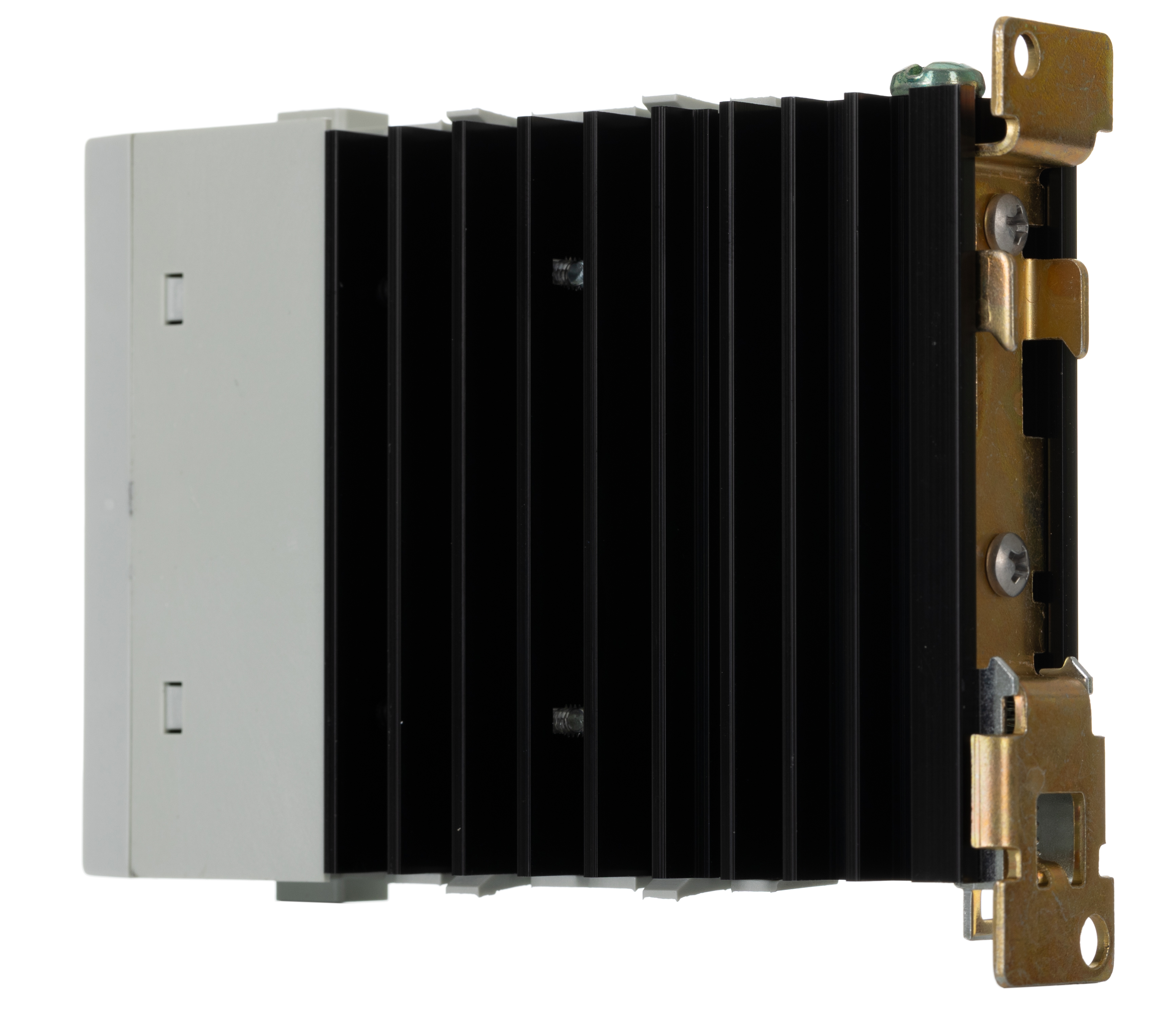

gnr20acz Sensata / Crydom GNR Series Solid State Relay, 20 A rms Load, DIN Rail Mount, 600 V rms Load, 260 V ac Control
gnr20acz Sensata / Crydom GNR Series Solid State Relay, 20 A rms Load, DIN Rail Mount, 600 V rms Load, 260 V ac Control
gnr20acz Sensata / Crydom GNR Series Solid State Relay, 20 A rms Load, DIN Rail Mount, 600 V rms Load, 260 V ac Control
gnr20acz Sensata / Crydom GNR Series Solid State Relay, 20 A rms Load, DIN Rail Mount, 600 V rms Load, 260 V ac Control
gnr20acz Sensata / Crydom GNR Series Solid State Relay, 20 A rms Load, DIN Rail Mount, 600 V rms Load, 260 V ac Control

Sensata / Crydom GNR Series Solid State Relay, 20 A rms Load, DIN Rail Mount, 600 V rms Load, 260 V ac Control

Sensata / Crydom GNR Series Solid State Relay, 20 A rms Load, DIN Rail Mount, 600 V rms Load, 260 V ac Control

Manufacturer:
Sensata / Crydom
Manufacturer Part No:
GNR20ACZ
Enrgtech Part No:
ET16686166
Warranty:
Manufacturer
Pre-order

Estimated Delivery Time: 7-13 weeks

Each

Quantity
Unit Price (ex VAT)
1
£ 101.22
5
£ 96.16
10
£ 91.09
Order Today!
From: United Kingdom

Estimated Delivery Time: 7-13 weeks

Depth:
120.7mm
Height:
88.1mm
Length:
123.4mm
Series:
GNR
Dimensions:
123.4 x 120.7 x 88.1mm
Relay Type:
Solid State Relay
Capacitance:
8pF
Mounting Type:
DIN Rail
Standards Met:
CE, CSA, UL
Terminal Type:
Screw
Switching Type:
Zero Cross
Number of Poles:
1
Special Features:
Built-In Overvoltage Protection, Direct Bond Copper Substrate, LED Input Status Indicator
Load Voltage Range:
48 → 600Vrms
Maximum Load Current:
20 A rms
Maximum Load Voltage:
600 V rms
Maximum Turn On Time:
30ms
Minimum Load Current:
100 A rms
Minimum Load Voltage:
48Vrms
Control Voltage Range:
180 → 260 V ac
Maximum Control Voltage:
260 V ac
Minimum Control Voltage:
180 V ac
Off State Leakage Current:
0.25mArms
Operating Temperature Range:
-20 → +80°C
Maximum Operating Temperature:
+80°C
Minimum Operating Temperature:
-20°C
