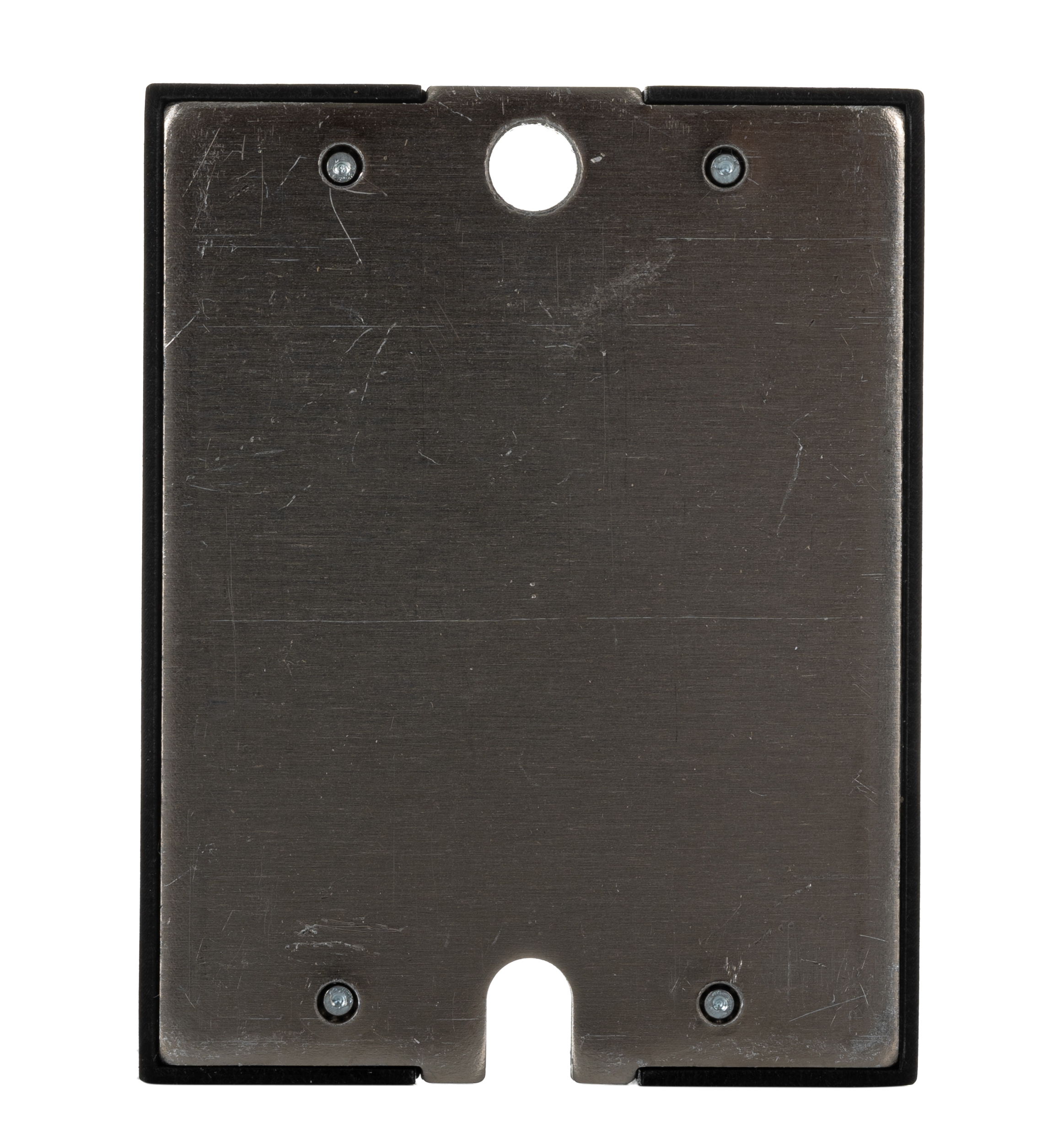

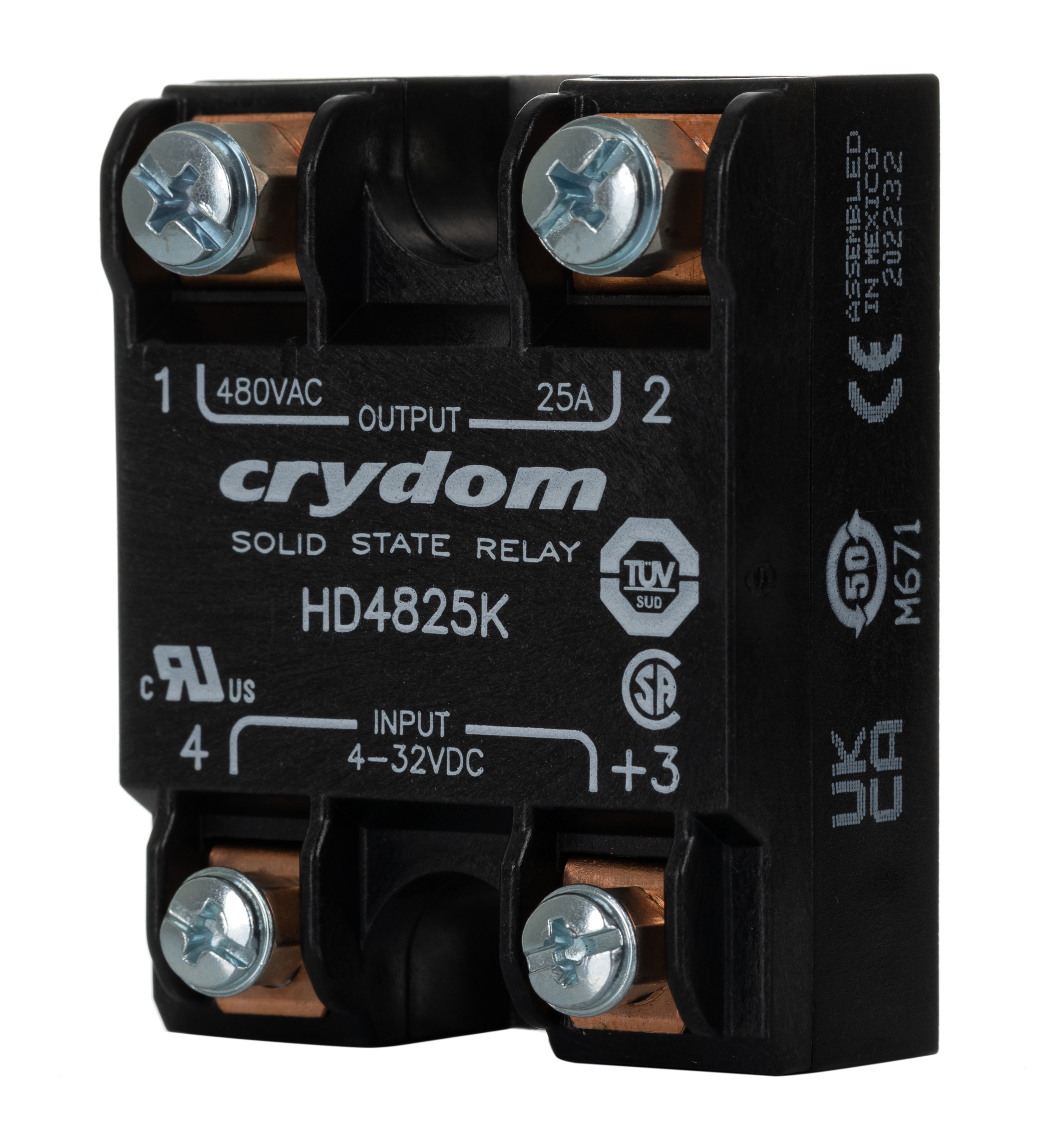

Sensata / Crydom HD4825K Sensata Crydom HD Series Solid State Relay, 25 A rms Load, Panel Mount, 530 V ac Load, 32 V dc Control

Maximum Load Current:

25 A rms

Mounting Type:

Panel Mount

Maximum Load Voltage:

530 V ac

Minimum Load Voltage:

48 V ac

Maximum Control Voltage:

32 V dc

Minimum Control Voltage:

4 V dc

Switching Type:

Zero Cross

Control Voltage Range:

4 → 32 V dc

Minimum Load Current:

150mA rms

Number of Poles:

1

Terminal Type:

Screw

Output Device:

SCR

Relay Type:

Solid State Relay

Maximum Turn On Time:

1/2 cycle

Series:

HD

Load Voltage Range:

48 → 530V ac

Dimensions:

44.5 x 57.3 x 26.4mm

Length:

44.5mm

Operating Temperature Range:

-40 → +80°C

Special Features:

AC or DC Control, Direct Bond Copper Substrate, Direct Power Lead Frame, Epoxy-Free Design, Improved SEMS Screw & Washer, Redesigned Housing with Anti-Rotation Barriers

Off State Leakage Current:

1mArms

Height:

26.4mm

Maximum Operating Temperature:

+80°C

Minimum Operating Temperature:

-40°C

Standards Met:

CE, CSA LR 81689, cULus Recognised E116949, cULus Recognised E116950, EN 60950-1, IEC, IEC 60068-2-27, IEC 60068-2-6, IEC 61000-4-2, IEC 61000-4-4, IEC 62314, UL, VDE Approved 10143 UG

Depth:

57.3mm

Capacitance:

8pF
