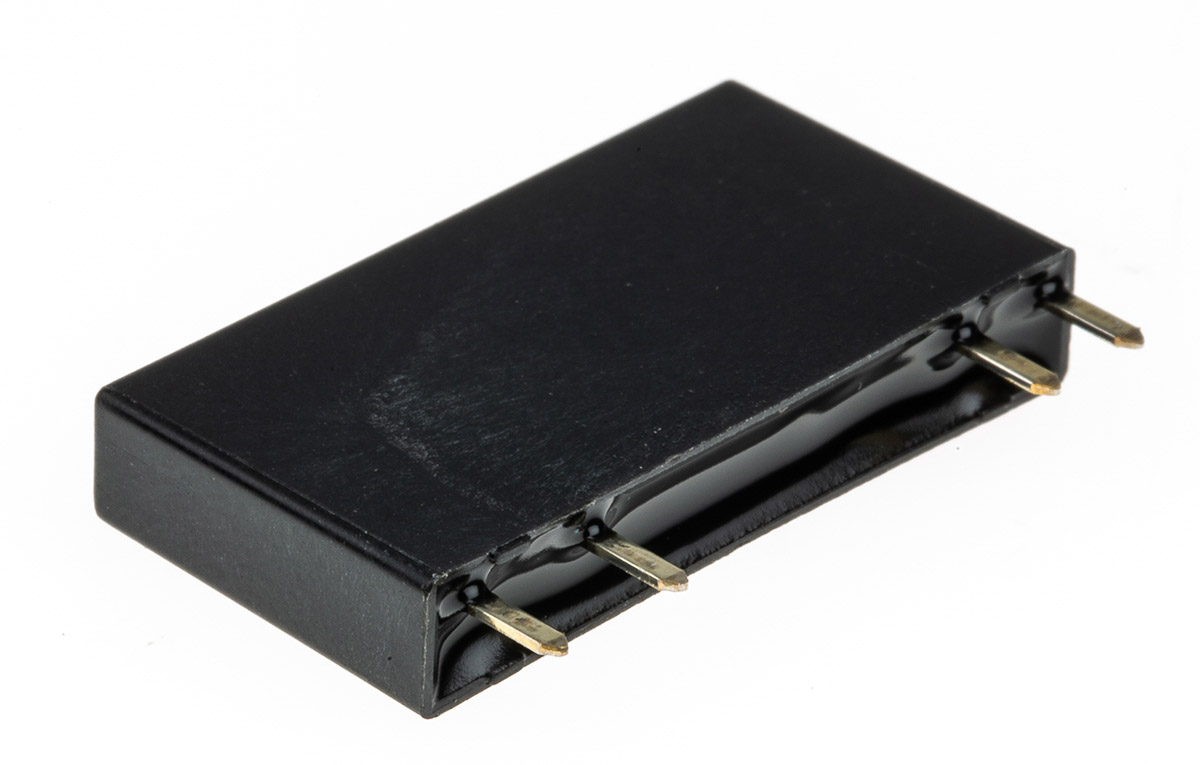

34 Series Solid State Relay, 2 A Load, PCB Mount, 24 V dc Load, 17 V Control

Maximum Load Current:

2 A

Mounting Type:

PCB Mount

Maximum Load Voltage:

24 V dc

Minimum Load Voltage:

1.5 V dc

Minimum Control Voltage:

8 V

Maximum Control Voltage:

17 V

Switching Type:

DC

Control Voltage Range:

8 → 17 V

Minimum Load Current:

1 mA

Contact Configuration:

SPST

Terminal Type:

Through Hole

Package Style:

SIP4

Series:

34

Maximum Turn On Time:

0.1ms

Load Voltage Range:

1.5 → 24V dc

Dimensions:

28 x 15 x 5mm

Minimum Operating Temperature:

-20°C

Special Features:

Ultra Slim

Length:

28mm

Off State Leakage Current:

0.001 mA

Height:

5mm

Operating Temperature Range:

-20 → +60°C

Depth:

15mm

Maximum Operating Temperature:

+60°C
