Keithley 2461 Graphical Source Measure Unit (SMU), 105 V/7 A DC 100 W, 100 V/10 A
Pulse 1000 W max, Programmable The 2461 High Current SourceMeter® Source Measure Unit (SMU) Instrument brings advanced Touch, Test, Invent® technology right to your fingertips. It combines an innovative graphical user interface (GUI) with capacitive touchscreen technology to make testing intuitive and minimize the learning curve to help engineers and scientists learn faster, work smarter, and invent easier. With its 10 A/1000 W pulse current and 7 A/100 W DC current capability combined with dual 18-bit 1MS/s digitizers, the 2461 is optimized for characterizing and testing high power materials, devices, and modules, such as silicon carbide (SiC), gallium nitride (GaN), DCDC converters, circuit protection devices, solar cells and panels, high brightness LEDs and lighting systems, electrochemical cells and batteries, and much more. These new capabilities, combined with Keithley’s expertise in high precision, high accuracy SMU instruments, will make the 2461 a "go-to instrument" for high current sourcing and high speed measurement applications in the lab and in the rack for years to come.

To help users who wish to transition to the 2461 from Keithley’s legacy 2420, 2425, 2430, and 2440 SMUs, the 2461 now includes four SCPI emulation modes for each of the older models, minimizing SCPI code rewriting and maximizing your investment. Features and Benefits • One tightly coupled instrument that combines the capabilities of analysers, curve tracers, and I-V systems at a fraction of their cost
• Wide coverage up to 105 V/7 A DC 100 W, 100 V/10 A Pulse 1000 W max.

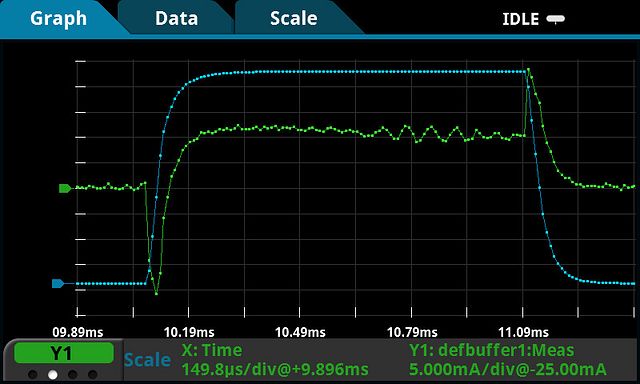

• Dual 1 MS/s digitizers for fast sampling measurements

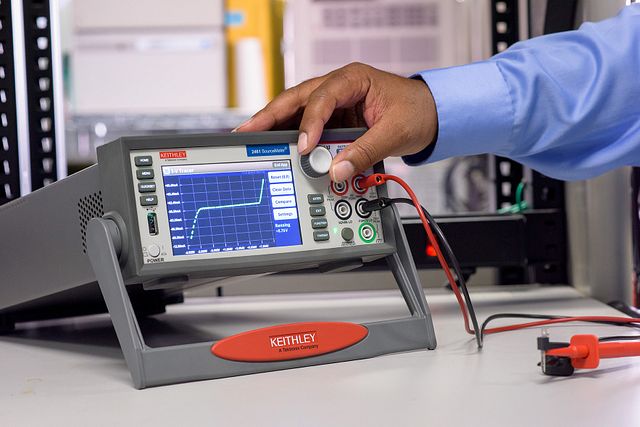

• Five-inch, high resolution capacitive touchscreen GUI
• 0.012% DCV accuracy with 6-digit resolution
• Source and sink (4-quadrant) operation
• Four “Quickset” modes for fast setup and measurements
• Context-sensitive help function
• Front panel input banana jacks rear panel mass termination screw connections
• SCPI and Test Script Processor (TSP®) programming modes
• Front-panel USB 2.0 memory I/O port for transferring data, test scripts, or test configurations Accessories SMU Accessories
Test Leads and Probes:
RS Stock No. 2409950 5805-12 (Kelvin 4-wire Spring Loaded Probes)

Software Options
Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

Cable and Interface Accessories
RS Stock No. 8470093 7007-1 (Shielded GPIB Cable)
RS Stock No. 7600341 KPCI-488LPA (Low Profile IEEE-488 Interface Board)
RS Stock No. 7600345 KUSB-488B (IEEE-488.2 USB-TO-GPIB Interface Adapter) Software Updates KickStart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

For full list of accessories, application and software options, please see datasheet

Keep your instrument up to date and to enhance the functionality, please visit Tektronix website for the latest software updates at https://www.tek.com/en/products/software Applications Automotive
Battery Testing
Embedded Design
Power Measurements and Analysis
Education
Manufacturing test/troubleshooting
