TE Connectivity PIDG Faston 187 Receptacle Wire Crimp Terminals
PIDG insulated Faston 187 quick disconnect receptacle wire crimp terminals with a mating area interface of 5.0 x 0.80mm. These PIDG Faston 197 quick disconnect receptacle crimp terminals consist of a precision-formed metal wire barrel containing serrations which provide maximum contact and tensile strength after crimping. This barrel is enclosed in a copper sleeve and the whole is encased in a nylon colour coded insulation sleeve. These PIDG insulated Faston 197 quick disconnect receptacle wire crimp terminals are available with different barrel lengths and diameters to accept various wire sizes.
Red 0.3 - 1.5 mm²
Blue 1 - 2.50 mm²
Yellow 0.12 - 0.24 mm²
Blue 1 - 2.50 mm²
Yellow 0.12 - 0.24 mm²

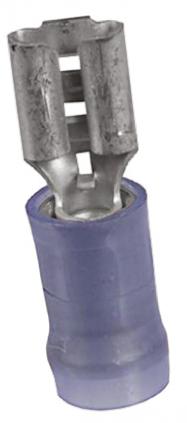

PIDG FASTON .187 Blue Insulated Female Spade Connector, Receptacle, 4.75 x 0.51mm Tab Size, 1.3mm² to
Manufacturer:
TE Connectivity
Manufacturer Part No:
640919-1
Enrgtech Part No:
ET13889939
Warranty:
Manufacturer
£ 0.34
Checking for live stock
Type:
Receptacle
Series:
PIDG FASTON .187
Gender:
Female
Minimum Wire Size mm²:
1.3mm²
Maximum Wire Size mm²:
2mm²
Tab Size:
4.75 x 0.51mm
Insulation:
Insulated
Maximum Wire Size AWG:
14AWG
Minimum Wire Size AWG:
16AWG
Colour:
Blue
Termination Method:
Crimp
Contact Material:
Brass
