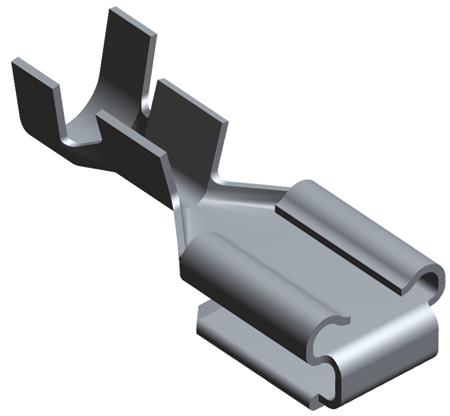

TE Connectivity FASTON 250 Series Piggyback Crimp Terminals
FASTON 250 series piggyback crimp receptacle tab combination terminals designed for quick and efficient connection and reliability. These FASTON 250 piggyback receptacle terminals have a step down insulation support barrel to compensate for insulation thickness enabling the axial alignment of conductor strands to be maintained. Tapering walls at the rear of these FASTON 250 piggyback receptacle crimp terminals prevent over insertion of shoulderless tabs. The "F" style crimp terminations of these FASTON 250 series quick connect piggyback receptacle tab combinations enable stable electrical and mechanical performance as well as resistance to vibration and corrosion.
FASTON 0.25 Uninsulated Female Spade Connector, Piggyback Terminal, 6.35 x 0.851mm Tab Size, 0.8mm² to
Manufacturer:
TE ConnectivityManufacturer Part No:
60279-2
Enrgtech Part No:
ET13890140
Warranty:
Manufacturer
£ 231.28
Checking for live stock
Type:
Piggyback Terminal
Series:
FASTON 0.25
Minimum Wire Size mm²:
0.8mm²
Gender:
Female
Maximum Wire Size mm²:
2mm²
Tab Thickness:
0.851mm
Tab Size:
6.35 x 0.851mm
Tab Width:
6.35mm
Insulation:
Uninsulated
Minimum Wire Size AWG:
18AWG
Maximum Wire Size AWG:
14AWG
Termination Method:
Crimp
