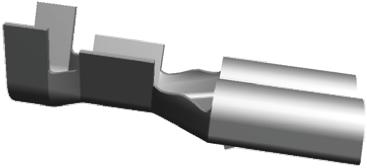

182524-2 TE Connectivity FASTIN-FASTON .187 Uninsulated Female Spade Connector, Receptacle, 4.75 x 0.8mm Tab Size, 1mm² to 2.5mm²
182524-2 TE Connectivity FASTIN-FASTON .187 Uninsulated Female Spade Connector, Receptacle, 4.75 x 0.8mm Tab Size, 1mm² to 2.5mm²
TE Connectivity FASTIN FASTON Series 187 Quick Connect Receptacle Crimp Terminals FASTIN FASTON 187 series quick connect straight crimp receptacles designed for quick and efficient connection and reliability. These FASTIN FASTON 187 receptacle terminals have a locking lance that ensures secure retention when snapped into housings and a step down insulation support barrel to enable the axial alignment of conductor strands to be maintained. Tapering walls at the rear of these FASTIN FASTON 187 receptacles prevent over insertion of shoulderless tabs. The "F" style crimp terminations of these FASTIN FASTON 187 series quick connect straight receptacles enable stable electrical and mechanical performance as well as resistance to vibration and corrosion
TE Connectivity

FASTIN-FASTON .187 Uninsulated Female Spade Connector, Receptacle, 4.75 x 0.8mm Tab Size, 1mm² to 2.5mm²

Manufacturer:
TE Connectivity
Manufacturer Part No:
182524-2
Enrgtech Part No:
ET13916319
Warranty:
Manufacturer
£ 0.32

Checking for live stock

Type:

Receptacle

Gender:

Female

Series:

FASTIN-FASTON .187

Minimum Wire Size mm²:

1mm²

Maximum Wire Size mm²:

2.5mm²

Tab Size:

4.75 x 0.8mm

Insulation:

Uninsulated

Minimum Wire Size AWG:

17AWG

Maximum Wire Size AWG:

13AWG

Termination Method:

Crimp

Insulation Material:

Nylon

Overall Length:

15mm
