TE Connectivity PIDG Faston 250 Receptacle Wire Crimp Terminals PIDG (Pre-Insulated Diamond Grip) FASTON 250 receptacle wire crimp terminals designed for uniform reliability in the most difficult circuit environments. These PIDG receptacle terminals consist of a precision-formed high conductivity copper body and barrel. The wire barrel is surrounded with both a copper and nylon colour coded sleeve. The copper sleeve surrounding the barrel provides improved wire insulation support after crimping allowing the wire to bend without fraying the insulation or breaking the conductor. The nylon sleeves are colour coded according to wire-size to assist with identification. Inside the PIDG receptacle terminal wire barrel are serrations which provide maximum contact and tensile strength after crimping. The construction of these PIDG terminals and the use of specialised tool dies allows for uniform insulation thickness under crimping pressure. This pressure is then transmitted evenly to the centre of the crimping area to produce a uniform and reliable crimp. These PIDG receptacle terminals also feature a funnelled wire entry which prevents turned back wire strands and allows fast wire insertion during high-speed production. Available with various wire sizes, these PIDG receptacle terminals offer a versatile solution to a wide range of wiring applications High conductivity copper body Copper sleeve for improved wire insulation support Serrations in wire barrel for maximum contact and tensile strength Colour coded sleeves for easy wire size and tooling identification Funnelled wire entry for easy wire insertion Designed enables a reliable and uniform crimp Application These PIDG wire terminals are suitable for use in a wide range of applications with many terminals meeting or exceeding the requirements of MIL-T-7928, Type II, Class 1 and 2. Applications include i...

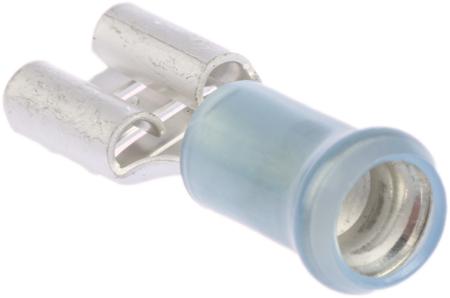

TE Connectivity , PIDG FASTON .250 Series Blue Insulated Crimp Receptacle, 6.35 x 0.81mm, 1mm² to 2.5mm², 17AWG

Manufacturer:
Manufacturer Part No:
9-160313-5
Enrgtech Part No:
ET13918372
Warranty:
Manufacturer
£ 0.34
Checking for live stock
Maximum Wire Size mm²:
2.5mm²
Gender:
Female
Colour:
Blue
Overall Length:
23.2mm
Minimum Wire Size AWG:
17AWG
Termination Method:
Crimp
Tab Size:
6.35 x 0.81mm
Insulation Material:
Nylon
Contact Plating:
Tin
Series:
PIDG FASTON .250
Insulation:
Insulated
Maximum Wire Size AWG:
13AWG
Minimum Wire Size mm²:
1mm²
Type:
Receptacle
Contact Material:
Phosphor Bronze
pdf icon
Crimp,tab,PIDG,13.5-17awg,23.7mm,tin(Technical Reference)
