TE Connectivity Positive Lock Connector Contacts - MK I 250 Series
MK I 250 Series positive lock receptacle and flag style crimp terminals with reduced insertion force and snap action locking which accept a wire size range of 20 to 10 AWG. These Positive Lock crimp receptacles lock onto the mating tab terminals containing holes or dimples and make a mechanical 'snap' when correctly positioned and can only be removed when an integral depressor on the receptacle terminal is deflected.

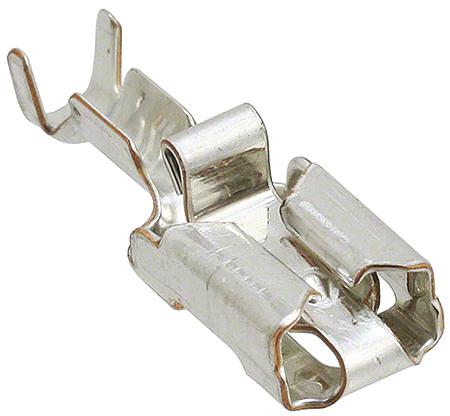

Positive Lock .250 Mk I Uninsulated Female Spade Connector, Receptacle, 6.35 x 0.81mm Tab Size, 0.5mm²
Manufacturer:
TE Connectivity
Manufacturer Part No:
160773-6
Enrgtech Part No:
ET14074779
Warranty:
Manufacturer
£ 0.17
Checking for live stock
Type:
Receptacle
Gender:
Female
Series:
Positive Lock .250 Mk I
Minimum Wire Size mm²:
0.5mm²
Maximum Wire Size mm²:
1.5mm²
Tab Size:
6.35 x 0.81mm
Insulation:
Uninsulated
Maximum Wire Size AWG:
15AWG
Minimum Wire Size AWG:
20AWG
Termination Method:
Crimp
Contact Material:
Brass
Contact Plating:
Tin
