TE Connectivity FASTON 110/125 Series Ultra-Fast Plus Receptacle Crimp Terminals
FASTON 110/125 series Ultra-Fast Plus fully insulated receptacle crimp terminals designed to prevent shock and electrical short circuits from exposed leads. The housings of these FASTON 110/125 series series Ultra-Fast plus receptacle crimp terminals completely enclose a tin plated copper alloy FASTON receptacle contact which is recessed within the housing to allow its use in 600V applications. The receptacle and wire barrel part of the housing is made from type 6/6 nylon whilst the insulation barrel is made from premium grade nylon with minimum spring-back which retains the insulation crimp shape and provides strain relief. These FASTON 110/125 series Ultra-fast plus crimp terminals terminate 26-10 AWG solid, fused and stranded wire with the wire size and tab size designation indicated on the housing. Slots in the housing membrane enable shouldered tab styles to be accommodated.

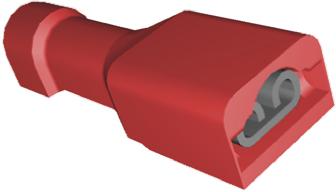

Ultra-Fast Plus .110 Red Insulated Female Spade Connector, Receptacle, 2.79 x 0.51mm Tab Size, 0.3mm²
Manufacturer:
TE Connectivity
Manufacturer Part No:
2-520932-2
Enrgtech Part No:
ET14125015
Warranty:
Manufacturer
£ 443.94
Checking for live stock
Type:
Receptacle
Series:
Ultra-Fast Plus .110
Gender:
Female
Minimum Wire Size mm²:
0.3mm²
Maximum Wire Size mm²:
0.8mm²
Tab Size:
2.79 x 0.51mm
Insulation:
Insulated
Maximum Wire Size AWG:
18AWG
Minimum Wire Size AWG:
22AWG
Termination Method:
Crimp
Colour:
Red
Contact Material:
Brass
