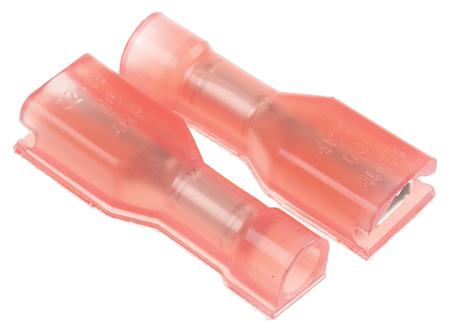

2-520084-2 TE Connectivity Ultra-Fast .110 Red Insulated Female Spade Connector, Receptacle, 2.79 x 0.51mm Tab Size, 0.3mm² to
2-520084-2 TE Connectivity Ultra-Fast .110 Red Insulated Female Spade Connector, Receptacle, 2.79 x 0.51mm Tab Size, 0.3mm² to
TE Connectivity FASTON 110/125 Series Ultra-Fast Receptacle Crimp Terminals FASTON 110/125 series Ultra-Fast fully insulated receptacle crimp terminals designed to prevent shock and electrical short circuits from exposed leads by providing complete encapsulation to a tab and receptacle when mated. The housings of these FASTON 110/125 series Ultra-Fast receptacle crimp terminals are made from UL 94 V-2 type 6/6 nylon which completely enclose a tin plated copper alloy FASTON receptacle contact which is recessed within the housing to allow its use in 600V applications. These FASTON 110/125 series Ultra-fast crimp terminals terminate 26-10 AWG solid, fused and stranded wire with the wire and tab size designation indicated on the housing. Slots in the housing membrane enable shouldered tab styles to be accommodated.
TE Connectivity

Ultra-Fast .110 Red Insulated Female Spade Connector, Receptacle, 2.79 x 0.51mm Tab Size, 0.3mm² to

Manufacturer:
TE Connectivity
Manufacturer Part No:
2-520084-2
Enrgtech Part No:
ET16716985
Warranty:
Manufacturer
£ 163.17

Checking for live stock

Type:

Receptacle

Series:

Ultra-Fast .110

Gender:

Female

Minimum Wire Size mm²:

0.3mm²

Maximum Wire Size mm²:

0.8mm²

Tab Size:

2.79 x 0.51mm

Insulation:

Insulated

Maximum Wire Size AWG:

18AWG

Minimum Wire Size AWG:

22AWG

Colour:

Red

Termination Method:

Crimp

Contact Material:

Brass
