TE Connectivity PIDG Faston 205 Receptacle Wire Crimp Terminals
PIDG insulated Faston 205 quick disconnect receptacle wire crimp terminal with a mating area interface of 5.21 x 0.81mm. This PIDG Faston 205 quick disconnect receptacle crimp terminal consists of a precision-formed metal wire barrel containing serrations which provide maximum contact and tensile strength after crimping. This barrel is enclosed in a copper sleeve and the whole is encased in a nylon colour coded insulation sleeve.
Blue 1.25 - 2.00 mm²

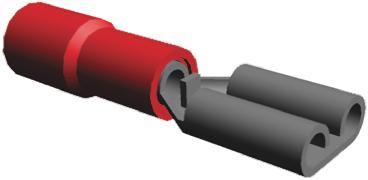

PIDG FASTON .205 Red Insulated Female Spade Connector, Receptacle, 5.21 x 0.81mm Tab Size, 0.3mm² to
Manufacturer:
TE Connectivity
Manufacturer Part No:
640911-1
Enrgtech Part No:
ET16718076
Warranty:
Manufacturer
£ 373.97
Checking for live stock
Type:
Receptacle
Minimum Wire Size mm²:
0.3mm²
Series:
PIDG FASTON .205
Gender:
Female
Maximum Wire Size mm²:
0.8mm²
Tab Size:
5.21 x 0.81mm
Insulation:
Insulated
Minimum Wire Size AWG:
22AWG
Maximum Wire Size AWG:
18AWG
Colour:
Red
Termination Method:
Crimp
Contact Material:
Brass
