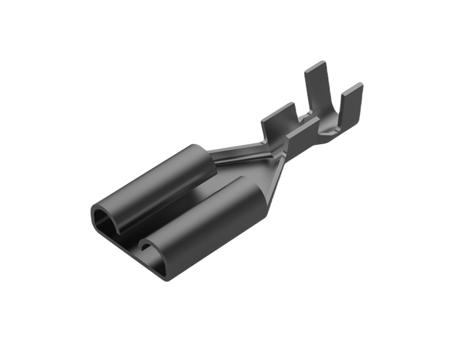

The TE Connectivity Quick Disconnect Receptacle is designed for wire sizes ranging from 17 to 13 AWG or 1.03 to 2.62 mm². It features a 9.53 mm [.375 in] tab width and a straight configuration for secure and easy connections. Made of phosphor bronze with tin plating, this receptacle provides excellent electrical conductivity and corrosion resistance, ensuring reliable performance in various electrical applications.
Locking lance mating retention
RoHS compliant
EU ELV compliant
RoHS compliant
EU ELV compliant
FASTIN-FASTON 375 Black Uninsulated Receptacle Spade Connector, Quick Disconnect Receptacle, 9.53 x
Manufacturer:
TE ConnectivityManufacturer Part No:
962835-3
Enrgtech Part No:
ET28376354
Warranty:
Manufacturer
£ 539.90
Checking for live stock
Spade Connector Type:
Quick Disconnect
Type:
Quick Disconnect Receptacle
Series:
FASTIN-FASTON 375
Gender:
Receptacle
Tab Size:
9.53 x 1.22mm
Tab Width:
9.53mm
Tab Thickness:
1.22mm
Insulation:
Uninsulated
Minimum Wire Size AWG:
17AWG
Maximum Wire Size AWG:
13AWG
Colour:
Black
Contact Material:
Phosphor Bronze
