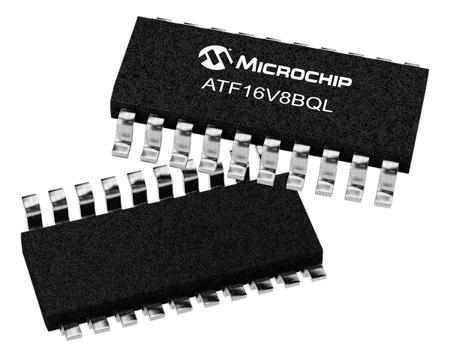

ATF16V8BQL-15XU, SPLD Simple Programmable Logic Device ATF16V8B 150 Gates, 8 Macro Cells, 8 I/O, 62MHz 15ns

Family Name:

ATF16V8B

Number of Gates:

150

Number of Macro Cells:

8

Number of User I/Os:

8

Maximum Internal Frequency:

62MHz

Re-programmability Support:

Yes

Mounting Type:

Surface Mount

Package Type:

TSSOP

Pin Count:

20

Maximum Propagation Delay Time:

15ns

Fabrication Technology:

CMOS, TTL

Dimensions:

6.6 x 4.5 x 1.05mm

Height:

1.05mm

Maximum Operating Supply Voltage:

5 V

Propagation Delay Test Condition:

50pF

Length:

6.6mm

Width:

4.5mm

Minimum Operating Temperature:

-40 °C

Maximum Operating Temperature:

+85 °C
