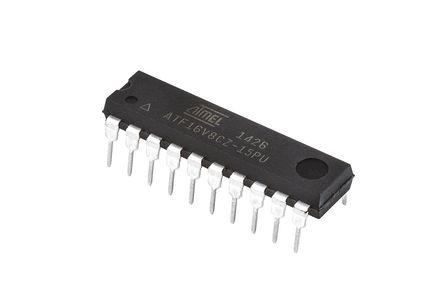

ATF16V8CZ-15PU, SPLD Simple Programmable Logic Device ATF16V8C 150 Gates, 8 Macro Cells, 8 I/O, 62MHz 15ns

Family Name:

ATF16V8C

Number of Gates:

150

Number of Macro Cells:

8

Number of User I/Os:

8

Maximum Internal Frequency:

62MHz

Re-programmability Support:

Yes

Mounting Type:

Through Hole

Package Type:

PDIP

Pin Count:

20

Maximum Propagation Delay Time:

15ns

Fabrication Technology:

CMOS, TTL

Dimensions:

26.92 x 7.11 x 4.95mm

Height:

4.95mm

Minimum Operating Temperature:

-40 °C

Width:

7.11mm

Maximum Operating Temperature:

+85 °C

Maximum Operating Supply Voltage:

5 V

Propagation Delay Test Condition:

50pF

Length:

26.92mm
