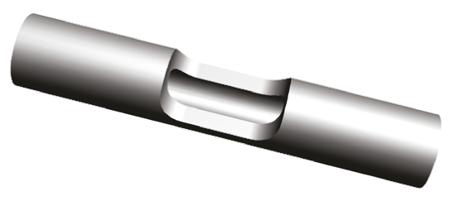

TE Connectivity SOLISTRAND Closed Barrel Strap Butt Splices
SOLISTRAND closed barrel strap butt splices designed to terminate solid and stranded wire and irregular shaped conductors. These SOLISTRAND closed barrel strap butt splices are made from fine grade high conductivity copper and have closed barrels with brazed seams that create a uniform metal strength around the barrel. The inner surface of the barrels are either dimpled or serrated for maximum tensile strength and to maximise the electrical contact area after crimping

, SOLISTRAND Strap Butt Splice Connector, Uninsulated, Tin 24 → 20 AWG
Manufacturer:
TE ConnectivityManufacturer Part No:
324001
Enrgtech Part No:
ET13804545
Warranty:
Manufacturer
£ 28.10
Checking for live stock
Splice Type:
Strap Butt
Wire Size:
24 → 20 AWG
Overall Length:
12.45mm
Diameter:
2.67mm
Insulation:
Uninsulated
Series:
SOLISTRAND
Contact Material:
Copper
Contact Plating:
Tin
Thickness:
0.58mm
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=101316&DisplayLogo=False
