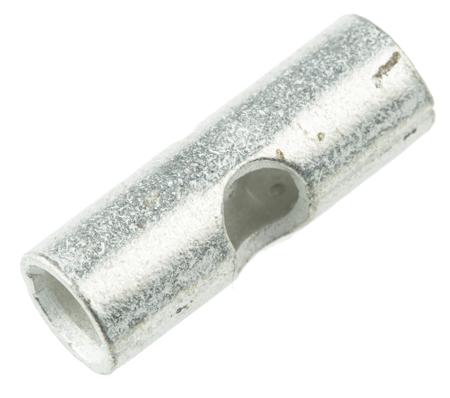

TE Connectivity SOLISTRAND Sight Hole Closed Barrel Butt Splices SOLISTRAND sight hole closed barrel butt splices designed to terminate solid and stranded wire and irregular shaped conductors. These SOLISTRAND sight hole closed barrel butt splices are made from fine grade high conductivity copper with tin plating and have closed barrels with brazed seams that create a uniform metal strength around the barrel. The inner surface of the barrels of these SOLISTRAND sight hole butt splices are either dimpled or serrated for maximum tensile strength and to maximise the electrical contact area after crimping

TE Connectivity , SOLISTRAND Butt Splice Connector, Tin 8 AWG

Manufacturer:
Manufacturer Part No:
36906
Enrgtech Part No:
ET16717520
Warranty:
Manufacturer
£ 1.0100
Checking for live stock
Splice Type:
Butt
Wire Size:
8 AWG
Overall Length:
21.01mm
Diameter:
7.52mm
Insulation:
Uninsulated
Series:
SOLISTRAND
Contact Material:
Copper
Contact Plating:
Tin
Thickness:
1.22mm
pdf icon
UL E13288(M)-99fcecd1(datasheets)
pdf icon
CSA 7189-c1960454(datasheets)
pdf icon
Line Drawing-b5d734c6(datasheets)
pdf icon
Datasheet-b821989f(datasheets)
