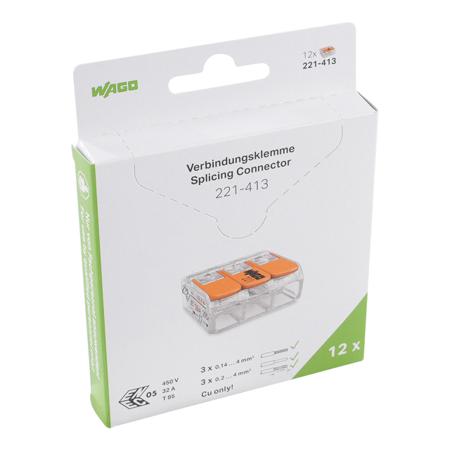

The Wago Splicing Connector with Levers is designed for all conductor types up to 4 mm². It features a transparent housing and operates in temperatures up to 85°C. The connector allows easy conductor insertion by pulling up the lever, inserting the conductor, and pushing the lever back down. It accommodates solid, stranded, and fine-stranded conductors from 0.14 to 4 mm². Available in 2, 3, and 5 wire versions, it saves time for installers and device manufacturers, ensuring safe installation of devices and long cable runs with larger conductor cross-sections. Custom carriers are available for installation. Insulation material main housing Polycarbonate
Flammability class per UL94 V2
Fire load 0.064 MJ
Actuator color orange
