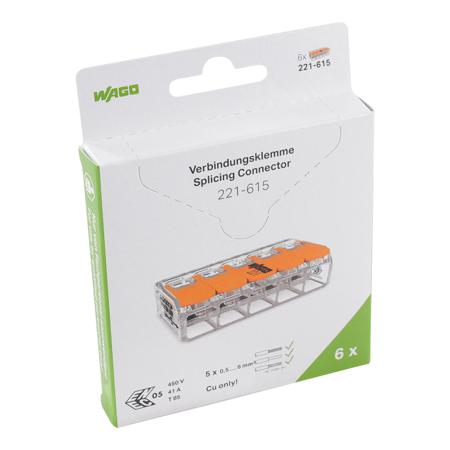

The Wago Splicing Connector with Levers is designed for all conductor types up to 6 mm². It features a transparent housing and operates in temperatures up to 85°C. The connector allows easy conductor insertion by pulling up the lever, inserting the conductor, and pushing the lever back down. Available in 2, 3, and 5wire versions, it accommodates conductors from 0.5 to 6 mm². Ideal for installers and device manufacturers, it ensures quick and safe installation, even for devices with higher power consumption and long cable runs with larger conductor cross-sections. Custom carriers are available. Insulation material main housing Polycarbonate
Flammability class per UL94 V2
Fire load 0.138 MJ
Actuator color orange
