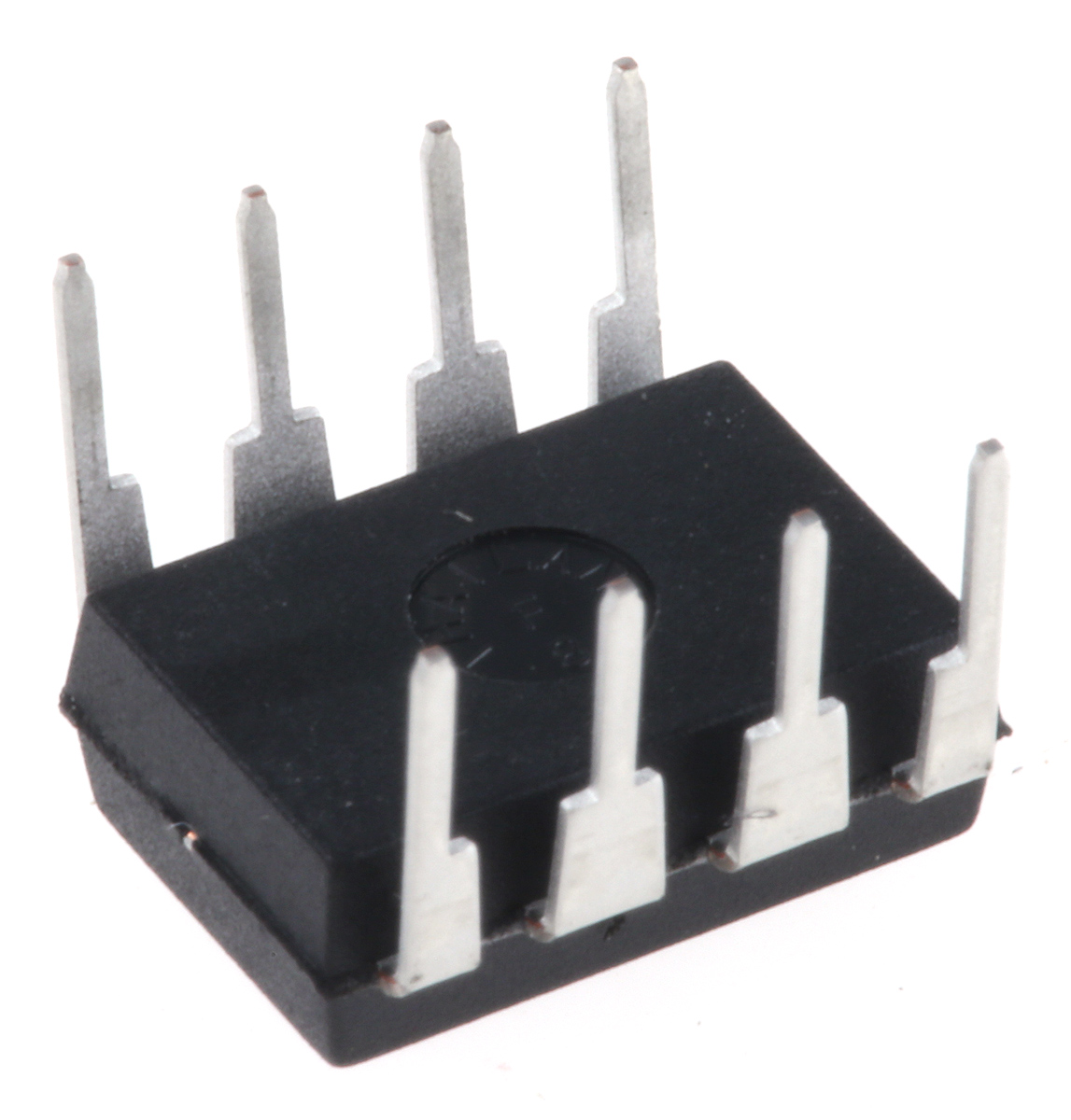

SRAM, 23K256-I/P- 256kbit

Memory Size:

256kbit

Organisation:

32768 x 8 bit

Number of Words:

32k

Number of Bits per Word:

8bit

Maximum Random Access Time:

25ns

Address Bus Width:

16bit

Clock Frequency:

20MHz

Low Power:

Yes

Timing Type:

Synchronous

Mounting Type:

Through Hole

Package Type:

PDIP

Pin Count:

8

Dimensions:

9.27 x 6.35 x 3.3mm

Maximum Operating Supply Voltage:

3.6 V

Height:

3.3mm

Width:

6.35mm

Maximum Operating Temperature:

+85 °C

Minimum Operating Temperature:

-40 °C

Minimum Operating Supply Voltage:

2.7 V

Automotive Standard:

AEC-Q100

Length:

9.27mm
