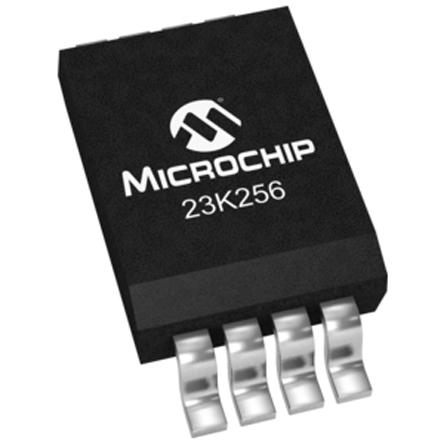

SRAM, 23K256-I/SN- 256kbit

Memory Size:

256kbit

Organisation:

32768 x 8 bit

Number of Words:

32k

Number of Bits per Word:

8bit

Maximum Random Access Time:

25ns

Address Bus Width:

16bit

Clock Frequency:

20MHz

Low Power:

Yes

Timing Type:

Synchronous

Mounting Type:

Surface Mount

Package Type:

SOIC

Pin Count:

8

Dimensions:

4.9 x 3.9 x 1.25mm

Height:

1.25mm

Maximum Operating Supply Voltage:

3.6 V

Minimum Operating Supply Voltage:

2.7 V

Automotive Standard:

AEC-Q100

Maximum Operating Temperature:

+85 °C

Minimum Operating Temperature:

-40 °C

Length:

4.9mm

Width:

3.9mm
