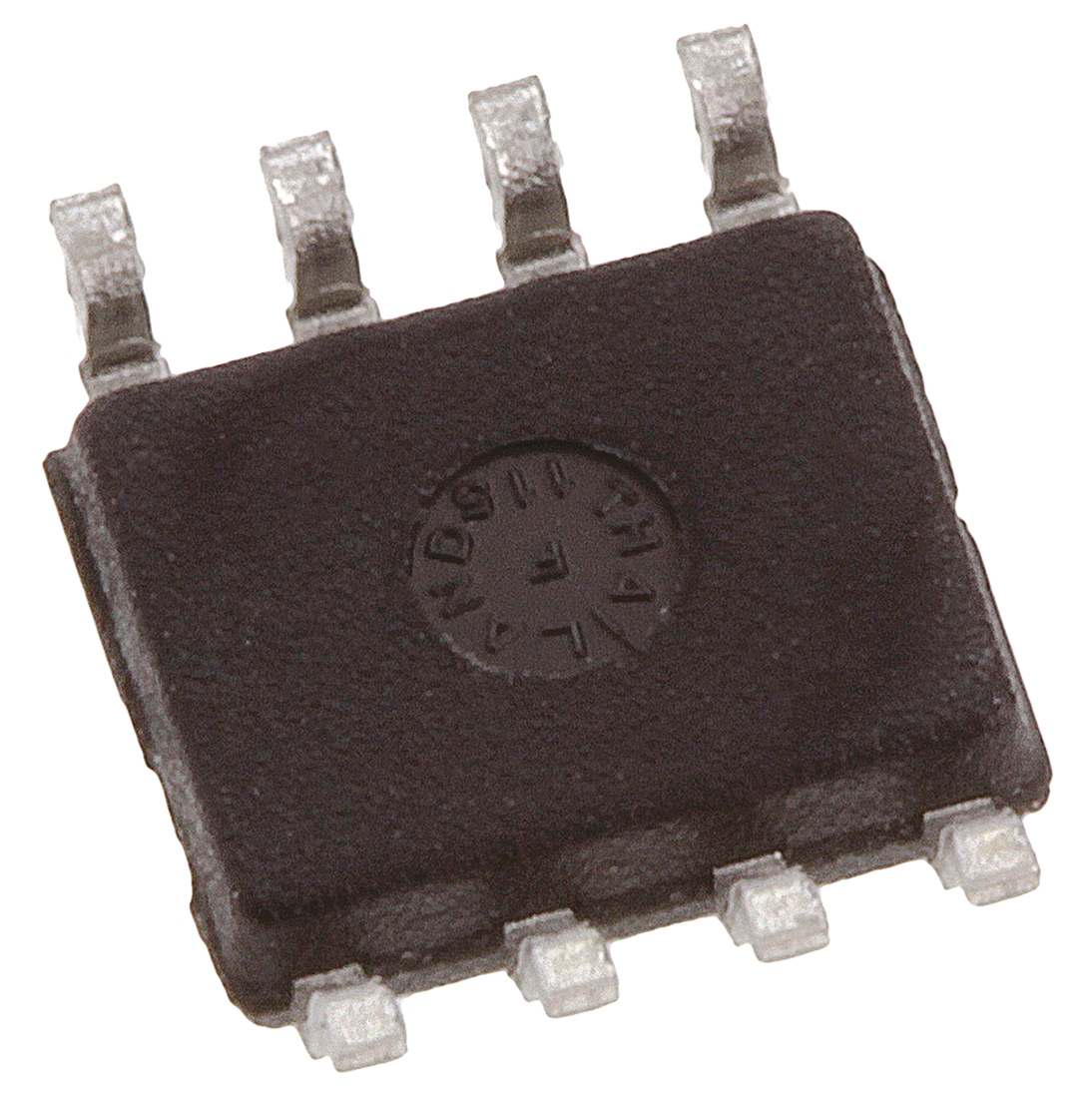

Microchip SRAM, 23LC1024-I/SN- 1Mbit

Manufacturer:
Manufacturer Part No:
23LC1024-I/SN
Enrgtech Part No:
ET14161216
Warranty:
Manufacturer
Checking for live stock
Memory Size:
1Mbit
Organisation:
128k x 8 bit
Number of Words:
128k
Number of Bits per Word:
8bit
Maximum Random Access Time:
5ns
Address Bus Width:
24bit
Clock Frequency:
20MHz
Low Power:
Yes
Timing Type:
Synchronous
Mounting Type:
Surface Mount
Package Type:
SOIC
Pin Count:
8
Dimensions:
4.9 x 3.9 x 1.5mm
Height:
1.5mm
Maximum Operating Supply Voltage:
5.5 V
Length:
4.9mm
Minimum Operating Temperature:
-40 °C
Width:
3.9mm
Minimum Operating Supply Voltage:
2.5 V
Maximum Operating Temperature:
+85 °C
Automotive Standard:
AEC-Q100
pdf icon
Datasheet-8ccc260b(datasheets)
pdf icon
23A1024/23LC1024 1Mbit SPI Serial SRAM with SDI and SQI Interface -df27b2b9(datasheets)
