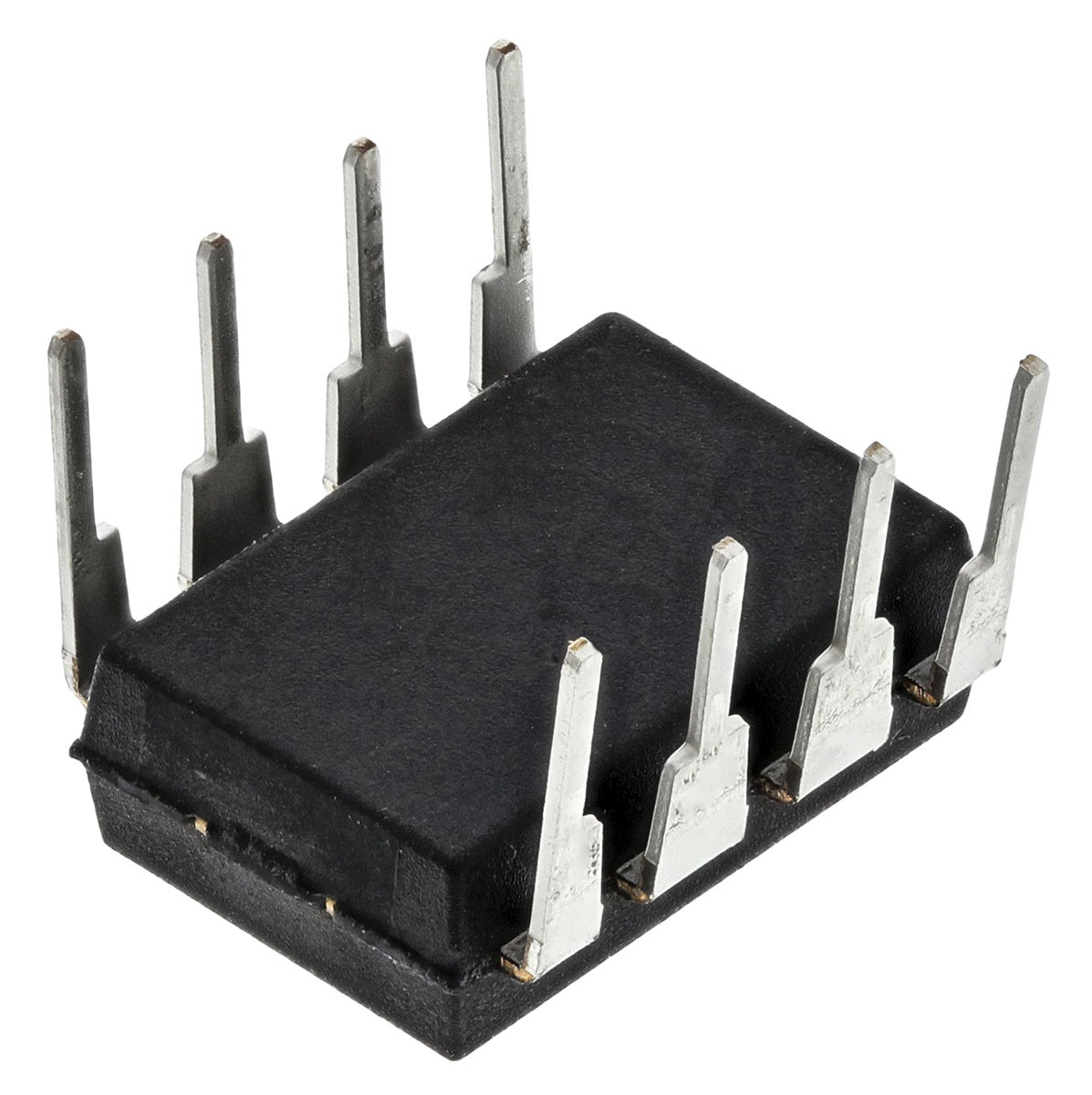

SRAM, 23LCV512-I/P- 512kbit

Memory Size:

512kbit

Organisation:

64k x 8 bit

Number of Words:

64k

Number of Bits per Word:

8bit

Maximum Random Access Time:

5ns

Address Bus Width:

16bit

Clock Frequency:

20MHz

Low Power:

Yes

Timing Type:

Synchronous

Mounting Type:

Through Hole

Package Type:

PDIP

Pin Count:

8

Dimensions:

10.16 x 7.11 x 4.95mm

Maximum Operating Supply Voltage:

5.5 V

Height:

4.95mm

Length:

10.16mm

Maximum Operating Temperature:

+85 °C

Width:

7.11mm

Minimum Operating Supply Voltage:

2.5 V

Minimum Operating Temperature:

-40 °C
