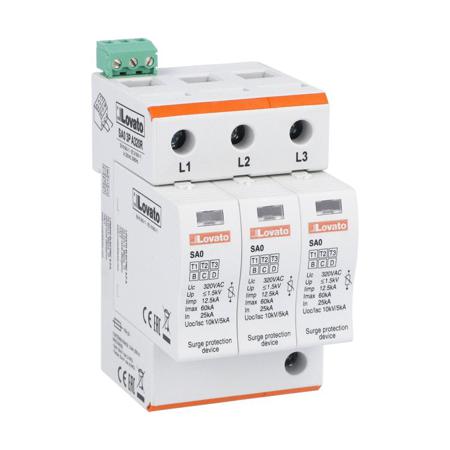

Lovato SA0 Series Surge Protector, 60kA Maximum Surge Current, DIN Rail Mount - SA03PA320R This surge protector is a crucial component for safeguarding electrical systems against surges and voltage spikes. Designed as a DIN rail surge protector, it effectively addresses the risks associated with power fluctuations in industrial settings. With a robust operating temperature range of -40 to 80°C, this device is suited for various environments and applications, ensuring consistent performance under extreme conditions. Features & Benefits • Maximum surge current rated at 60kA for high-level protection
• Voltage protection rating under 1.5kV to mitigate overvoltage
• Single electrical phase design for simplified installation
• Compatible with DIN rail mounting for easy integration
• Operating temperature range of -40 to 80°C for versatile use
• Part of the SA0 surge protection series for consistent reliability Applications • Used in industrial electrical installations
• Applied in automation systems to prevent damage
• Utilised for protecting sensitive electronic equipment
• Suitable for environments with temperature extremes Can it handle extreme temperatures? Yes, it operates effectively from -40°C to 80°C. Will it protect against high voltage spikes? Yes, it has a voltage protection rating of < 1.5kV. Is it easy to install? Yes, it features DIN rail mounting for straightforward installation. Can it be used in single-phase systems? Yes, it is designed for single electrical phase applications.
