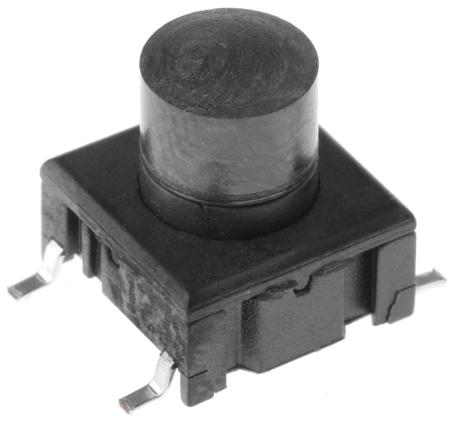

IP67 Black Button Tactile Switch, SPST 50 mA @ 24 V dc 5.9mm PCB

Contact Configuration:

SPST

Terminal Type:

Surface Mount

Switch Operation:

Momentary

Actuator Length:

5.9mm

Actuator Colour:

Black

Actuator Type:

Button

Length:

10.1mm

Width:

10.1mm

Dimensions:

10.1 x 10.1mm

Illuminated:

No

Mounting Type:

PCB

Contact Current Rating:

50 mA @ 24 V dc

IP Rating:

IP67

Height:

11mm

Voltage Rating:

24V dc

Mechanical Life:

10000000Operations

Minimum Operating Temperature:

-40°C

Maximum Operating Temperature:

+160°C

Operating Temperature Range:

-40 → +160°C

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=23539&DisplayLogo=False
