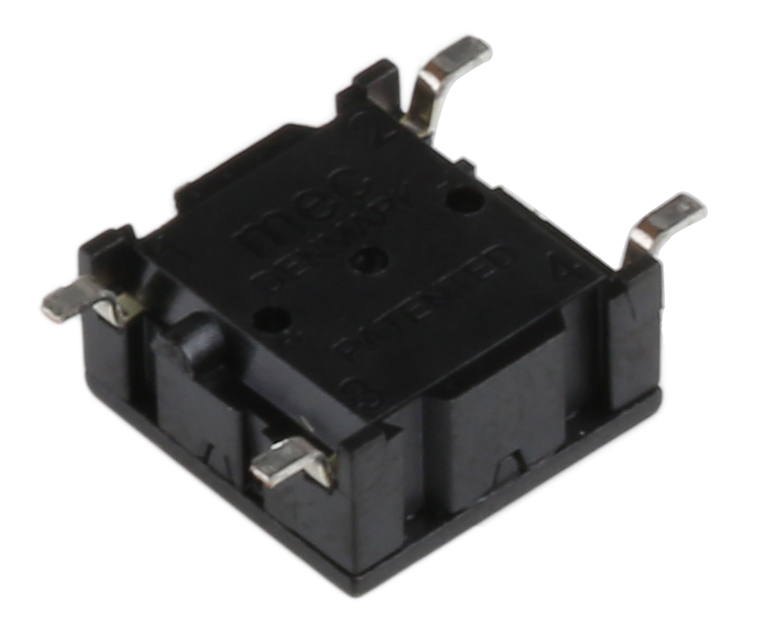

IP67 Button Tactile Switch, SPST 50 mA @ 24 V dc 1.3mm

Contact Configuration:

SPST

Terminal Type:

Surface Mount

Switch Operation:

Momentary

Actuator Length:

1.3mm

Actuator Type:

Button

Length:

10.1mm

Width:

10.1mm

Dimensions:

10.1 x 10.1mm

Illuminated:

No

Contact Current Rating:

50 mA @ 24 V dc

IP Rating:

IP67

Voltage Rating:

24V dc

Height:

6.4mm

Minimum Operating Temperature:

-40°C

Mechanical Life:

10000000Operations

Operating Temperature Range:

-40 → +160°C

Maximum Operating Temperature:

+160°C
