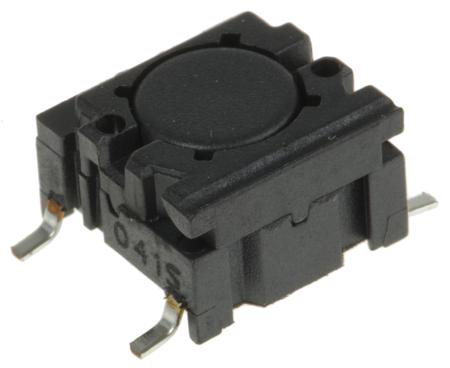

IP67 Plunger Tactile Switch, SPST 50 mA @ 24 V dc PCB

Contact Configuration:

SPST

Terminal Type:

Surface Mount

Switch Operation:

Momentary

Actuator Type:

Plunger

Length:

15.1mm

Width:

15.1mm

Dimensions:

15.1 x 15.1mm

Illuminated:

No

Mounting Type:

PCB

Contact Current Rating:

50 mA @ 24 V dc

IP Rating:

IP67

Operating Force:

2.5 N

Height:

12.2mm

Voltage Rating:

24V dc

Mechanical Life:

10000000Operations

Contact Material:

Gold, Silver

Minimum Operating Temperature:

-40°C

Operating Temperature Range:

-40 → +160°C

Maximum Operating Temperature:

+160°C
