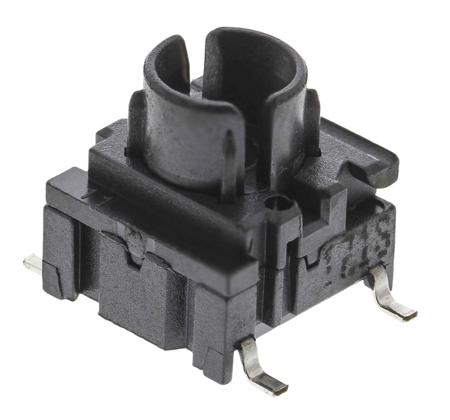

IP67 Plunger Tactile Switch, SPST 50 mA @ 24 V dc

Contact Configuration:

SPST

Terminal Type:

Surface Mount

Switch Operation:

Momentary

Actuator Type:

Plunger

Length:

14mm

Width:

7.62mm

Dimensions:

14 x 7.62mm

Illuminated:

No

Contact Current Rating:

50 mA @ 24 V dc

IP Rating:

IP67

Operating Force:

2.5 N

Height:

10.4mm

Minimum Operating Temperature:

-40°C

Contact Material:

Gold, Silver

Mechanical Life:

10000000Operations

Maximum Operating Temperature:

+160°C

Operating Temperature Range:

-40 → +160°C
