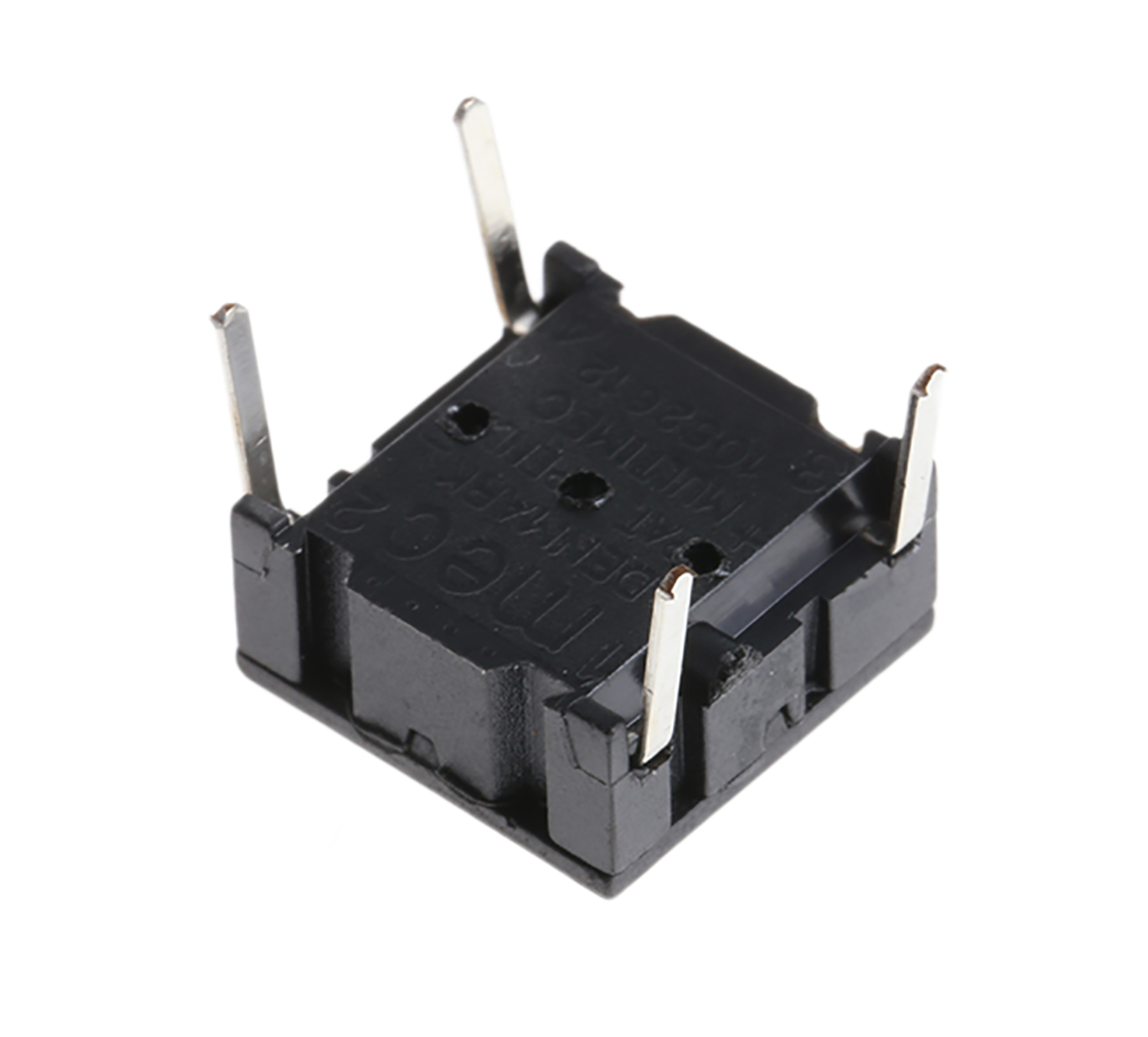

IP67 Tactile Switch, SPST 50 mA @ 24 V dc PCB

Contact Configuration:

SPST

Terminal Type:

Through Hole

Switch Operation:

Momentary

Length:

10mm

Width:

10mm

Dimensions:

10 x 10 x 6.4mm

Illuminated:

No

Mounting Type:

PCB

Contact Current Rating:

50 mA @ 24 V dc

IP Rating:

IP67

Voltage Rating:

24V dc

Height:

6.4mm

Operating Force:

3.5 N

Mechanical Life:

10000000Operations

Operating Temperature Range:

-40 → +160°C

Minimum Operating Temperature:

-40°C

Maximum Operating Temperature:

+160°C
