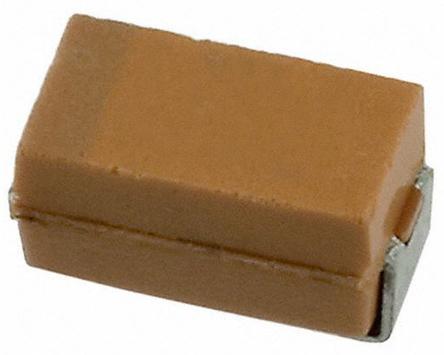

10μF Electrolytic Tantalum Capacitor 16V dc, TAJ Series

Technology:

Electrolytic

Capacitance:

10µF

Voltage:

16V dc

Mounting Type:

Surface Mount

Package/Case:

1206 (3216M)

Equivalent Series Resistance:

3Ω

Lead Pitch:

1.1mm

Tolerance:

±10%

Length:

3.2mm

Depth:

1.6mm

Height:

1.6mm

Dimensions:

3.2 x 1.6 x 1.6mm

Series:

TAJ

Maximum Operating Temperature:

+125°C

Electrolyte Type:

Solid

Terminal Type:

SMT

Dielectric Material Family:

Tantalum

Tolerance Minus:

-10%

Polarised:

Polar

Leakage Current:

1.6 μA

Surge Voltage:

13 V dc @ +125 °C, 20 V dc @ +85 °C

Dissipation Factor:

6%

Minimum Operating Temperature:

-55°C

Tolerance Plus:

+10%
