Tempatron 1/16 DIN On/Off Temperature Controller, 48 x 48mm Relay, 110 → 240 V ac Supply Voltage | TC4810-02-110/240VAC | ET13886787

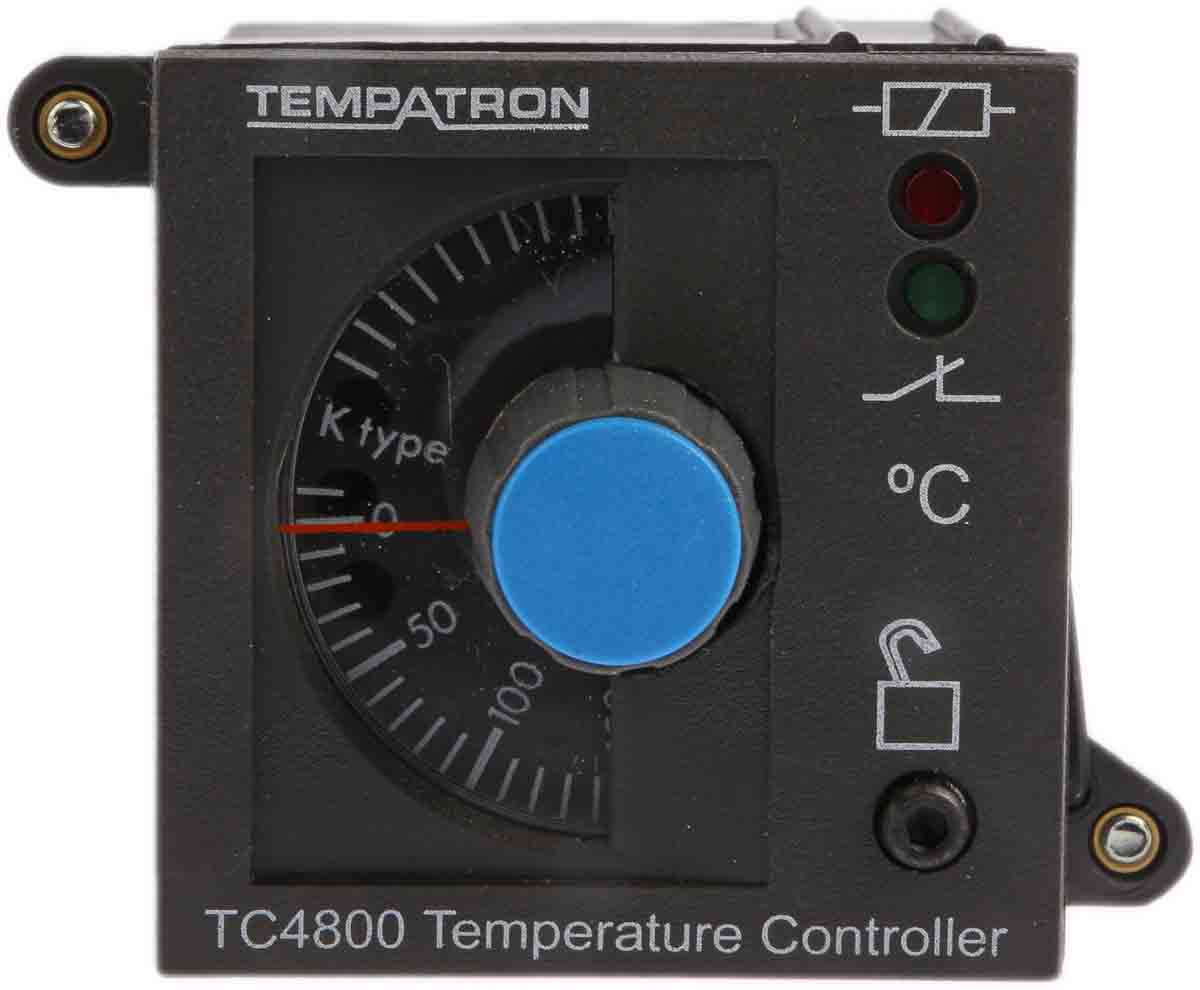

Tempatron Temperature Controller The Tempatron TC4800 series temperature controller has a supply voltage rating ranging from 110VAC to 240VAC. This controller has a length of 48mm and width of 48mm. It is available in ON/OFF, PD (proportional and derivative) and latching versions, designed for simple control of temperature. The controller operates on K type thermocouple input. The controller is housed in a compact DIN48 square enclosure that can be 1/16 DIN rail mount to a socket.
Analogue:
This temperature controller has an operating voltage range of 110/240VAC, an ambient temperature range of -10°C to 50°C and LED status and supply indication. The panel cut out dimensions are 45mm x 45mm. Features and Benefits Scale range is 0°C to 400°C (K type thermocouple)
LED status and supply indication
Use any suitable 50-0-50μA meter for deviation readings
PD types have 'over temperature', 'in-band' and 'under temperature' LED's
Supplied with hex key to lock temperature setting
Reverse or direct action
Relay output
Matching timers and tachometer relays Certifications EN50081-1
EN50082-1 for EMC
EN61010-1
IP40 rated
