Width:
48mm
Length:
96mm
Series:
3200
IP Rating:
IP65
Input Type:
0 to 10 V, Linear: 0 to 80 mV, 0 to 20 mA, 4 to 20 mA, PT100, Custom, Type K Thermocouple
Mount Type:
Panel
Diagnostics:
Heater Open Circuit Detection, Heater Current Monitoring, Partial Load Failure, SSR Faults Detection
Output Type:
Relay
Panel Depth:
90mm
Control Type:
On-Off
Display Type:
4 Digit Green Main, Starburst Lower Display
Product Type:

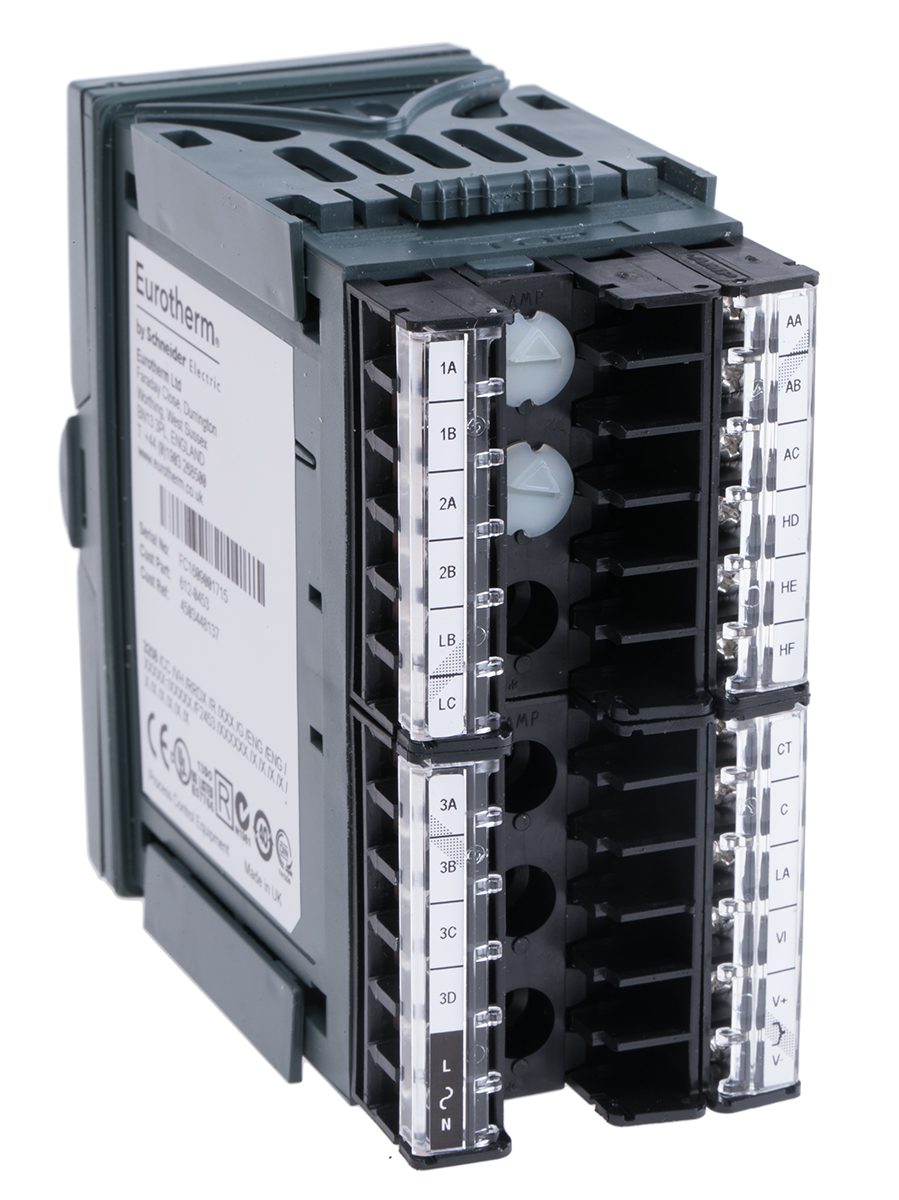

PID Temperature Controller
Digital Comms:
EIA 485, EIA 232, Modbus RTU
Terminal Type:
Screw
Maximum Current:
100A
Maximum Voltage:
264V ac
Number of Outputs:
4
Standards/Approvals:
cUL (file E57766), CE, DIN 3440 (3216 only), GOST
Maximum Supply Voltage:
264V ac
Maximum Operating Temperature:
55°C
Minimum Operating Temperature:
0°C
