EPack - Compact SCR Power Controller EPack power controller is a compact fully featured power controller, combining a high level of functionality and configurability with simplicity of setup and operation. The combination of advanced configurable firing modes allows close matching to load characteristics for maximum process efficiency. EPack is highly configurable and may be adapted for current and future needs using a software key to purchase additional functionality when needed. Nominal load current from 32A (Stock-no.:<a href="/web/p/products/7903619"> 790-3619</a> & <a href="/web/p/products/8006716">800-6716</a>) and 63A (Stock-no.: <a href="/web/p/products/7903612">790-3612</a> & <a href="/web/p/products/8006725">800-6725</a>)<BR/>24V & 500V versions available<BR/>Analogue input signal (voltage and current)<BR/>High definition 1.5" TFT display<BR/>Configurable via iTools (PC software) or front panel<BR/>V², I² or true power control<BR/>Energy usage measurement<BR/>Advanced load diagnostics<BR/>Integrated dual port Ethernet switch for &#147;daisy chained&#148; communications<BR/>Plug and play Ethernet communications with Zero configuration networking<BR/>Modbus® TCP protocol<BR/>Compact DIN Rail and bulkhead Mounting Format

Eurotherm Chart recorder The Eurotherm NANODAC is a 4-channel paperless videographic chart recorder used to measure the current, millivolt, voltage, resistance and temperature. This is a paperless recorder with an operating voltage of 24VDC/VAC. The compact DIN panel mount unit offers four high accuracy universal inputs for data recording and PID control. The 3.5in TFT display offers incredibly clear visualisation of process parameters with a wide selection of configurable views to best suit the application. The views include horizontal and vertical trends, horizontal and vertical bar graphs, numeric, alarm panel, alarm status, and control loops. This unit also provides user wiring from the front of the product for detailed configuration without the need to connect to a PC. Features and Benefits 30 virtual channels<BR/>50MB flash memory<BR/>Cascade with auto tune<BR/>Easy network integration to control system with Ethernet and MODBUS TCP/IP slave (default)<BR/>Secure data recording<BR/>3.5in VGA crystal clear display<BR/>Steriliser and relative humidity application block<BR/>USB removable data storage facility<BR/>High accuracy universal inputs<BR/>1/4 DIN panel mount<BR/>Wash down front<BR/>Multi-language (English, French, German, Italian and Spanish)<BR/>1/4DIN panel mount<BR/>Logic/Relay/Relay output Certifications IP10 rated<BR/>IP65 rated <BR/>IP66 rated

Eurotherm Chart Recorder The Eurotherm NANODAC is a 4-channel paperless videographic chart recorder used to measure the current, millivolt, voltage, resistance, temperature. This is a paperless recorder with operating voltage that ranges between 100Vac and 230Vac. The compact DIN panel mount unit offers four high accuracy universal inputs for data recording and PID control. The 3.5in TFT display offers incredibly clear visualisation of process parameters with a wide selection of configurable views to best suit the application. The views include horizontal and vertical trends, horizontal and vertical bar graphs, numeric, alarm panel, alarm status, and control loops. This unit also provides user wiring from the front of the product for detailed configuration without the need to connect to a PC. It is used to monitor and measure current, millivolt, resistance, temperature and voltage. Features and Benefits 30 virtual channels<BR/>50MB flash memory<BR/>Cascade with auto tune<BR/>Easy network integration to control system with Ethernet and MODBUS TCP/IP slave (default)<BR/>Secure data recording<BR/>3.5in VGA crystal clear display<BR/>Steriliser and relative humidity application block<BR/>USB removable data storage facility<BR/>High accuracy universal inputs<BR/>1/4 DIN panel mount<BR/>Wash down front<BR/>Multi-language (English, French, German, Italian and Spanish)<BR/>1/4DIN panel mount<BR/>Logic/Relay/Relay output Certifications IP10 rated<BR/>IP65 rated<BR/>IP66 rated

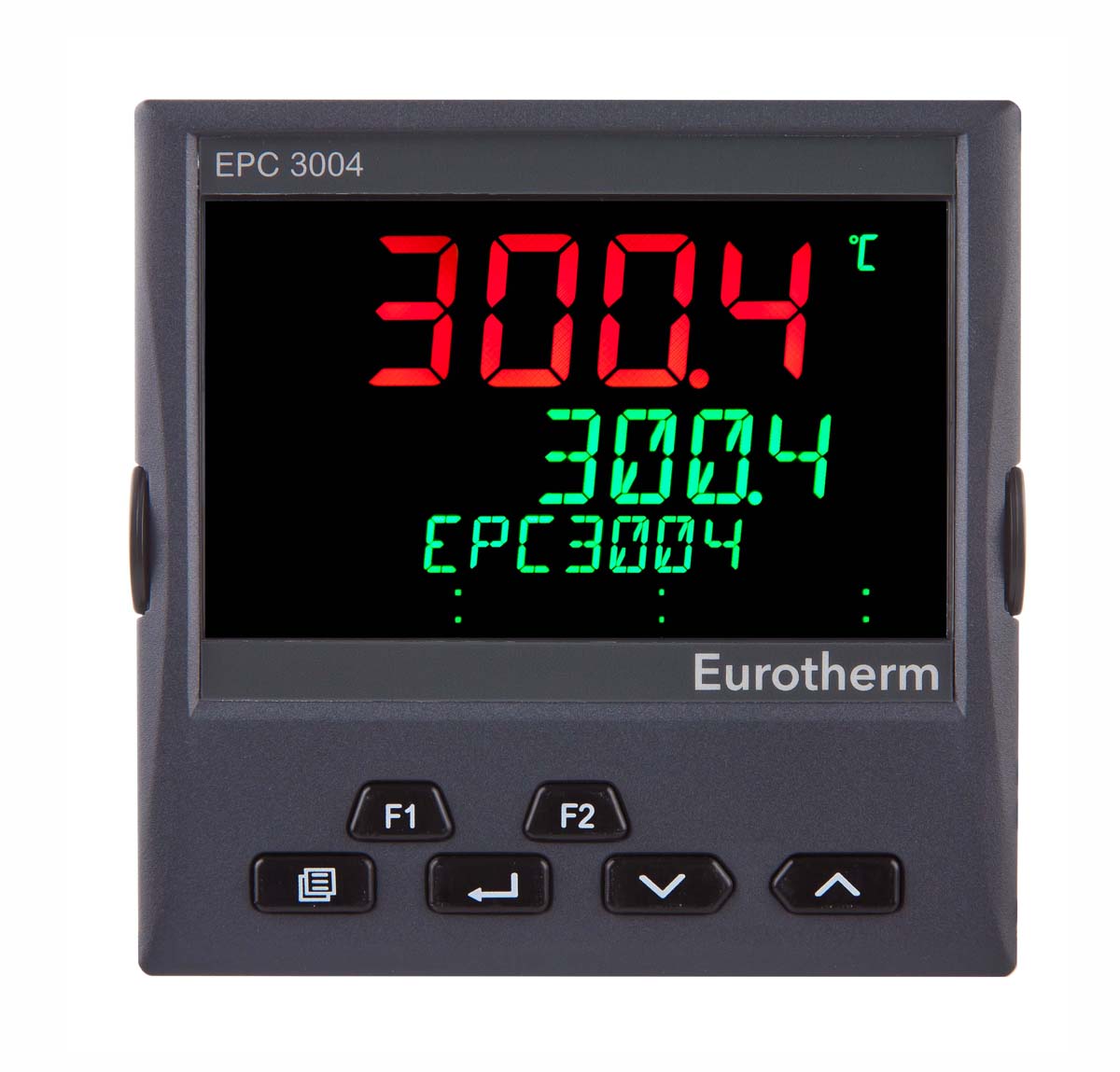

EPC3004 PID Temperature Controller The EPC3004 programmable temperature controller maximizes efficiency and repeatability and is certified for cybersecurity communication robustness. The controllers combine industry leading control and measurement performance with ease of use, while remaining highly flexible. The EPC3004 has a visible 3-colour display with natural language status and alarm indications and is clear and easy to use. <B>Features and Benefits</B> High visibility customizable display<BR/>96 x 96 mm size<BR/>Precision loop controller with cybersecurity function<BR/>Precise (0.1%) universal inputs with 50ms sample rate<BR/>Highly durable, battery-free design and extended service life<BR/>Exceptional thermal stability<BR/>Fast PID response with minimal overshoot and oscillation<BR/>Direct Ethernet RJ45 connection certified to Achilles® CRT level 1<BR/>Quick code setup with application templates<BR/>User function block wiring including math, logic and totalizer<BR/>Extensive range of international approvals<BR/>Free PC based backup and configuration tool uses USB connection for convenient desktop configuration

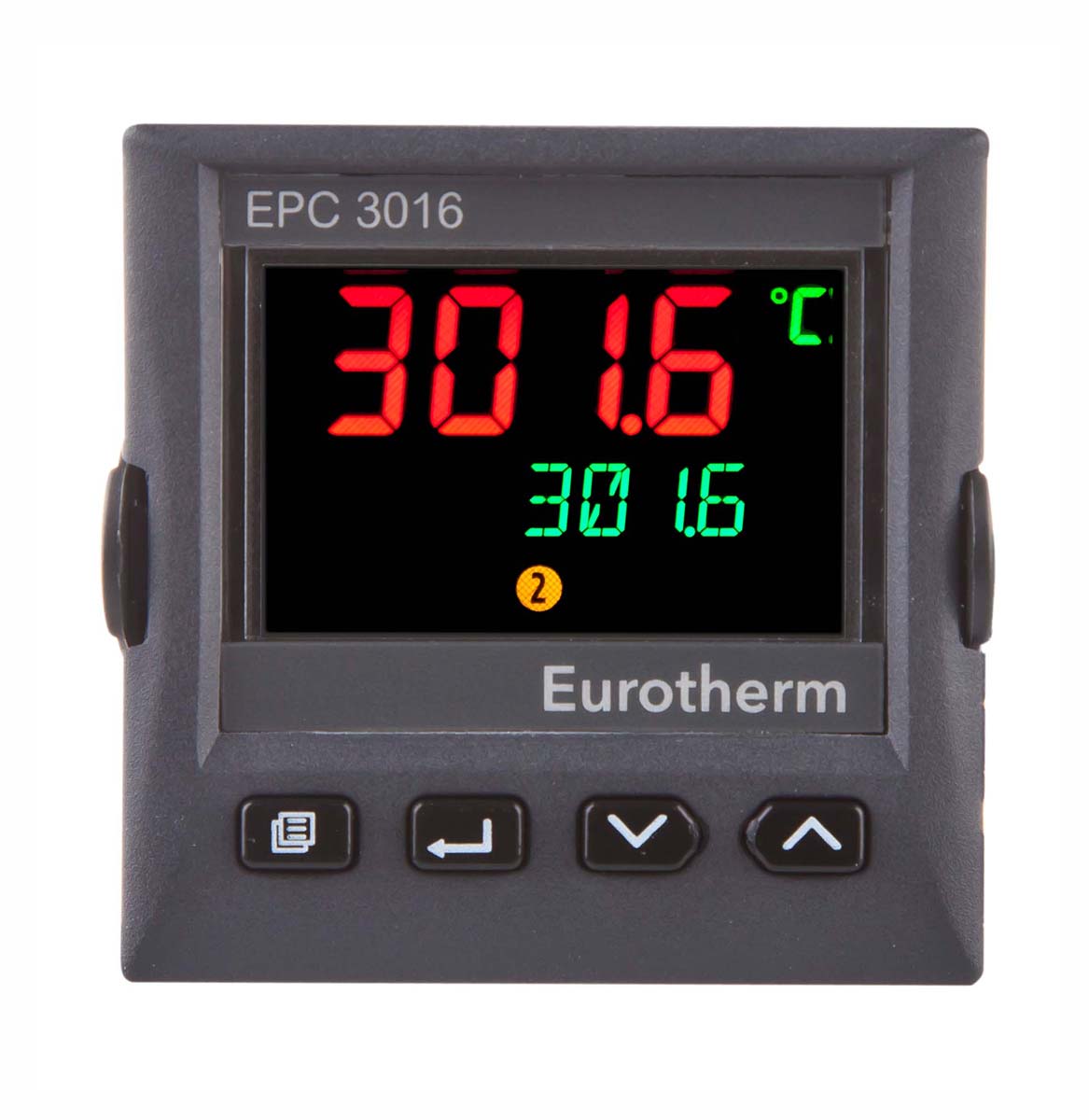

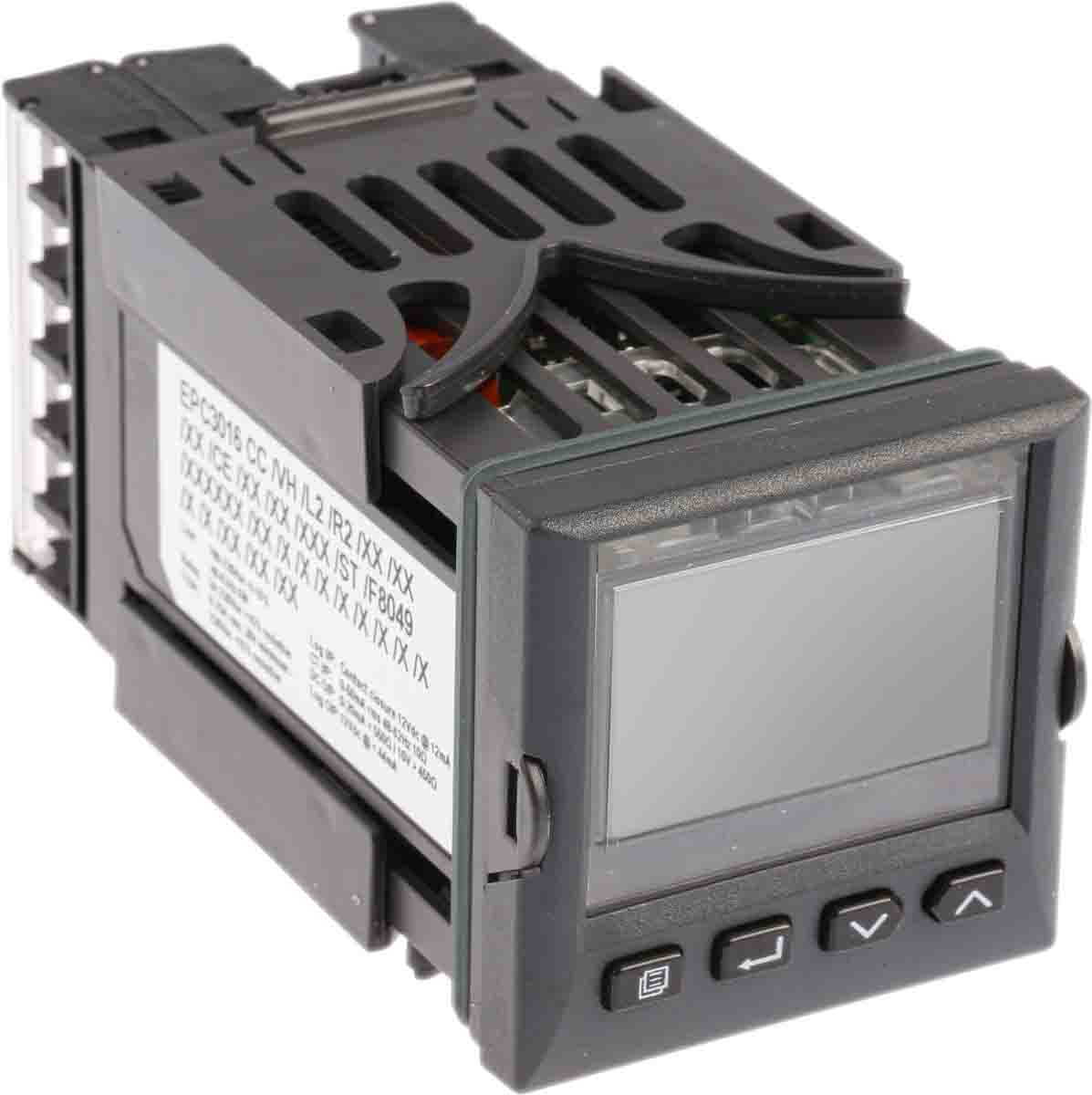

EPC3016 PID Temperature Controller The EPC3016 programmable temperature controller maximizes efficiency and repeatability and is certified for cybersecurity communication robustness. The controllers combine industry leading control and measurement performance with ease of use, while remaining highly flexible. The EPC3016 has a visible 3-colour display with natural language status and alarm indications and is clear and easy to use. <B>Features and Benefits</B> High visibility customizable display 48 x 48 mm size Precision loop controller with cybersecurity function Precise (0.1%) universal inputs with 50ms sample rate Highly durable, battery-free design and extended service life Exceptional thermal stability Fast PID response with minimal overshoot and oscillation Quick code setup with application templates User function block wiring including math, logic and totalizer Extensive range of international approvals Free PC based backup and configuration tool uses USB connection for convenient desktop configuration

EPC3016 PID Temperature Controller The EPC3016 programmable temperature controller maximizes efficiency and repeatability and is certified for cybersecurity communication robustness. The controllers combine industry leading control and measurement performance with ease of use, while remaining highly flexible. The EPC3016 has a visible 3-colour display with natural language status and alarm indications and is clear and easy to use. <B>Features and Benefits</B> High visibility customizable display 48 x 48 mm size Precision loop controller with cybersecurity function Precise (0.1%) universal inputs with 50ms sample rate Highly durable, battery-free design and extended service life Exceptional thermal stability Fast PID response with minimal overshoot and oscillation Quick code setup with application templates User function block wiring including math, logic and totalizer Extensive range of international approvals Free PC based backup and configuration tool uses USB connection for convenient desktop configuration

EPC3016 PID Temperature Controller The EPC3016 programmable temperature controller maximizes efficiency and repeatability and is certified for cybersecurity communication robustness. The controllers combine industry leading control and measurement performance with ease of use, while remaining highly flexible. The EPC3016 has a visible 3-colour display with natural language status and alarm indications and is clear and easy to use. <B>Features and Benefits</B> High visibility customizable display 48 x 48 mm size Precision loop controller with cybersecurity function Precise (0.1%) universal inputs with 50ms sample rate Highly durable, battery-free design and extended service life Exceptional thermal stability Fast PID response with minimal overshoot and oscillation Quick code setup with application templates User function block wiring including math, logic and totalizer Extensive range of international approvals Free PC based backup and configuration tool uses USB connection for convenient desktop configuration

EPC3016 PID Temperature Controller The EPC3016 programmable temperature controller maximizes efficiency and repeatability and is certified for cybersecurity communication robustness. The controllers combine industry leading control and measurement performance with ease of use, while remaining highly flexible. The EPC3016 has a visible 3-colour display with natural language status and alarm indications and is clear and easy to use. <B>Features and Benefits</B> High visibility customizable display 48 x 48 mm size Precision loop controller with cybersecurity function Precise (0.1%) universal inputs with 50ms sample rate Highly durable, battery-free design and extended service life Exceptional thermal stability Fast PID response with minimal overshoot and oscillation Quick code setup with application templates User function block wiring including math, logic and totalizer Extensive range of international approvals Free PC based backup and configuration tool uses USB connection for convenient desktop configuration

Eurotherm Temperature Controller The Eurotherm P116 series temperature controller has a two relay output and one changeover relay output. This offers precision PID control of temperature and other processes with many advanced features not normally found in this class of controllers. This controller has a width of 48mm and a height of 48mm 1/16DIN. It is designed to offer outstanding performance in an affordable package providing a complete solution for a wide variety of applications. The controller has an operating supply of 85VAC to 264VAC. Features and Benefits Analogue retransmission<BR/>Configuration adaptor<BR/>Digital setpoint retransmission<BR/>Easy access to parameterization and operation<BR/>Energy usage estimation<BR/>Heater failure detection<BR/>High reliability and quality<BR/>High visibility three colour LED display<BR/>iTools Wizard<BR/>Overshoot elimination<BR/>Ramp-soak timer and soft start<BR/>Recovery point "undo" function<BR/>Simplified and customisable operator HMI<BR/>Wipedown front fascia Applications Food and Beverage<BR/>Furnaces and Ovens<BR/>Incubators<BR/>Laboratory equipment<BR/>Plastics Extrusion<BR/>Precision PID controller Certifications BS EN61010<BR/>BS EN61326<BR/>CE certified<BR/>IP65 rated

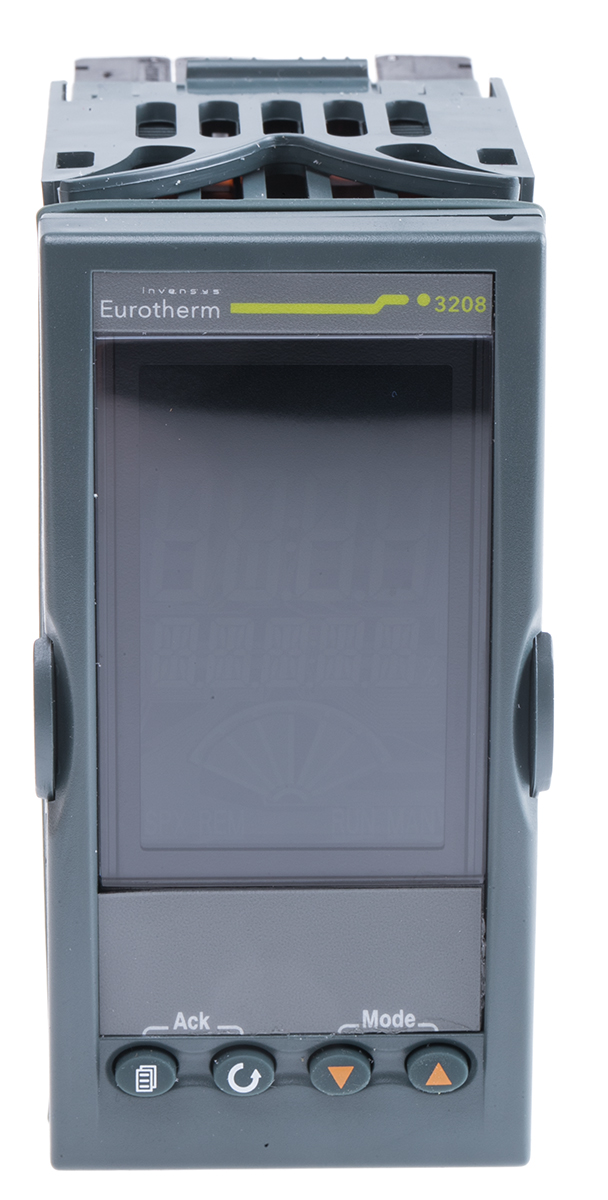

3208 1/8 DIN Temperature / Process Controllers Safety Messaging and 7 segment universal meter for simple visual indication of the process status<BR/>Up to 4 Outputs (depending on model): Logic I/O, Relay and Analogue can provide any combination of heat, cool or alarm<BR/>1 off Digital Input for alarm acknowledge etc<BR/>Universal Inputs -B, J, K, L, N, R, S, T, C, PT100, 0-80mV, 0-20mA, 4-20mA<BR/>Supply voltage: 85 to 264Vac<BR/>Dimensions: H96 x W48 x D90mm

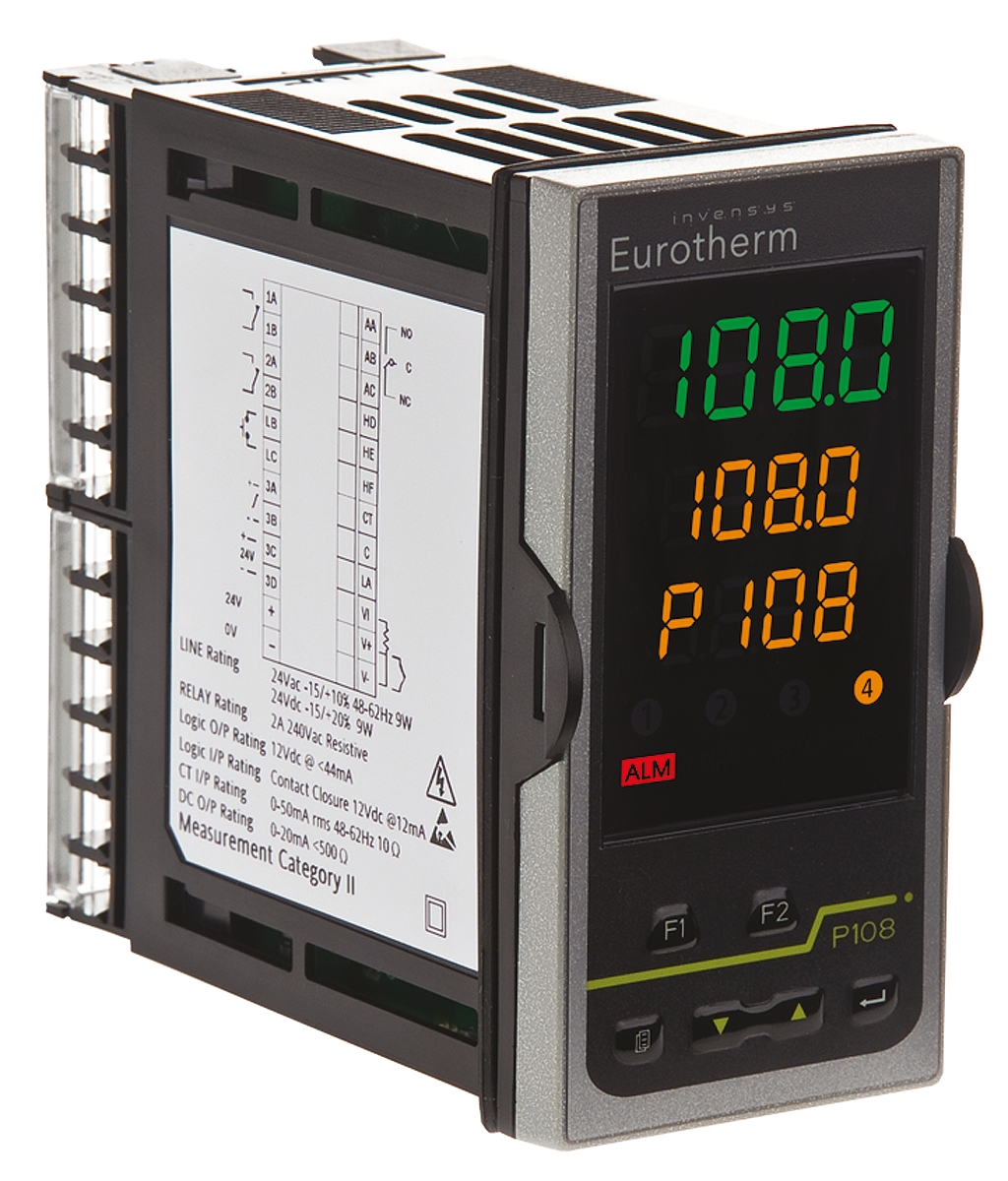

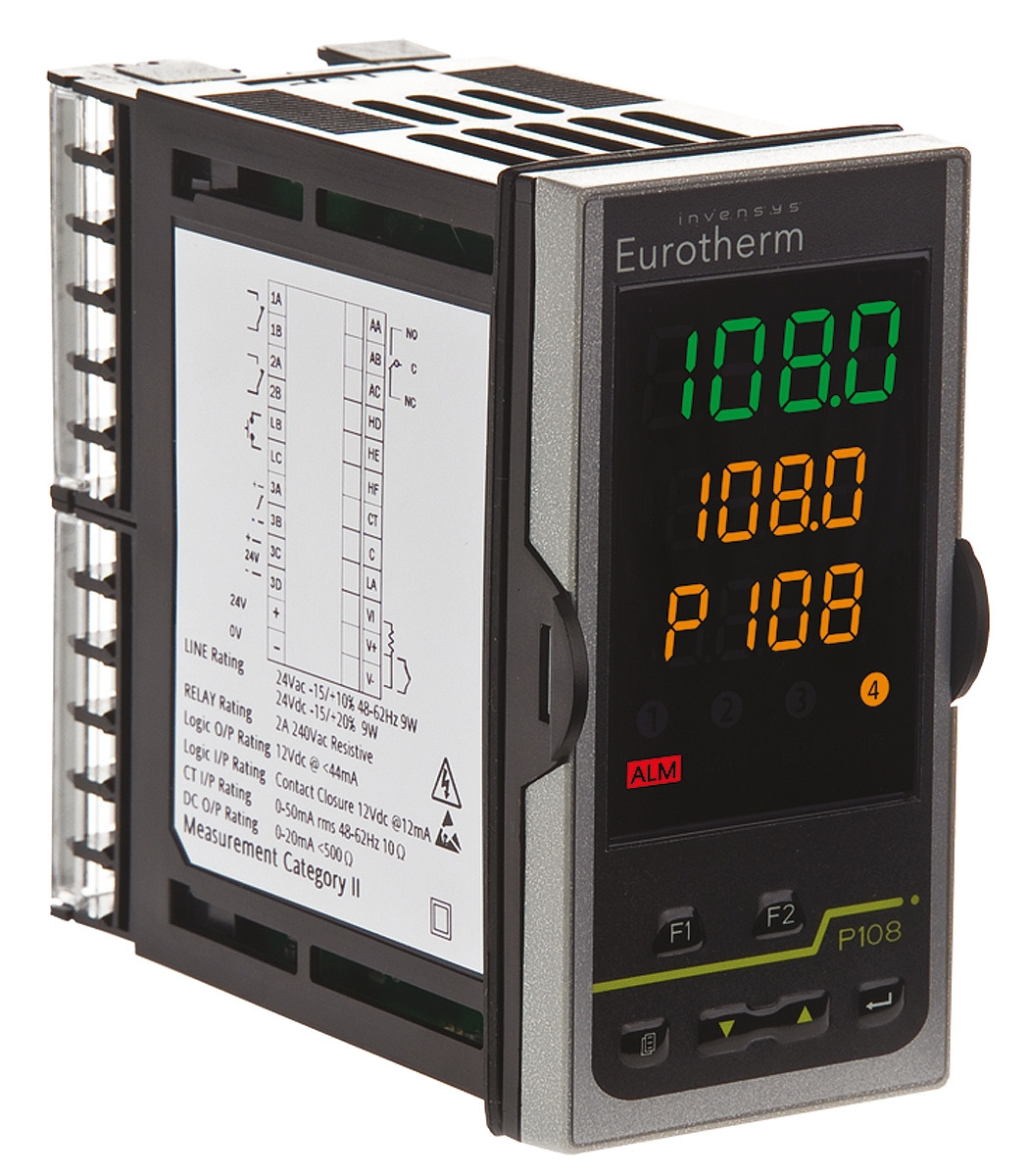

P108 - Temperature/-Process Controllers 48x96mm piccolo^TM P108 series controllers offer precision PID control of temperature and other processes with many advanced features not normally found in this class of controllers.<BR/>Designed to offer outstanding performance in an affordable package providing a complete solution for a wide variety of applications. Precision PID control, 48x96mm<BR/>Simplified and customisable operator HMI<BR/>High visibility three colour LED display<BR/>Wipedown front fascia<BR/>Easy access to parameterization and operation<BR/>High reliability and quality<BR/>Ramp-soak timer and soft start<BR/>Overshoot elimination<BR/>Energy usage estimation<BR/>Heater failure detection<BR/>Digital setpoint retransmission<BR/>Analogue retransmission<BR/>Recovery point &#147;undo&#148; function<BR/>Configuration adaptor<BR/>iTools Wizard

P304c Melt Pressure Indicator / Controller Eurotherm Piccolo P304c PID melt pressure controller & indicator is the ideal solution to plastic processing thanks to the comprehensive range of hardware options. The P304c provides a cost-effective package for a wide variety of pressure sensors. Custom, dual line 5 digit display accompanied by a horizontal bar graph gives complete process visibility 1/4 DIN mounting<BR/>Precision PID control with responsive overshoot inhibit<BR/>50ms sample rate for fast-acting control<BR/>Alarm functionality<BR/>Supports Modbus RTU communication<BR/>Easy & effective auto-tune<BR/>Comprehensive configuration via iTools PC software, with parametering monitoring & datalogging facility<BR/>Tri-Colour LED display for high visibility
