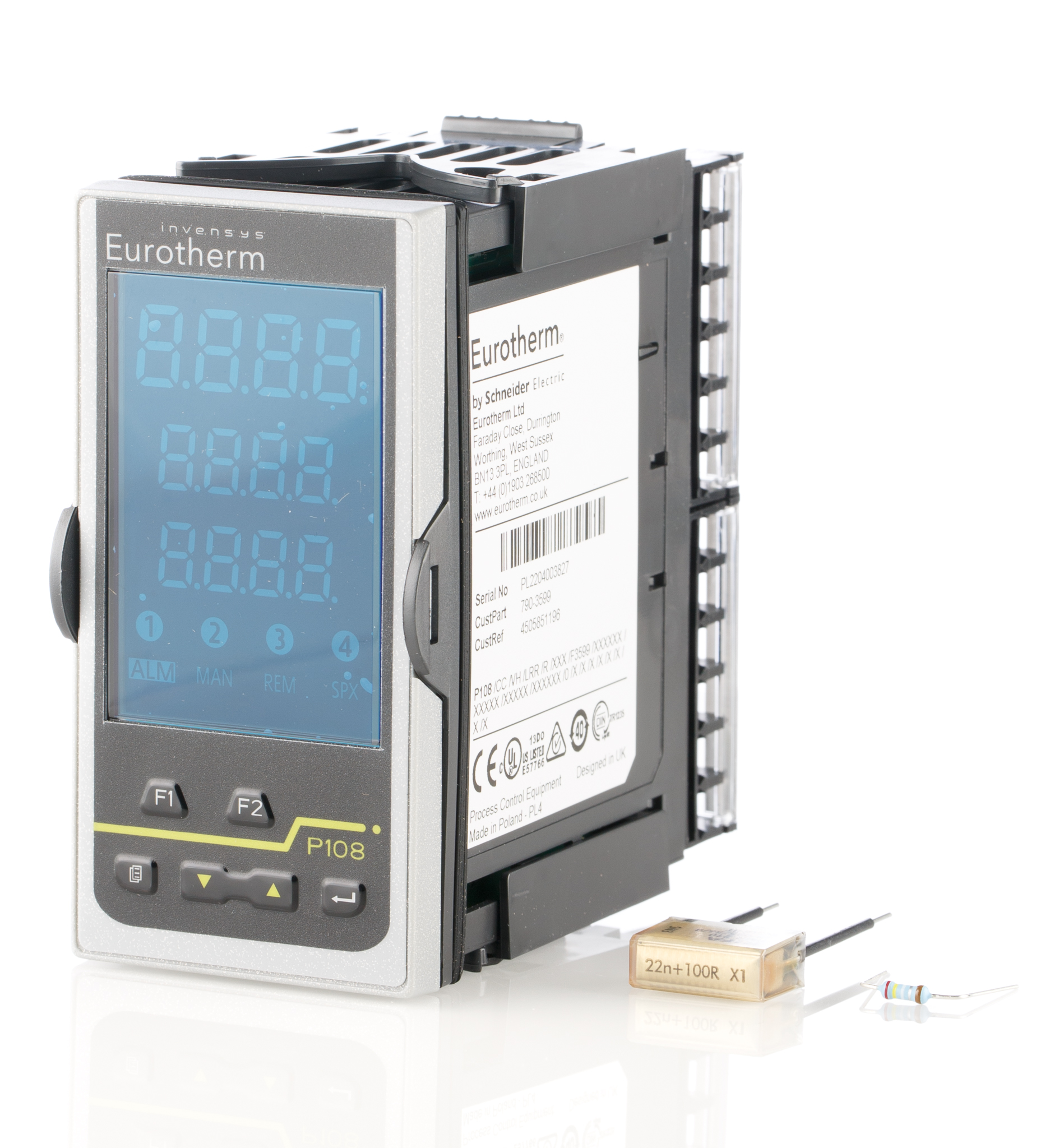

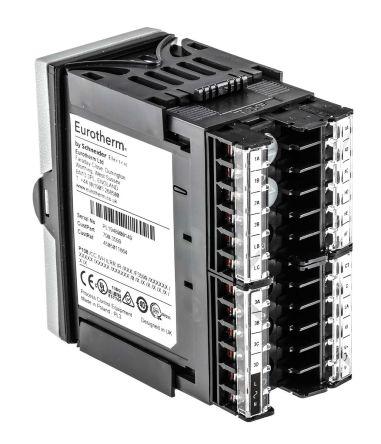

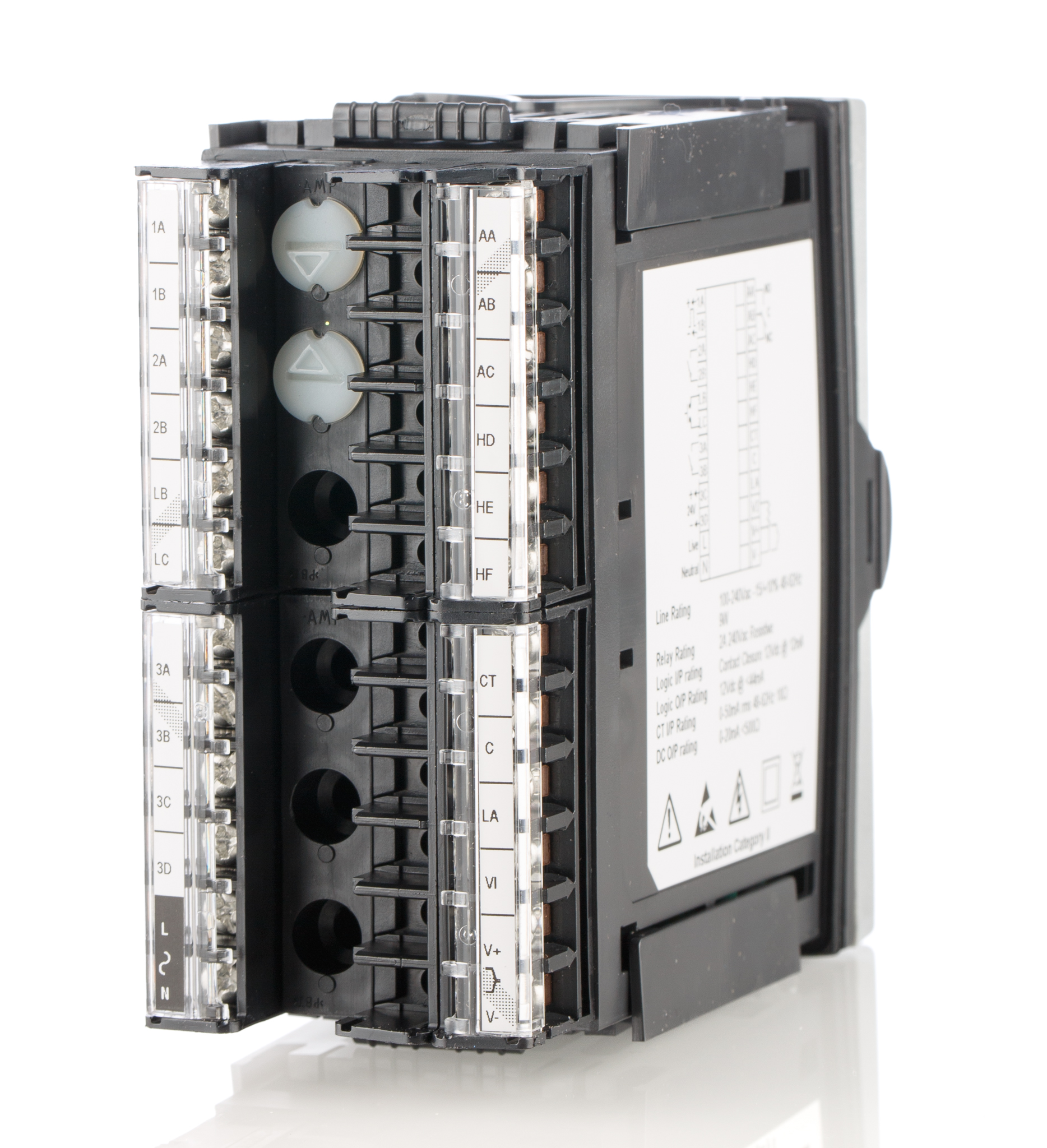

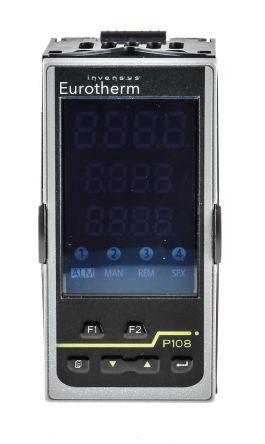

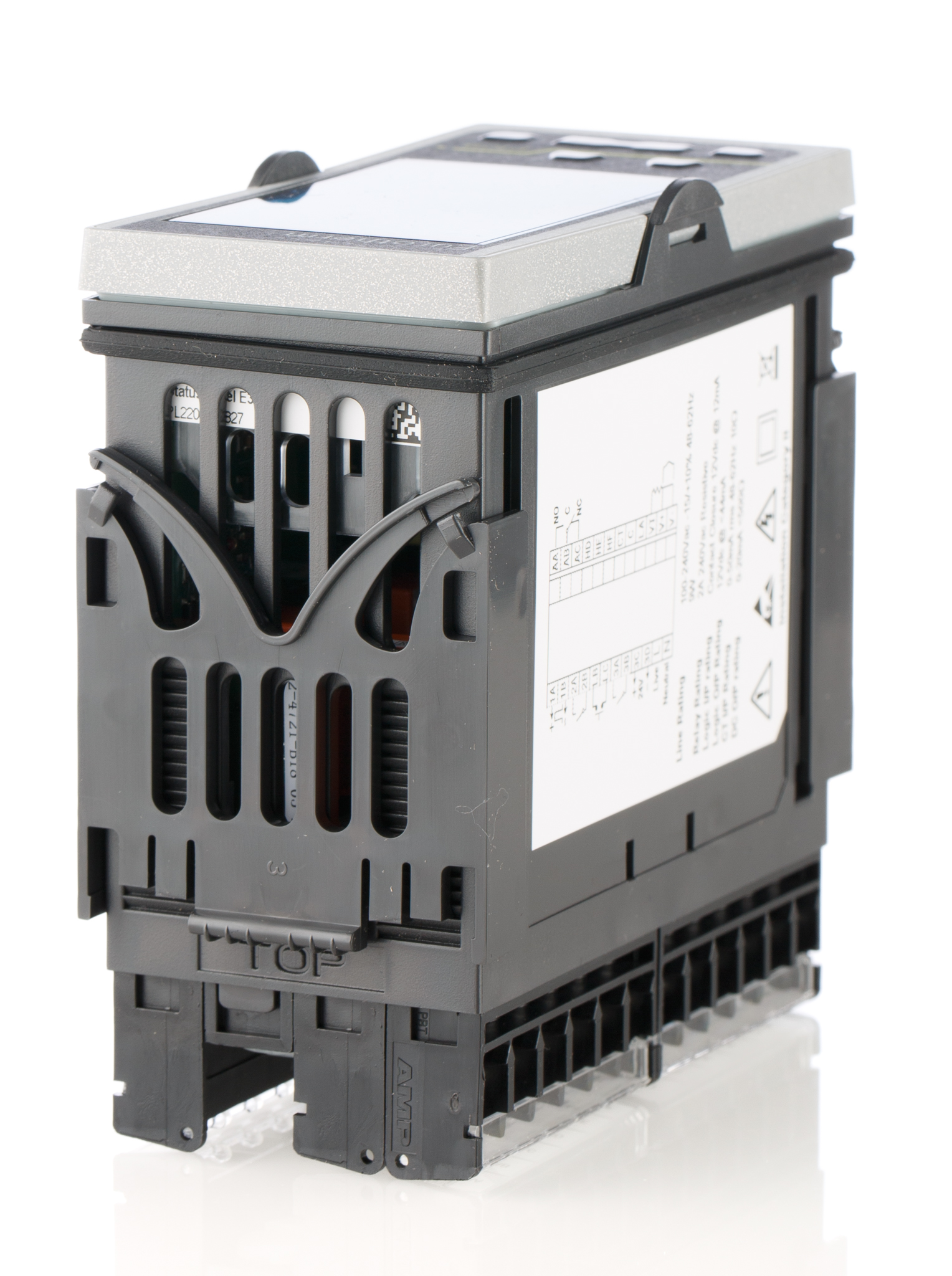

p108-cc-vh-lrr Eurotherm P108 PID Temperature Controller, 48 x 96mm, 3 Output Logic, Relay, P108/CC/VH/LRR, 100 → 230 V ac Supply Voltage
p108-cc-vh-lrr Eurotherm P108 PID Temperature Controller, 48 x 96mm, 3 Output Logic, Relay, P108/CC/VH/LRR, 100 → 230 V ac Supply Voltage
p108-cc-vh-lrr Eurotherm P108 PID Temperature Controller, 48 x 96mm, 3 Output Logic, Relay, P108/CC/VH/LRR, 100 → 230 V ac Supply Voltage
p108-cc-vh-lrr Eurotherm P108 PID Temperature Controller, 48 x 96mm, 3 Output Logic, Relay, P108/CC/VH/LRR, 100 → 230 V ac Supply Voltage
p108-cc-vh-lrr Eurotherm P108 PID Temperature Controller, 48 x 96mm, 3 Output Logic, Relay, P108/CC/VH/LRR, 100 → 230 V ac Supply Voltage
p108-cc-vh-lrr Eurotherm P108 PID Temperature Controller, 48 x 96mm, 3 Output Logic, Relay, P108/CC/VH/LRR, 100 → 230 V ac Supply Voltage
p108-cc-vh-lrr Eurotherm P108 PID Temperature Controller, 48 x 96mm, 3 Output Logic, Relay, P108/CC/VH/LRR, 100 → 230 V ac Supply Voltage
p108-cc-vh-lrr Eurotherm P108 PID Temperature Controller, 48 x 96mm, 3 Output Logic, Relay, P108/CC/VH/LRR, 100 → 230 V ac Supply Voltage

P108 - Temperature/-Process Controllers 48x96mm piccoloTM P108 series controllers offer precision PID control of temperature and other processes with many advanced features not normally found in this class of controllers.Designed to offer outstanding performance in an affordable package providing a complete solution for a wide variety of applications. Precision PID control, 48x96mmSimplified and customisable operator HMIHigh visibility three colour LED displayWipedown front fasciaEasy access to parameterization and operationHigh reliability and qualityRamp-soak timer and soft startOvershoot eliminationEnergy usage estimationHeater failure detectionDigital setpoint retransmissionAnalogue retransmissionRecovery point undo functionConfiguration adaptoriTools WizardEurotherm - Series piccolo

RoHs Compliant

Eurotherm P108 PID Temperature Controller, 48 x 96mm, 3 Output Logic, Relay, P108/CC/VH/LRR, 100 → 230 V ac Supply Voltage

Manufacturer:
Eurotherm
Manufacturer Part No:
P108/CC/VH/LRR
Enrgtech Part No:
ET16813984
Warranty:
Manufacturer
£ 200.05
Checking for live stock
Number of Outputs:
3
Display Type:
LED
Display Colour:
Amber, Green
Minimum Operating Temperature:
0°C
IP Rating:
IP66
Series:
Piccolo P108
Panel Depth:
90mm
Output Type:
Logic, Relay
Range:
Piccolo P108
Communication Module Available:
Yes
Supply Voltage:
100 → 230 V ac
Additional Functionality:
ON/OFF
Temperature Range:
0 → +1820 (Type B Thermocouple) °C, -200 → +1300 (Type N Thermocouple) °C, -200 → +1372 (Type K Thermocouple) °C, -200 → +400 (Type T Thermocouple) °C, -200 → +850 (Pt100 RTD) °C, -200 → +900 (Type L Thermocouple) °C, -210 → +1200 (Type J Thermocouple) °C, -50 → +1700 (Type R Thermocouple) °C, -50 → +1768 (Type S Thermocouple) °C
Maximum Operating Temperature:
+55°C
Size:
48 x 96mm
pdf icon
Piccolo P116 P108 P104 - Quick Start Guide_UK_FR_DE(Technical Reference)
pdf icon
User Manual - Eurotherm Piccolo™(Technical Reference)
pdf icon
Piccolo P116 P108 P104 - Brochure(Technical Reference)
pdf icon
Piccolo P116 P108 P104 - Data Sheet(Technical Reference)
pdf icon
Piccolo P116 P108 P104 - User Manual(Technical Reference)
